ELITEGROUP COMPUTER SYSTEMS, INC.
ME5PI-S
|
Processor |
Pentium |
|
Processor Speed |
50/60/66MHz |
|
Chip Set |
Intel |
|
Max. Onboard DRAM |
192MB |
|
Cache |
256/512KB |
|
BIOS |
Award |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
SCSI connector, 32-bit PCI slots (3) |
|
NPU Options |
None |
|

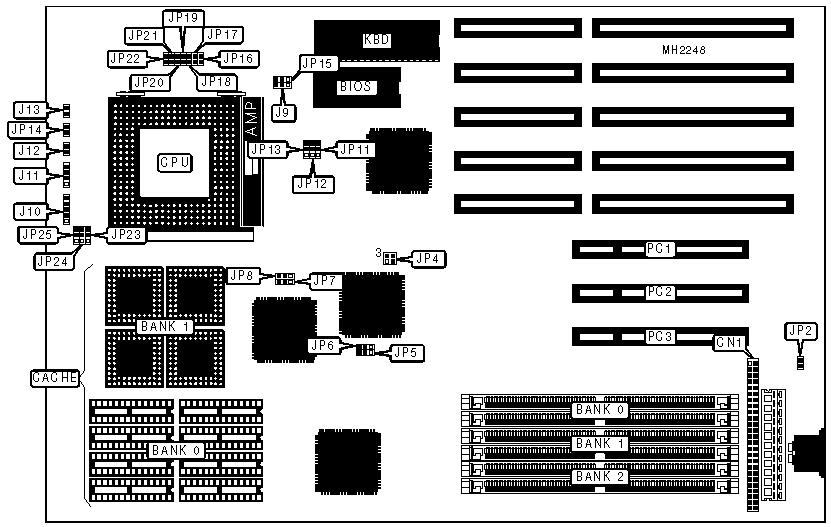

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
SCSI connector |
CN1 |
Turbo LED |
J13 |
|
Power LED & keylock |
J10 |
SCSI LED |
JP14 |
|
Speaker |
J11 |
32-bit PCI bus slots |
SL1 - SL3 |
|
Reset switch |
J12 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
|
» |
Monitor type select color |
J9 |
pins 2 & 3 closed |
|
Monitor type select monochrome |
J9 |
pins 1 & 2 closed | |
|
» |
Factory configured - do not alter |
JP1 |
Open |
|
» |
TERMPWR select internal |
JP2 |
Closed |
|
TERMPWR select external |
JP2 |
Open | |
|
» |
Factory configured - do not alter |
JP3 |
Open |
|
» |
Cache parity not supported |
JP4 |
pins 1 & 2, 3 & 4 closed |
|
Cache parity supported |
JP4 |
pins 1 & 3, 2 & 4 closed | |
|
» |
BIOS type select EPROM |
JP15 |
pins 2 & 3 closed |
|
BIOS type select flash |
JP15 |
pins 1 & 2 closed | |
|
» |
Factory configured - do not alter |
JP16 |
Open |
|
» |
PCMC monitor CPU parity check disabled |
JP20 |
Open |
|
PCMC monitor CPU parity check enabled |
JP20 |
Closed | |
|
» |
CPU NA signal not supported |
JP21 |
Open |
|
CPU NA signal supported |
JP21 |
Closed | |
|
» |
CPU cache mode select write back |
JP22 |
Open |
|
CPU cache mode select write through |
JP22 |
Closed | |
|
Note: The location of JP1 & JP3 are unknown. | |||
|
DRAM CONFIGURATION | |||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
|
2MB |
(2) 256K x 36 |
NONE |
NONE |
|
4MB |
(2) 256K x 36 |
(2) 256K x 36 |
NONE |
|
6MB |
(2) 256K x 36 |
(2) 256K x 36 |
(2) 256K x 36 |
|
8MB |
(2) 1M x 36 |
NONE |
NONE |
|
10MB |
(2) 1M x 36 |
(2) 256K x 36 |
NONE |
|
12MB |
(2) 1M x 36 |
(2) 256K x 36 |
(2) 256K x 36 |
|
14MB |
(2) 1M x 36 |
(2) 512K x 36 |
(2) 256K x 36 |
|
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
NONE |
|
18MB |
(2) 1M x 36 |
(2) 1M x 36 |
(2) 256K x 36 |
|
20MB |
(2) 1M x 36 |
(2) 1M x 36 |
(2) 512K x 36 |
|
22MB |
(2) 2M x 36 |
(2) 512K x 36 |
(2) 256K x 36 |
|
24MB |
(2) 2M x 36 |
(2) 1M x 36 |
NONE |
|
26MB |
(2) 2M x 36 |
(2) 1M x 36 |
(2) 256K x 36 |
|
28MB |
(2) 2M x 36 |
(2) 1M x 36 |
(2) 512K x 36 |
|
32MB |
(2) 4M x 36 |
NONE |
NONE |
|
34MB |
(2) 4M x 36 |
(2) 256K x 36 |
NONE |
|
36MB |
(2) 4M x 36 |
(2) 256K x 36 |
(2) 256K x 36 |
|
38MB |
(2) 4M x 36 |
(2) 512K x 36 |
(2) 256K x 36 |
|
40MB |
(2) 4M x 36 |
(2) 1M x 36 |
NONE |
|
42MB |
(2) 4M x 36 |
(2) 1M x 36 |
(2) 256K x 36 |
|
44MB |
(2) 4M x 36 |
(2) 1M x 36 |
(2) 512K x 36 |
|
48MB |
(2) 4M x 36 |
(2) 2M x 36 |
NONE |
|
50MB |
(2) 4M x 36 |
(2) 2M x 36 |
(2) 256K x 36 |
|
DRAM CONFIGURATION (CON’T) | |||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
|
52MB |
(2) 4M x 36 |
(2) 2M x 36 |
(2) 512K x 36 |
|
56MB |
(2) 4M x 36 |
(2) 2M x 36 |
(2) 1M x 36 |
|
64MB |
(2) 8M x 36 |
NONE |
NONE |
|
66MB |
(2) 8M x 36 |
(2) 256K x 36 |
NONE |
|
68MB |
(2) 8M x 36 |
(2) 256K x 36 |
(2) 256K x 36 |
|
70MB |
(2) 8M x 36 |
(2) 512K x 36 |
(2) 256K x 36 |
|
72MB |
(2) 8M x 36 |
(2) 1M x 36 |
NONE |
|
74MB |
(2) 8M x 36 |
(2) 1M x 36 |
(2) 256K x 36 |
|
76MB |
(2) 8M x 36 |
(2) 1M x 36 |
(2) 512K x 36 |
|
80MB |
(2) 8M x 36 |
(2) 2M x 36 |
NONE |
|
82MB |
(2) 8M x 36 |
(2) 2M x 36 |
(2) 256K x 36 |
|
84MB |
(2) 8M x 36 |
(2) 2M x 36 |
(2) 512K x 36 |
|
88MB |
(2) 8M x 36 |
(2) 2M x 36 |
(2) 1M x 36 |
|
96MB |
(2) 8M x 36 |
(2) 2M x 36 |
(2) 2M x 36 |
|
98MB |
(2) 8M x 36 |
(2) 4M x 36 |
(2) 256K x 36 |
|
100MB |
(2) 8M x 36 |
(2) 4M x 36 |
(2) 512K x 36 |
|
104MB |
(2) 8M x 36 |
(2) 4M x 36 |
(2) 1M x 36 |
|
112MB |
(2) 8M x 36 |
(2) 4M x 36 |
(2) 2M x 36 |
|
128MB |
(2) 8M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
|
130MB |
(2) 8M x 36 |
(2) 8M x 36 |
(2) 256K x 36 |
|
132MB |
(2) 8M x 36 |
(2) 8M x 36 |
(2) 512K x 36 |
|
136MB |
(2) 8M x 36 |
(2) 8M x 36 |
(2) 1M x 36 |
|
144MB |
(2) 8M x 36 |
(2) 8M x 36 |
(2) 2M x 36 |
|
160MB |
(2) 8M x 36 |
(2) 8M x 36 |
(2) 4M x 36 |
|
192MB |
(2) 8M x 36 |
(2) 8M x 36 |
(2) 8M x 36 |
|
CACHE CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
256KB |
(8) 8K x 8 |
NONE |
|
256KB |
NONE |
(4) 32K x 18 |
|
512KB |
NONE |
(4) 64K x 18 |
|
Note: Banks 0 & 1 cannot be filled simultaneously. Use only one bank. | ||
|
CACHE JUMPER CONFIGURATION | |||
|
Size |
JP23 |
JP24 |
JP25 |
|
Not installed |
pins 1 & 2 closed |
pins 1 & 2 closed |
Open |
|
256KB (non burst) |
pins 2 & 3 closed |
pins 1 & 2 closed |
pins 1 & 2 closed |
|
256KB (burst) |
pins 2 & 3 closed |
pins 1 & 2 closed |
pins 2 & 3 closed |
|
512KB (non burst) |
pins 2 & 3 closed |
pins 2 & 3 closed |
pins 1 & 2 closed |
|
512KB (burst) |
pins 2 & 3 closed |
pins 2 & 3 closed |
pins 2 & 3 closed |
|
CACHE JUMPER CONFIGURATION (BANK 1 ONLY) | ||||
|
Type |
JP5 |
JP6 |
JP7 |
JP8 |
|
Burst |
pins 2 & 3 closed |
pins 2 & 3 closed |
pins 2 & 3 closed |
pins 2 & 3 closed |
|
Non burst |
pins 1 & 2 closed |
pins 1 & 2 closed |
pins 1 & 2 closed |
pins 1 & 2 closed |
|
CPU SPEED CONFIGURATION | |||
|
Speed |
JP17 |
JP18 |
JP19 |
|
50MHz |
Closed |
Open |
Open |
|
60MHz |
Open |
Closed |
Open |
|
66MHz |
Closed |
Open |
Closed |
|
PCI INTERRUPT CONFIGURATION (INT A & B) | |||
|
IRQ |
JP11 |
JP12 |
JP13 |
|
IRQ11 |
Open |
pins 1 & 2 closed |
Open |
|
IRQ10 |
pins 1 & 2 closed |
Open |
Open |
|
IRQ9 |
Open |
Open |
pins 1 & 2 closed |
|
PCI INTERRUPT CONFIGURATION (INT C) | |||
|
IRQ |
JP11 |
JP12 |
JP13 |
|
IRQ10 |
pins 2 & 3 closed |
Open |
Open |
|
IRQ9 |
Open |
Open |
pins 2 & 3 closed |
|
IRQ11 |
Open |
pins 2 & 3 closed |
Open |
