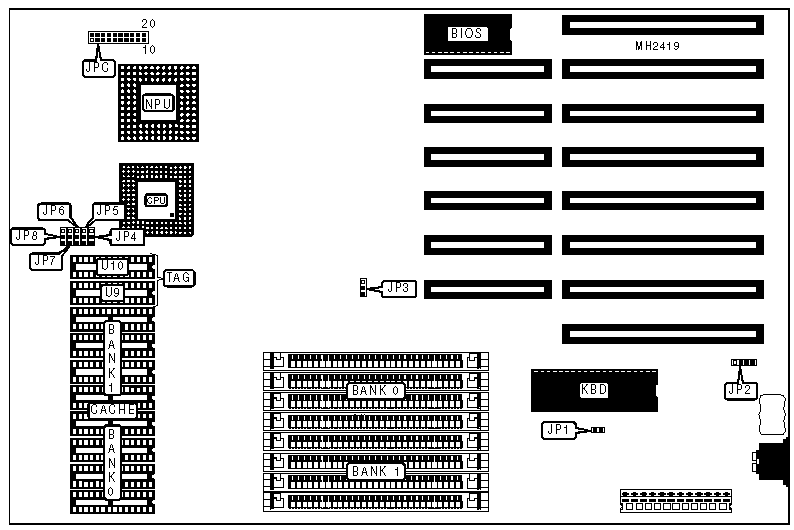

FUJIKAMA USA, INC.
PEAK/DM-386
|
Processor |
80386DX |
|
Processor Speed |
25/33/40MHz |
|
Chip Set |
Unidentified |
|
Max. Onboard DRAM |
32MB |
|
Cache |
32/64/128KB |
|
BIOS |
AMI |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
None |
|
NPU Options |
80387DX/3167 |
|
CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Power LED & keylock |
JPC (pins 1 - 5) |
Turbo switch |
JPC (pins 15 - 7) |
|
Speaker |
JPC (pins 6 - 10) |
Reset switch |
JPC (pins 19 - 20) |
|
Turbo LED |
JPC (pins 12 - 13) |
External battery |
JP2 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
|
» |
Monitor type select color |
JP1 |
Closed |
|
Monitor type select monochrome |
JP1 |
Open | |
|
» |
Memory type select same type in Bank 0 & Bank 1 |
JP3 |
pins 1 & 2 closed |
|
Memory type select different type in Bank 0 & Bank 1 |
JP3 |
pins 2 & 3 closed | |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
1MB |
(4) 256K x 9 |
NONE |
|
2MB |
(4) 256K x 9 |
(4) 256K x 9 |
|
4MB |
(4) 1M x 9 |
NONE |
|
5MB |
(4) 1M x 9 |
(4) 256K x 9 |
|
8MB |
(4) 1M x 9 |
(4) 1M x 9 |
|
16MB |
(4) 4M x 9 |
NONE |
|
17MB |
(4) 4M x 9 |
(4) 256K x 9 |
|
20MB |
(4) 4M x 9 |
(4) 1M x 9 |
|
32MB |
(4) 4M x 9 |
(4) 4M x 9 |
|
CACHE CONFIGURATION | ||||
|
Size |
Bank 0 |
Bank 1 |
TAG (U9) |
TAG (U10) |
|
32KB |
(4) 8K x 8 |
NONE |
NONE |
(1) 8K x 8 |
|
64KB |
(4) 8K x 8 |
(4) 8K x 8 |
(1) 8K x 8 |
(1) 8K x 8 |
|
128KB |
(4) 32K x 8 |
NONE |
NONE |
(1) 32K x 8 |
|
CACHE JUMPER CONFIGURATION | |||||
|
Size |
JP4 |
JP5 |
JP6 |
JP7 |
JP8 |
|
32KB |
2 & 3 |
2 & 3 |
2 & 3 |
1 & 2 |
1 & 2 |
|
64KB |
1 & 2 |
1 & 2 |
1 & 2 |
1 & 2 |
1 & 2 |
|
128KB |
1 & 2 |
1 & 2 |
2 & 3 |
2 & 3 |
2 & 3 |
|
Note: Pins designated should be in the closed position. | |||||
