GENOA SYSTEMS CORPORATION
4X4-VL
|
Processor |
CX486SX/80486SX/SL80486SX/CX486DX/SLCX486DX/AM486DX/80486DX/ SL80486DX/CX486DX2/SLCX486DX2/AM486DX2/80486DX2/SL80486DX2/ AM486DX4/80486DX4/P24CT/P24D/Pentium Overdrive |
|
Processor Speed |
25/33/40/50(internal)/50/66(internal)/75(internal)/100(internal)MHz |
|
Chip Set |
VIA |
|
Max. Onboard DRAM |
128MB |
|
Cache |
128/256/512KB |
|
BIOS |
Award |
|
Dimensions |
254mm x 218mm |
|
I/O Options |
Daughter board connector, PS/2 mouse port, green PC connector, 32-bit VESA local bus slots (2) |
|
NPU Options |
None |
|

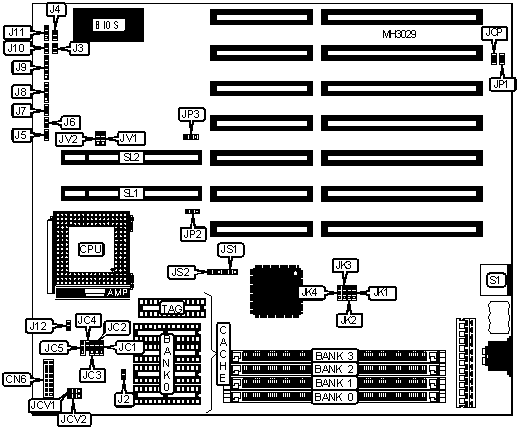

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Daughter board connector |
CN6 |
Speaker |
J8 |
|
Green PC LED |
J3 |
Power LED & keylock |
J9 |
|
Green PC power connector |
J4 |
Green PC connector |
J10 |
|
Turbo LED |
J5 |
Chassis fan power |
J11 |
|
Turbo switch |
J6 |
PS/2 mouse interface |
S1 |
|
Reset switch |
J7 |
32-bit VESA local bus slots |
SL1 - SL2 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
|
» |
AM486DX2 clock select 2x |
J2 |
Closed |
|
AM486DX2 clock select 3x |
J2 |
Open | |
|
» |
Password select normal operation |
JCP |
Open |
|
Password select clear |
JCP |
Closed | |
|
» |
Monitor type select monochrome |
JP1 |
Open |
|
Monitor type select color |
JP1 |
Closed | |
|
CPU type select Intel |
JP3 |
pins 1 & 2 closed | |
|
CPU type select Cyrix |
JP3 |
pins 2 & 3 closed | |
|
DRAM CONFIGURATION | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
1MB |
(1) 256K x 36 |
NONE |
NONE |
NONE |
|
1MB |
NONE |
(1) 256K x 36 |
NONE |
NONE |
|
1MB |
NONE |
NONE |
(1) 256K x 36 |
NONE |
|
2MB |
(1) 256K x 36 |
(1) 256K x 36 |
NONE |
NONE |
|
2MB |
(1) 256K x 36 |
NONE |
(1) 256K x 36 |
NONE |
|
2MB |
NONE |
NONE |
(1) 256K x 36 |
(1) 256K x 36 |
|
3MB |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 256K x 36 | |
|
3MB |
NONE |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
|
3MB |
(1) 256K x 36 |
NONE |
(1) 256K x 36 |
(1) 256K x 36 |
|
4MB |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
|
4MB |
(1) 1M x 36 |
NONE |
NONE |
NONE |
|
4MB |
NONE |
(1) 1M x 36 |
NONE |
NONE |
|
4MB |
NONE |
NONE |
(1) 1M x 36 |
NONE |
|
5MB |
(1) 256K x 36 |
(1) 1M x 36 |
NONE |
NONE |
|
5MB |
(1) 256K x 36 |
NONE |
(1) 1M x 36 |
NONE |
|
5MB |
(1) 1M x 36 |
(1) 256K x 36 |
NONE |
NONE |
|
5MB |
(1) 1M x 36 |
NONE |
(1) 256K x 36 |
NONE |
|
5MB |
NONE |
(1) 256K x 36 |
(1) 1M x 36 |
NONE |
|
5MB |
NONE |
(1) 1M x 36 |
(1) 256K x 36 |
NONE |
|
6MB |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 1M x 36 |
NONE |
|
6MB |
(1) 256K x 36 |
(1) 1M x 36 |
(1) 256K x 36 |
NONE |
|
6MB |
(1) 1M x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
NONE |
|
6MB |
NONE |
(1) 1M x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
|
6MB |
(1) 1M x 36 |
NONE |
(1) 256K x 36 |
(1) 256K x 36 |
|
7MB |
(1) 256K x 36 |
(1) 1M x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
|
7MB |
(1) 1M x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
|
8MB |
(1) 1M x 36 |
(1) 1M x 36 |
NONE |
NONE |
|
8MB |
(1) 1M x 36 |
NONE |
(1) 1M x 36 |
NONE |
|
8MB |
NONE |
NONE |
(1) 1M x 36 |
(1) 1M x 36 |
|
9MB |
(1) 256K x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
NONE |
|
9MB |
(1) 1M x 36 |
(1) 256K x 36 |
(1) 1M x 36 |
NONE |
|
9MB |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 256K x 36 |
NONE |
|
DRAM CONFIGURATION (CON’T) | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
9MB |
NONE |
(1) 256K x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
|
9MB |
(1) 256K x 36 |
NONE |
(1) 1M x 36 |
(1) 1M x 36 |
|
10MB |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
|
10MB |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
|
12MB |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
NONE |
|
12MB |
NONE |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
|
12MB |
(1) 1M x 36 |
NONE |
(1) 1M x 36 |
(1) 1M x 36 |
|
13MB |
(1) 256K x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
|
13MB |
(1) 1M x 36 |
(1) 256K x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
|
16MB |
NONE |
(1) 4M x 36 |
NONE |
NONE |
|
16MB |
NONE |
NONE |
(1) 4M x 36 |
NONE |
|
16MB |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
|
17MB |
(1) 256K x 36 |
(1) 4M x 36 |
NONE |
NONE |
|
17MB |
(1) 256K x 36 |
NONE |
(1) 4M x 36 |
NONE |
|
17MB |
NONE |
(1) 256K x 36 |
(1) 4M x 36 |
NONE |
|
17MB |
NONE |
(1) 4M x 36 |
(1) 256K x 36 |
NONE |
|
18MB |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 4M x 36 |
NONE |
|
18MB |
(1) 256K x 36 |
(1) 4M x 36 |
(1) 256K x 36 |
NONE |
|
18MB |
NONE |
(1) 4M x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
|
19MB |
(1) 256K x 36 |
(1) 4M x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
|
20MB |
(1) 1M x 36 |
(1) 4M x 36 |
NONE |
NONE |
|
20MB |
(1) 1M x 36 |
NONE |
(1) 4M x 36 |
NONE |
|
20MB |
NONE |
(1) 1M x 36 |
(1) 4M x 36 |
NONE |
|
20MB |
NONE |
(1) 4M x 36 |
(1) 1M x 36 |
NONE |
|
21MB |
(1) 256K x 36 |
(1) 1M x 36 |
(1) 4M x 36 |
NONE |
|
21MB |
(1) 256K x 36 |
(1) 4M x 36 |
(1) 1M x 36 |
NONE |
|
21MB |
(1) 1M x 36 |
(1) 256K x 36 |
(1) 4M x 36 |
NONE |
|
21MB |
(1) 1M x 36 |
(1) 4M x 36 |
(1) 256K x 36 |
NONE |
|
22MB |
(1) 1M x 36 |
(1) 4M x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
|
24MB |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 4M x 36 |
NONE |
|
24MB |
(1) 1M x 36 |
(1) 4M x 36 |
(1) 1M x 36 |
NONE |
|
24MB |
NONE |
(1) 4M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
|
25MB |
(1) 256K x 36 |
(1) 4M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
|
28MB |
(1) 1M x 36 |
(1) 4M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
|
32MB |
NONE |
NONE |
(1) 4M x 36 |
(1) 4M x 36 |
|
32MB |
(1) 8M x 36 |
NONE |
NONE |
NONE |
|
32MB |
NONE |
(1) 8M x 36 |
NONE |
NONE |
|
32MB |
NONE |
(1) 4M x 36 |
(1) 4M x 36 |
NONE |
|
33MB |
(1) 256K x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
NONE |
|
33MB |
NONE |
(1) 256K x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
|
33MB |
(1) 256K x 36 |
NONE |
(1) 4M x 36 |
(1) 4M x 36 |
|
34MB |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
|
36MB |
(1) 1M x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
NONE |
|
36MB |
NONE |
(1) 1M x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
|
DRAM CONFIGURATION (CON’T) | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
36MB |
(1) 1M x 36 |
NONE |
(1) 4M x 36 |
(1) 4M x 36 |
|
37MB |
(1) 256K x 36 |
(1) 1M x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
|
37MB |
(1) 1M x 36 |
(1) 256K x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
|
40MB |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
|
48MB |
NONE |
(1) 4M x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
|
49MB |
(1) 256K x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
|
52MB |
(1) 1M x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
|
64MB |
NONE |
(1) 8M x 36 |
(1) 8M x 36 |
NONE |
|
65MB |
(1) 256K x 36 |
(1) 8M x 36 |
(1) 8M x 36 |
NONE |
|
66MB |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 8M x 36 |
(1) 8M x 36 |
|
66MB |
(1) 8M x 36 |
(1) 8M x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
|
67MB |
(1) 256K x 36 |
(1) 16M x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
|
68MB |
(1) 1M x 36 |
(1) 8M x 36 |
(1) 8M x 36 |
NONE |
|
68MB |
NONE |
(1) 8M x 36 |
(1) 8M x 36 |
(1) 1M x 36 |
|
68MB |
NONE |
(1) 1M x 36 |
(1) 8M x 36 |
(1) 8M x 36 |
|
68MB |
(1) 8M x 36 |
(1) 8M x 36 |
(1) 1M x 36 |
NONE |
|
69MB |
(1) 256K x 36 |
(1) 1M x 36 |
(1) 8M x 36 |
(1) 8M x 36 |
|
69MB |
(1) 256K x 36 |
(1) 8M x 36 |
(1) 1M x 36 |
(1) 8M x 36 |
|
69MB |
(1) 1M x 36 |
(1) 256K x 36 |
(1) 8M x 36 |
(1) 8M x 36 |
|
69MB |
(1) 1M x 36 |
(1) 8M x 36 |
(1) 256K x 36 |
(1) 8M x 36 |
|
72MB |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 8M x 36 |
(1) 8M x 36 |
|
72MB |
(1) 1M x 36 |
(1) 8M x 36 |
(1) 1M x 36 |
(1) 8M x 36 |
|
72MB |
(1) 8M x 36 |
(1) 8M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
|
80MB |
(1) 8M x 36 |
(1) 4M x 36 |
(1) 8M x 36 |
NONE |
|
80MB |
(1) 8M x 36 |
(1) 8M x 36 |
(1) 4M x 36 |
NONE |
|
81MB |
(1) 256K x 36 |
(1) 4M x 36 |
(1) 8M x 36 |
(1) 8M x 36 |
|
81MB |
(1) 256K x 36 |
(1) 8M x 36 |
(1) 4M x 36 |
(1) 8M x 36 |
|
84MB |
(1) 1M x 36 |
(1) 4M x 36 |
(1) 8M x 36 |
(1) 8M x 36 |
|
84MB |
(1) 1M x 36 |
(1) 8M x 36 |
(1) 4M x 36 |
(1) 8M x 36 |
|
96MB |
(1) 8M x 36 |
(1) 8M x 36 |
(1) 8M x 36 |
NONE |
|
97MB |
(1) 8M x 36 |
(1) 8M x 36 |
(1) 8M x 36 |
(1) 256K x 36 |
|
128MB |
(1) 8M x 36 |
(1) 8M x 36 |
(1) 8M x 36 |
(1) 8M x 36 |
|
CACHE CONFIGURATION | ||
|
Size |
Bank 0 |
TAG |
|
128KB |
(4) 32K x 8 |
(1) 32K x 8 |
|
256KB |
(4) 64K x 8 |
(1) 32K x 8 |
|
512KB |
(4) 128K x 8 |
(1) 32K x 8 |
|
CACHE JUMPER CONFIGURATION | ||
|
Size |
JS1 |
JS2 |
|
128KB |
pins 1 & 2 closed |
pins 1 & 2 closed |
|
256KB |
pins 2 & 3 closed |
pins 1 & 2 closed |
|
512KB |
pins 2 & 3 closed |
pins 2 & 3 closed |
|
CPU TYPE CONFIGURATION | |||||
|
Type |
JC1 |
JC2 |
JC3 |
JC4 |
JC5 |
|
CX486SX |
2 & 3 |
2 & 3 |
1 & 2 |
Open |
2 & 3 |
|
80486SX |
2 & 3 |
2 & 3 |
1 & 2 |
Open |
1 & 2 |
|
SL80486SX |
2 & 3 |
2 & 3 |
1 & 2 |
Open |
1 & 2 |
|
CX486DX |
1 & 2 |
1 & 2 |
1 & 2 |
Open |
1 & 2 |
|
SLCX486DX |
1 & 2 |
1 & 2 |
1 & 2 |
Open |
2 & 3 |
|
AM486DX |
1 & 2 |
1 & 2 |
1 & 2 |
Open |
1 & 2 |
|
80486DX |
1 & 2 |
1 & 2 |
1 & 2 |
Open |
1 & 2 |
|
SL80486DX |
1 & 2 |
1 & 2 |
1 & 2 |
Open |
1 & 2 |
|
CX486DX2 |
1 & 2 |
1 & 2 |
1 & 2 |
Open |
1 & 2 |
|
SLCX486DX2 |
1 & 2 |
1 & 2 |
1 & 2 |
Open |
2 & 3 |
|
80486DX2 |
2 & 3 |
2 & 3 |
1 & 2 |
Open |
1 & 2 |
|
SL80486DX2 |
1 & 2 |
1 & 2 |
1 & 2 |
Open |
1 & 2 |
|
80486DX4 |
2 & 3 |
2 & 3 |
1 & 2 |
Open |
1 & 2 |
|
P24CT |
1 & 2 |
1 & 2 |
1 & 2 |
Closed |
1 & 2 |
|
P24T |
1 & 2 |
1 & 2 |
1 & 2 |
Closed |
1 & 2 |
|
P24D |
1 & 2 |
1 & 2 |
1 & 2 |
Closed |
1 & 2 |
|
N | |||||
|
CPU TYPE CONFIGURATION | ||||
|
Type |
RN16 |
RN17 |
RN18 |
RN19 |
|
CX486SX |
Installed |
Not installed |
Not installed |
Not installed |
|
80486SX |
Not installed |
Not installed |
Not installed |
Installed |
|
SL80486SX |
Not installed |
Not installed |
Not installed |
Installed |
|
CX486DX |
Installed |
Not installed |
Not installed |
Not installed |
|
SLCX486DX |
Installed |
Not installed |
Not installed |
Not installed |
|
AM486DX |
Not installed |
Not installed |
Installed |
Not installed |
|
80486DX |
Not installed |
Not installed |
Not installed |
Installed |
|
SL80486DX |
Not installed |
Not installed |
Not installed |
Installed |
|
CX486DX2 |
Installed |
Not installed |
Not installed |
Not installed |
|
SLCX486DX2 |
Installed |
Not installed |
Not installed |
Not installed |
|
AM486DX2 |
Not installed |
Not installed |
Installed |
Not installed |
|
80486DX2 |
Not installed |
Not installed |
Not installed |
Installed |
|
SL80486DX2 |
Not installed |
Not installed |
Not installed |
Installed |
|
AM486DX4 |
Not installed |
Not installed |
Installed |
Not installed |
|
80486DX4 |
Not installed |
Not installed |
Not installed |
Installed |
|
P24CT |
Not installed |
Installed |
Not installed |
Installed |
|
P24T |
Not installed |
Installed |
Not installed |
Installed |
|
P24D |
Not installed |
Installed |
Not installed |
Installed |
|
Note: The exact location of RN16, RN17, RN18 and RN19 are unidentified. | ||||
|
CPU JUMPER CONFIGURATION | |
|
Type |
J12 |
|
SLAM486DX2 |
Closed |
|
AM486DX4 |
Open |
|
CPU SPEED CONFIGURATION | |||||
|
» Speed |
JK1 |
JK2 |
JK3 |
JK4 | |
| » |
25MHz |
pins 2 & 3 closed |
pins 1 & 2 closed |
pins 2 & 3 closed |
pins 1 & 2 closed |
| » |
33MHz |
pins 2 & 3 closed |
pins 2 & 3 closed |
pins 1 & 2 closed |
pins 1 & 2 closed |
| » |
40MHz |
pins 1 & 2 closed |
pins 1 & 2 closed |
pins 2 & 3 closed |
pins 1 & 2 closed |
| » |
50MHz |
pins 2 & 3 closed |
pins 1 & 2 closed |
pins 2 & 3 closed |
pins 2 & 3 closed |
| » |
66iMHz |
pins 2 & 3 closed |
pins 2 & 3 closed |
pins 1 & 2 closed |
pins 1 & 2 closed |
| » |
75iMHz |
pins 2 & 3 closed |
pins 1 & 2 closed |
pins 2 & 3 closed |
pins 1 & 2 closed |
| » |
100iMHz |
pins 2 & 3 closed |
pins 2 & 3 closed |
pins 1 & 2 closed |
pins 1 & 2 closed |
|
VOLTAGE CONFIGURATION | ||
|
Voltage |
JCV1 |
JCV2 |
|
3.0v |
pins 1 & 2 closed |
Open |
|
3.3v |
pins 2 & 3 closed |
Open |
|
3.45v |
Open |
Open |
|
3.6v |
Open |
pins 1 & 2 closed |
|
4.0v |
Open |
pins 2 & 3 closed |
|
VESA WAIT STATE CONFIGURATION | ||
|
» Wait states |
JV1 | |
| » |
0 wait states |
pins 2 & 3 closed |
| » |
1 wait state |
pins 1 & 2 closed |
|
VESA LOCAL BUS SPEED CONFIGURATION | ||
|
» CPU speed |
JV2 | |
| » |
<= 33MHz |
pins 2 & 3 closed |
| » |
> 33MHz |
pins 1 & 2 closed |
