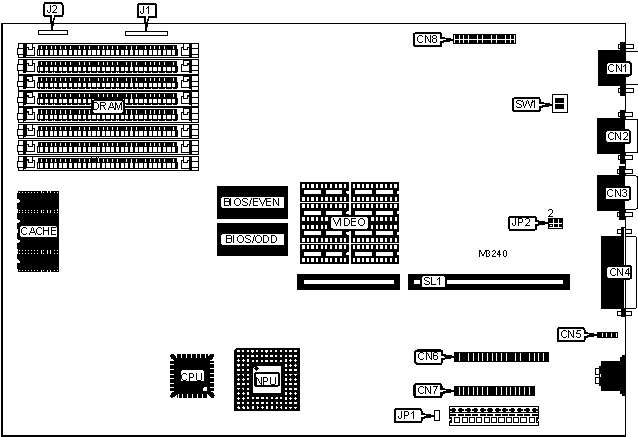

EVEREX SYSTEMS, INC.
TEMPO 386/33, 25C
|
Processor |
80386SX |
|
Processor Speed |
25/33MHz |
|
Chip Set |
Unidentified |
|
Max. Onboard DRAM |
32MB |
|
Cache |
128KB |
|
BIOS |
Unidentified |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
Floppy drive interface, IDE interface, parallel port, serial ports (2), VGA feature connector, VGA port, riser slot |
|
NPU Options |
80387SX/3167 |
|
CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
VGA port |
CN1 |
Floppy drive interface |
CN7 |
|
Serial port 1 |
CN2 |
VGA feature connector |
CN8 |
|
Serial port 2 |
CN3 |
LED display panel |
J1 |
|
Parallel port |
CN4 |
Reset/speaker |
J2 |
|
External battery |
CN5 |
Riser slot |
SL1 |
|
IDE interface |
CN6 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
|
» |
Factory configured - do not alter |
JP1 |
N/A |
|
» |
IRQ2 disabled |
JP2 pins 1 & 2 |
Open |
|
IRQ2 enabled |
JP2 pins 1 & 2 |
Closed | |
|
On board video enabled |
JP2 pins 5 & 6 |
Closed | |
|
On board video disabled |
JP2 pins 5 & 6 |
Open | |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
1MB |
(4) 256K x 9 |
None |
|
2MB |
(4) 256K x 9 |
(4) 256K x 9 |
|
4MB |
(4) 1M x 9 |
None |
|
5MB |
(4) 256K x 9 |
(4) 1M x 9 |
|
5MB |
(4) 1M x 9 |
(4) 256K x 9 |
|
8MB |
(4) 1M x 9 |
(4) 1M x 9 |
|
16MB |
(4) 4M x 9 |
None |
|
17MB |
(4) 256K x 9 |
(4) 4M x 9 |
|
20MB |
(4) 1M x 9 |
(4) 4M x 9 |
|
20MB |
(4) 4M x 9 |
(4) 1M x 9 |
|
32MB |
(4) 4M x 9 |
(4) 4M x 9 |
|
Note: The orientation of Banks 0 & 1 are unidentified. | ||
|
CACHE CONFIGURATION |
|
Note: 128KB is factory installed and is not configurable. |
|
VIDEO MEMORY CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
512KB |
(4) 256K x 4 |
None |
|
1MB |
(4) 256K x 4 |
(4) 256K x 4 |
|
Note: The orientation of Banks 0 & 1 are unidentified. | ||
|
MONITOR CONFIGURATION | ||
|
Type |
SW1/1 |
SW1/2 |
|
Super Multifrequency |
On |
On |
|
Multifrequency |
Off |
On |
|
SVGA |
On |
Off |
|
VGA/IBM PS/2/8514 |
Off |
Off |
