ELITEGROUP COMPUTER SYSTEMS, INC.
386L
|
Processor |
80386DX |
|
Processor Speed |
25MHz |
|
Chip Set |
VLSI |
|
Video Chip Set |
None |
|
Maximum Onboard Memory |
32MB |
|
Maximum Video Memory |
None |
|
Cache |
None |
|
BIOS |
AMI |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
None |
|
NPU Options |
80387DX/3167 |
|

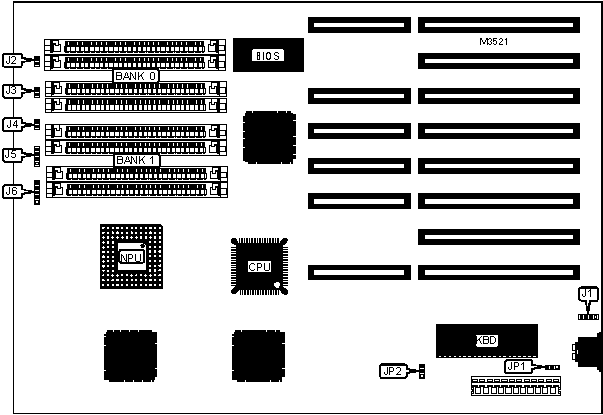

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
External battery |
J1 |
Reset switch |
J4 |
|
Turbo LED |
J2 |
Speaker |
J5 |
|
Turbo switch |
J3 |
Power LED & keylock |
J6 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
|
Monitor type select color |
JP1 |
Pins 2 & 3 closed | |
|
Monitor type select monochrome |
JP1 |
Pins 1 & 2 closed | |
|
Power good signal detect from power supply |
JP2 |
Pins 1 & 2 closed | |
|
Power good signal detect from board |
JP2 |
Pins 2 & 3 closed | |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
1MB |
(4) 256K x 9 |
None |
|
2MB |
(4) 256K x 9 |
(4) 256K x 9 |
|
4MB |
(4) 1M x 9 |
None |
|
5MB |
(4) 256K x 9 |
(4) 1M x 9 |
|
8MB |
(4) 1M x 9 |
(4) 1M x 9 |
|
16MB |
(4) 4M x 9 |
None |
|
17MB |
(4) 256K x 9 |
(4) 4M x 9 |
|
20MB |
(4) 1M x 9 |
(4) 4M x 9 |
|
32MB |
(4) 4M x 9 |
(4) 4M x 9 |
