ELITEGROUP COMPUTER SYSTEMS, INC.
P6FX1-B (VER. 1.0 PCB 2.0)
|
Processor |
Pentium Pro |
|
Processor Speed |
150/166/180/200MHz |
|
Chip Set |
Unidentified |
|
Video Chip Set |
None |
|
Maximum Onboard Memory |
384MB (EDO supported) |
|
Maximum Video Memory |
None |
|
Cache |
256/512KB (located on Pentium Pro CPU) |
|
BIOS |
Unidentified |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
32-bit PCI slots (5), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), IR connectors (2), USB connector |
|
NPU Options |
None |
|

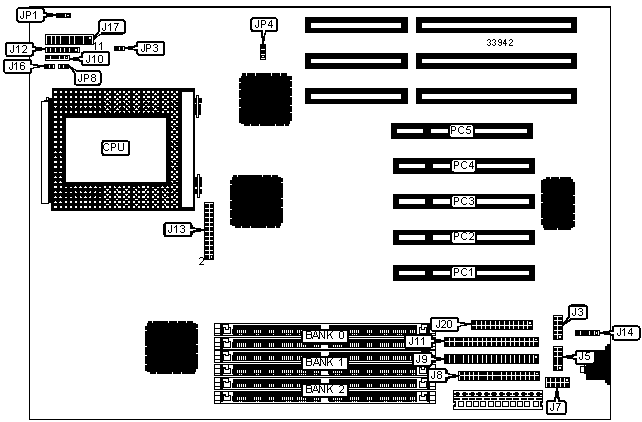

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Serial port 2 |
J3 |
Green PC LED |
J16 |
|
Serial port 1 |
J5 |
Green PC connector |
J17 pins 4 & 5 |
|
USB connector |
J7 |
Reset switch |
J17 pins 9 & 10 |
|
Floppy drive interface |
J8 |
Power LED & keylock |
J17 pins 11 - 15 |
|
IDE interface 2 |
J9 |
Speaker |
J17 pins 17 - 20 |
|
IR connector |
J10 |
Parallel port |
J20 |
|
IDE interface 1 |
J11 |
Chassis fan power |
JP1 |
|
IR connector (fast) |
J12 |
IDE interface LED |
JP8 |
|
PS/2 mouse interface |
J14 |
32-bit PCI slots |
PC1 - PC5 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
|
» |
CMOS memory normal operation |
JP3 |
Open |
|
CMOS memory clear |
JP3 |
Closed | |
|
» |
Password normal operation |
JP4 |
Pins 2 & 3 closed |
|
Password clear |
JP4 |
Pins 1 & 2 closed | |
|
DRAM CONFIGURATION | |||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
|
8MB |
(2) 1M x 36 |
None |
None |
|
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
None |
|
16MB |
(2) 2M x 36 |
None |
None |
|
24MB |
(2) 2M x 36 |
(2) 1M x 36 |
None |
|
24MB |
(2) 1M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
|
32MB |
(2) 4M x 36 |
None |
None |
|
32MB |
(2) 2M x 36 |
(2) 2M x 36 |
None |
|
40MB |
(2) 4M x 36 |
(2) 1M x 36 |
None |
|
48MB |
(2) 4M x 36 |
(2) 2M x 36 |
None |
|
48MB |
(2) 4M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
|
56MB |
(2) 4M x 36 |
(2) 2M x 36 |
(2) 1M x 36 |
|
64MB |
(2) 8M x 36 |
None |
None |
|
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
None |
|
80MB |
(2) 8M x 36 |
(2) 2M x 36 |
None |
|
80MB |
(2) 8M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
|
88MB |
(2) 8M x 36 |
(2) 2M x 36 |
(2) 1M x 36 |
|
96MB |
(2) 8M x 36 |
(2) 4M x 36 |
None |
|
96MB |
(2) 4M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
|
96MB |
(2) 8M x 36 |
(2) 2M x 36 |
(2) 2M x 36 |
|
104MB |
(2) 8M x 36 |
(2) 4M x 36 |
(2) 1M x 36 |
|
112MB |
(2) 8M x 36 |
(2) 4M x 36 |
(2) 2M x 36 |
|
128MB |
(2) 8M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
|
128MB |
(2) 16M x 36 |
None |
None |
|
DRAM CONFIGURATION (CON’T) | |||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
|
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
None |
|
136MB |
(2) 8M x 36 |
(2) 8M x 36 |
(2) 1M x 36 |
|
136MB |
(2) 16M x 36 |
(2) 1M x 36 |
None |
|
144MB |
(2) 16M x 36 |
(2) 2M x 36 |
None |
|
144MB |
(2) 16M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
|
152MB |
(2) 16M x 36 |
(2) 2M x 36 |
(2) 1M x 36 |
|
160MB |
(2) 16M x 36 |
(2) 4M x 36 |
None |
|
160MB |
(2) 16M x 36 |
(2) 2M x 36 |
(2) 2M x 36 |
|
168MB |
(2) 16M x 36 |
(2) 4M x 36 |
(2) 1M x 36 |
|
176MB |
(2) 16M x 36 |
(2) 4M x 36 |
(2) 2M x 36 |
|
192MB |
(2) 16M x 36 |
(2) 8M x 36 |
None |
|
192MB |
(2) 16M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
|
200MB |
(2) 16M x 36 |
(2) 8M x 36 |
(2) 1M x 36 |
|
208MB |
(2) 16M x 36 |
(2) 8M x 36 |
(2) 2M x 36 |
|
224MB |
(2) 16M x 36 |
(2) 8M x 36 |
(2) 4M x 36 |
|
256MB |
(2) 16M x 36 |
(2) 16M x 36 |
None |
|
256MB |
(2) 16M x 36 |
(2) 8M x 36 |
(2) 8M x 36 |
|
264MB |
(2) 16M x 36 |
(2) 16M x 36 |
(2) 1M x 36 |
|
272MB |
(2) 16M x 36 |
(2) 16M x 36 |
(2) 2M x 36 |
|
288MB |
(2) 16M x 36 |
(2) 16M x 36 |
(2) 4M x 36 |
|
320MB |
(2) 16M x 36 |
(2) 16M x 36 |
(2) 8M x 36 |
|
384MB |
(2) 16M x 36 |
(2) 16M x 36 |
(2) 16M x 36 |
|
Note: Board accepts EDO memory. Board also accepts x 32 SIMMs. Accepts any combination. | |||
|
CACHE CONFIGURATION |
|
Note: 256KB/512KB cache is located on the Pentium Pro CPU. |
|
CPU SPEED SELECTION | |||
|
CPU speed |
Clock speed |
Multiplier |
JP13 |
|
150MHz |
60MHz |
2.5x |
3 & 4, 5 & 6, 11 & 12, 13 & 14, 15 & 16 |
|
166MHz |
66MHz |
2.5x |
1 & 2, 7 & 8, 11 & 12, 13 & 14, 15 & 16 |
|
180MHz |
60MHz |
3x |
3 & 4, 5 & 6, 9 & 10, 13 & 14, 15 & 16 |
|
200MHz |
66MHz |
3x |
1 & 2, 7 & 8, 9 & 10, 13 & 14, 15 & 16 |
|
Note: Pins designated should be in the closed position. | |||
|
CPU VOLTAGE SELECTION | |
|
Voltage |
J13 |
|
VID enabled |
Open |
|
2.1v |
Pins 17 & 18 closed |
|
2.2v |
Pins 19 & 20 closed |
|
2.3v |
Pins 17 & 18, 19 & 20 closed |
|
2.4v |
Pins 21 & 22 closed |
|
2.5v |
Pins 17 & 18, 21 & 22 closed |
|
2.6v |
Pins 19 & 20, 21 & 22 closed |
|
2.7v |
Pins 17 & 18, 19 & 20, 21 & 22 closed |
|
2.8v |
Pins 23 & 24 closed |
|
2.9v |
Pins 17 & 18, 23 & 24 closed |
|
3.0v |
Pins 19 & 20, 23 & 24 closed |
|
3.1v |
Pins 17 & 18, 19 & 20, 23 & 24 closed |
|
3.2v |
Pins 21 & 22, 23 & 24 closed |
|
3.3v |
Pins 17 & 18, 21 & 22, 23 & 24 closed |
|
3.4v |
Pins 19 & 20, 21 & 22, 23 & 24 closed |
|
3.5v |
Pins 17 & 18, 19 & 20, 21 & 22, 23 & 24 closed |
