GIGA-BYTE TECHNOLOGY CO., LTD.
GA-586AL
|
Processor |
Pentium |
|
Processor Speed |
60/66MHz |
|
Chip Set |
Unidentified |
|
Video Chip Set |
None |
|
Maximum Onboard Memory |
160MB |
|
Maximum Video Memory |
None |
|
Cache |
256/512/1024KB |
|
BIOS |
Award |
|
Dimensions |
254mm x 218mm |
|
I/O Options |
32-bit PCI slots (3), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, serial ports (2) |
|
NPU Options |
None |
|

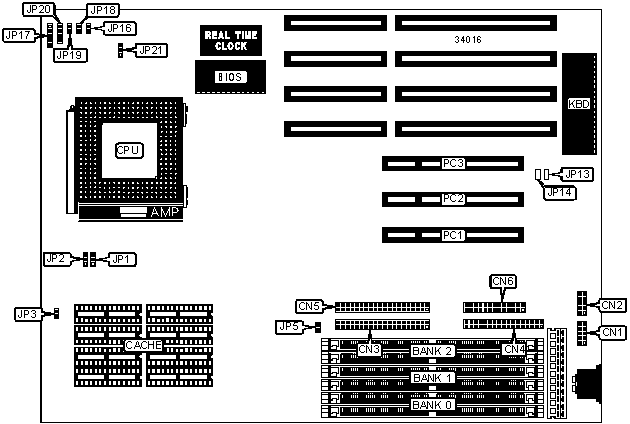

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Serial port 1 |
CN1 |
IDE interface LED |
JP5 |
|
Serial port 2 |
CN2 |
Reset switch |
JP16 |
|
IDE interface 1 |
CN3 |
Power LED & keylock |
JP17 |
|
Floppy drive interface |
CN4 |
Turbo switch |
JP18 |
|
IDE interface 2 |
CN5 |
Turbo LED |
JP19 |
|
Parallel port |
CN6 |
Speaker |
JP20 |
|
Chassis fan power |
JP3 |
32-bit PCI slots |
PC1 – PC3 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
|
» |
Factory configured - do not alter |
JP13 |
Unidentified |
|
» |
Factory configured - do not alter |
JP14 |
Unidentified |
|
DRAM CONFIGURATION | |||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
|
2MB |
(2) 256K x 36 |
None |
None |
|
4MB |
(2) 256K x 36 |
(2) 256K x 36 |
None |
|
4MB |
(2) 512K x 36 |
None |
None |
|
8MB |
(2) 1M x 36 |
None |
None |
|
10MB |
(2) 1M x 36 |
(2) 256K x 36 |
None |
|
12MB |
(2) 512K x 36 |
(2) 1M x 36 |
None |
|
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
None |
|
16MB |
(2) 2M x 36 |
None |
None |
|
18MB |
(2) 2M x 36 |
(2) 256K x 36 |
None |
|
18MB |
(2) 1M x 36 |
(2) 1M x 36 |
(2) 256K x 36 |
|
24MB |
(2) 2M x 36 |
(2) 1M x 36 |
None |
|
24MB |
(2) 1M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
|
26MB |
(2) 2M x 36 |
(2) 1M x 36 |
(2) 256K x 36 |
|
28MB |
(2) 2M x 36 |
(2) 1M x 36 |
(2) 512K x 36 |
|
32MB |
(2) 4M x 36 |
None |
None |
|
34MB |
(2) 4M x 36 |
(2) 256K x 36 |
None |
|
40MB |
(2) 4M x 36 |
(2) 1M x 36 |
None |
|
42MB |
(2) 4M x 36 |
(2) 1M x 36 |
(2) 256K x 36 |
|
48MB |
(2) 4M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
|
64MB |
(2) 8M x 36 |
None |
None |
|
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
None |
|
66MB |
(2) 8M x 36 |
(2) 256K x 36 |
None |
|
66MB |
(2) 4M x 36 |
(2) 4M x 36 |
(2) 256K x 36 |
|
DRAM CONFIGURATION (CON’T) | |||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
|
70MB |
(2) 8M x 36 |
(2) 256K x 36 |
(2) 512K x 36 |
|
74MB |
(2) 8M x 36 |
(2) 1M x 36 |
(2) 256K x 36 |
|
80MB |
(2) 8M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
|
96MB |
(2) 8M x 36 |
(2) 4M x 36 |
None |
|
96MB |
(2) 4M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
|
98MB |
(2) 8M x 36 |
(2) 4M x 36 |
(2) 256K x 36 |
|
100MB |
(2) 8M x 36 |
(2) 4M x 36 |
(2) 512K x 36 |
|
104MB |
(2) 8M x 36 |
(2) 4M x 36 |
(2) 1M x 36 |
|
112MB |
(2) 8M x 36 |
(2) 4M x 36 |
(2) 2M x 36 |
|
128MB |
(2) 8M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
|
160MB |
(2) 8M x 36 |
(2) 4M x 36 |
(2) 8M x 36 |
|
CACHE CONFIGURATION | |||
|
Size |
Bank 0 |
Bank 1 |
TAG |
|
256KB |
(4) 32K x 8 |
(4) 32K x 8 |
(1) 8K/32K x 8 |
|
512KB |
(4) 64K x 8 |
(4) 64K x 8 |
(1) 16K/32K x 8 |
|
1MB |
(4) 128K x 8 |
(4) 128K x 8 |
(1) 32K x 8 |
|
CACHE JUMPER CONFIGURATION | ||
|
Size |
JP1 |
JP2 |
|
256KB |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
|
512KB |
Pins 1 & 2 closed |
Pins 2 & 3 closed |
|
1MB |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
CPU SPEED SELECTION | |
|
Speed |
JP21 |
|
60MHz |
Pins 1 & 2 closed |
|
66MHz |
Pins 2 & 3 closed |
