PAK-2005 (COM)

FIRST INTERNATIONAL COMPUTER, INC.

PAK-2005 (COM)

Device Type

Mainboard

Processor

CX 6X86/IBM 6X86/CX 6X86L/IBM 6X86L/CX 686MX/IBM 6X86MX/

AM K5/AM K6/Pentium

Processor Speed

90/100/120/133/150/166/200/233/266/300MHz

Chip Set

VIA

Video Chip Set

S3

Maximum Onboard Memory

256MB (EDO & SDRAM supported)

Maximum Video Memory

2MB

Cache

256/512/1024KB

BIOS

Award

Dimensions

254mm x 218mm

I/O Options

Floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), VGA feature connector, VGA port, riser slot, IR connector, USB connector

NPU Options

None

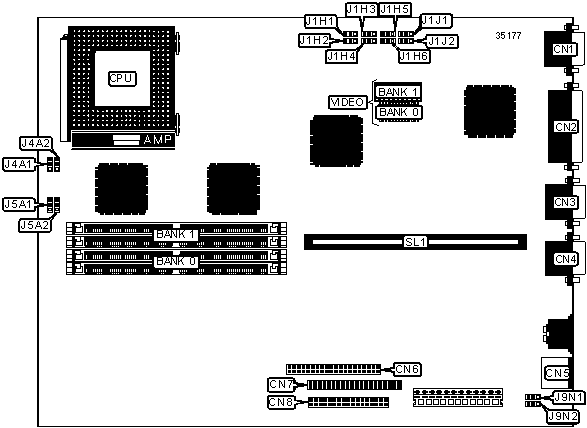

CONNECTIONS

Purpose

Location

Purpose

Location

Power LED & keylock

C1/pins 1 - 5

Serial port 2

CN3

Turbo LED

C1/pins 6 & 7

Serial port 1

CN4

Green PC connector

C1/pins 8 & 9

PS/2 mouse port

CN5

Green PC LED

C1/pins 10 & 11

Floppy drive interface

CN6

Speaker

C1/pins 12 - 15

IDE interface 1

CN7

IDE interface LED

C1/pins 16 & 17

IDE interface 2

CN8

Soft off power supply

C1/pins 18 & 19

USB connector

CN9

Reset switch

C1/pins 20 & 21

VGA feature connector

CN10

External battery

C2

CPU fan power

CPU

Chassis fan power

CHA

IR connector

IR1

Chassis alarm connector

CHS

Wake on LAN connector

LAN

VGA port

CN1

Remote power connector

RPW

Parallel port

CN2

Riser slot

SL1

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

Password disabled

CPW

Open

Password enabled

CPW

Closed

»

Burst type select Intel

SRAM

Pins 1 & 2 closed

Burst type select linear

SRAM

Pins 2 & 3 closed

»

On board video enabled

VGA1

Pins 1 & 2 closed

On board video disabled

VGA1

Pins 2 & 3 closed

SIMM CONFIGURATION

Size

Bank 0

8MB

(2) 1M x 36

16MB

(2) 2M x 36

32MB

(2) 4M x 36

64MB

(2) 8M x 36

128MB

(2) 16M x 36

256MB

(2) 32M x 36

Note: Board accepts EDO memory.

DIMM CONFIGURATION

Size

Bank 1

Bank 2

8MB

(1) 1M x 64

None

16MB

(1) 2M x 64

None

16MB

(1) 1M x 64

(1) 1M x 64

24MB

(1) 2M x 64

(1) 1M x 64

32MB

(1) 4M x 64

None

32MB

(1) 2M x 64

(1) 2M x 64

40MB

(1) 4M x 64

(1) 1M x 64

48MB

(1) 4M x 64

(1) 2M x 64

64MB

(1) 8M x 64

None

64MB

(1) 4M x 64

(1) 4M x 64

72MB

(1) 8M x 64

(1) 1M x 64

80MB

(1) 8M x 64

(1) 2M x 64

96MB

(1) 8M x 64

(1) 4M x 64

128MB

(1) 16M x 64

None

128MB

(1) 8M x 64

(1) 8M x 64

136MB

(1) 16M x 64

(1) 1M x 64

144MB

(1) 16M x 64

(1) 2M x 64

160MB

(1) 16M x 64

(1) 4M x 64

192MB

(1) 16M x 64

(1) 8M x 64

256MB

(1) 16M x 64

(1) 16M x 64

Note: Board accepts SDRAM memory.

CACHE CONFIGURATION

Size

Bank 0

Bank 1

TAG

256KB

(2) 32K x 32

None

(1) 32K x 8

512KB

(2) 64K x 32

None

(1) 32K x 8

512KB

(2) 32K x 32

(2) 32K x 32

(1) 32K x 8

1MB

(2) 64K x 32

(2) 64K x 32

(1) 32K x 8

VIDEO MEMORY CONFIGURATION

Note: The chip size for the video memory is unidentified.

CPU SPEED SELECTION (CX 6X86)

CPU speed

Clock speed

Multiplier

CLK1

CLK2

CLK3

FREQ1

FREQ2

FREQ3

133MHz

55MHz

2x

1 & 2

2 & 3

2 & 3

2 & 3

1 & 2

1 & 2

150MHz

60MHz

2x

1 & 2

1 & 2

2 & 3

2 & 3

1 & 2

1 & 2

166MHz

66MHz

2x

1 & 2

1 & 2

1 & 2

2 & 3

1 & 2

1 & 2

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (IBM 6X86)

CPU speed

Clock speed

Multiplier

CLK1

CLK2

CLK3

FREQ1

FREQ2

FREQ3

133MHz

55MHz

2x

1 & 2

2 & 3

2 & 3

2 & 3

1 & 2

1 & 2

150MHz

60MHz

2x

1 & 2

1 & 2

2 & 3

2 & 3

1 & 2

1 & 2

166MHz

66MHz

2x

1 & 2

1 & 2

1 & 2

2 & 3

1 & 2

1 & 2

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (CX 6X86L)

CPU speed

Clock speed

Multiplier

CLK1

CLK2

CLK3

FREQ1

FREQ2

FREQ3

133MHz

55MHz

2x

1 & 2

2 & 3

2 & 3

2 & 3

1 & 2

1 & 2

150MHz

60MHz

2x

1 & 2

1 & 2

2 & 3

2 & 3

1 & 2

1 & 2

166MHz

66MHz

2x

1 & 2

1 & 2

1 & 2

2 & 3

1 & 2

1 & 2

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (IBM 6X86L)

CPU speed

Clock speed

Multiplier

CLK1

CLK2

CLK3

FREQ1

FREQ2

FREQ3

133MHz

55MHz

2x

1 & 2

2 & 3

2 & 3

2 & 3

1 & 2

1 & 2

150MHz

60MHz

2x

1 & 2

1 & 2

2 & 3

2 & 3

1 & 2

1 & 2

166MHz

66MHz

2x

1 & 2

1 & 2

1 & 2

2 & 3

1 & 2

1 & 2

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (CX 6X86MX)

CPU speed

Clock speed

Multiplier

CLK1

CLK2

CLK3

FREQ1

FREQ2

FREQ3

166MHz

66MHz

2x

1 & 2

1 & 2

1 & 2

2 & 3

1 & 2

1 & 2

166MHz

55MHz

2.5x

1 & 2

2 & 3

2 & 3

2 & 3

2 & 3

1 & 2

166MHz

60MHz

2.5x

1 & 2

1 & 2

2 & 3

2 & 3

2 & 3

1 & 2

200MHz

55MHz

3x

1 & 2

2 & 3

2 & 3

1 & 2

2 & 3

1 & 2

200MHz

66MHz

2.5x

1 & 2

1 & 2

1 & 2

2 & 3

2 & 3

1 & 2

200MHz

66MHz

3x

1 & 2

1 & 2

1 & 2

1 & 2

2 & 3

1 & 2

233MHz

66MHz

3x

1 & 2

1 & 2

1 & 2

1 & 2

2 & 3

1 & 2

266MHz

66MHz

3.5x

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (IBM 6X86MX)

CPU speed

Clock speed

Multiplier

CLK1

CLK2

CLK3

FREQ1

FREQ2

FREQ3

166MHz

66MHz

2x

1 & 2

1 & 2

1 & 2

2 & 3

1 & 2

1 & 2

166MHz

55MHz

2.5x

1 & 2

2 & 3

2 & 3

2 & 3

2 & 3

1 & 2

166MHz

60MHz

2.5x

1 & 2

1 & 2

2 & 3

2 & 3

2 & 3

1 & 2

200MHz

55MHz

3x

1 & 2

2 & 3

2 & 3

1 & 2

2 & 3

1 & 2

200MHz

66MHz

2.5x

1 & 2

1 & 2

1 & 2

2 & 3

2 & 3

1 & 2

200MHz

66MHz

3x

1 & 2

1 & 2

1 & 2

1 & 2

2 & 3

1 & 2

233MHz

66MHz

3x

1 & 2

1 & 2

1 & 2

1 & 2

2 & 3

1 & 2

266MHz

66MHz

3.5x

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (AM K5)

CPU speed

Clock speed

Multiplier

CLK1

CLK2

CLK3

FREQ1

FREQ2

FREQ3

90MHz

60MHz

1.5x

1 & 2

1 & 2

2 & 3

1 & 2

1 & 2

1 & 2

100MHz

66MHz

1.5x

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

120MHz

60MHz

1.5x

1 & 2

1 & 2

2 & 3

1 & 2

1 & 2

1 & 2

133MHz

66MHz

1.5x

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

150MHz

60MHz

1.75x

1 & 2

1 & 2

2 & 3

2 & 3

2 & 3

1 & 2

166MHz

66MHz

1.75x

1 & 2

1 & 2

1 & 2

2 & 3

2 & 3

1 & 2

200MHz

66MHz

2x

1 & 2

1 & 2

1 & 2

1 & 2

2 & 3

2 & 3

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (AM K6)

CPU speed

Clock speed

Multiplier

CLK1

CLK2

CLK3

FREQ1

FREQ2

FREQ3

166MHz

66MHz

2.5x

1 & 2

1 & 2

1 & 2

2 & 3

2 & 3

1 & 2

200MHz

66MHz

3x

1 & 2

1 & 2

1 & 2

1 & 2

2 & 3

1 & 2

233MHz

66MHz

3.5x

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

266MHz

66MHz

4x

1 & 2

1 & 2

1 & 2

2 & 3

1 & 2

2 & 3

300MHz

66MHz

4.5x

1 & 2

1 & 2

1 & 2

2 & 3

2 & 3

2 & 3

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (INTEL)

CPU speed

Clock speed

Multiplier

CLK1

CLK2

CLK3

FREQ1

FREQ2

FREQ3

90MHz

60MHz

1.5x

1 & 2

1 & 2

2 & 3

1 & 2

1 & 2

1 & 2

100MHz

66MHz

1.5x

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

120MHz

60MHz

2x

1 & 2

1 & 2

2 & 3

2 & 3

1 & 2

1 & 2

133MHz

66MHz

2x

1 & 2

1 & 2

1 & 2

2 & 3

1 & 2

1 & 2

150MHz

60MHz

2.5x

1 & 2

1 & 2

2 & 3

2 & 3

2 & 3

1 & 2

166MHz

66MHz

2.5x

1 & 2

1 & 2

1 & 2

2 & 3

2 & 3

1 & 2

200MHz

66MHz

3x

1 & 2

1 & 2

1 & 2

1 & 2

2 & 3

1 & 2

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (INTEL MMX)

CPU speed

Clock speed

Multiplier

CLK1

CLK2

CLK3

FREQ1

FREQ2

FREQ3

166MHz

66MHz

2.5x

1 & 2

1 & 2

1 & 2

2 & 3

2 & 3

1 & 2

200MHz

66MHz

3x

1 & 2

1 & 2

1 & 2

1 & 2

2 & 3

1 & 2

233MHz

66MHz

3.5x

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

Note: Pins designated should be in the closed position.

CPU VOLTAGE SELECTION (SINGLE)

Voltage

VR1

VR2

3.3v

Pins 3 & 4 closed

Open

3.5v

Pins 1 & 2 closed

Open

CPU VOLTAGE SELECTION (DUAL)

Voltage

V core

VR1

VR2

3.3v

2.1v

Pins 11 & 12 closed

Pins 1 & 2, 3 & 4 closed

3.3v

2.8v

Pins 9 & 10 closed

Pins 1 & 2, 3 & 4 closed

3.3v

2.9v

Pins 7 & 8 closed

Pins 1 & 2, 3 & 4 closed

3.3v

3.2v

Pins 5 & 6 closed

Pins 1 & 2, 3 & 4 closed

FLASH BIOS SELECTION

Type

EP1

EP2

AMD 28F010A

Pins 1 & 2 closed

Pins 1 & 2 closed

AMD 28F020

Pins 1 & 2 closed

Pins 2 & 3 closed

ATMEL 29C010A

Pins 1 & 2 closed

Pins 1 & 2 closed

ATMEL AT29C020

Pins 1 & 2 closed

Pins 2 & 3 closed

Intel 28F001

Pins 2 & 3 closed

Open

Intel 28F002

Pins 2 & 3 closed

Pins 2 & 3 closed

MXIC MX28F1000P

Pins 2 & 3 closed

Open

MXIC MX28F2000P

Pins 2 & 3 closed

Pins 2 & 3 closed

SST 29EE010

Pins 1 & 2 closed

Pins 1 & 2 closed

SST 29EE020

Pins 1 & 2 closed

Pins 2 & 3 closed

Device Type	Mainboard
Processor	CX 6X86/IBM 6X86/CX 6X86L/IBM 6X86L/CX 686MX/IBM 6X86MX/ AM K5/AM K6/Pentium
Processor Speed	90/100/120/133/150/166/200/233/266/300MHz
Chip Set	VIA
Video Chip Set	S3
Maximum Onboard Memory	256MB (EDO & SDRAM supported)
Maximum Video Memory	2MB
Cache	256/512/1024KB
BIOS	Award
Dimensions	254mm x 218mm
I/O Options	Floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), VGA feature connector, VGA port, riser slot, IR connector, USB connector
NPU Options	None

CONNECTIONS
Purpose	Location	Purpose	Location
Power LED & keylock	C1/pins 1 - 5	Serial port 2	CN3
Turbo LED	C1/pins 6 & 7	Serial port 1	CN4
Green PC connector	C1/pins 8 & 9	PS/2 mouse port	CN5
Green PC LED	C1/pins 10 & 11	Floppy drive interface	CN6
Speaker	C1/pins 12 - 15	IDE interface 1	CN7
IDE interface LED	C1/pins 16 & 17	IDE interface 2	CN8
Soft off power supply	C1/pins 18 & 19	USB connector	CN9
Reset switch	C1/pins 20 & 21	VGA feature connector	CN10
External battery	C2	CPU fan power	CPU
Chassis fan power	CHA	IR connector	IR1
Chassis alarm connector	CHS	Wake on LAN connector	LAN
VGA port	CN1	Remote power connector	RPW
Parallel port	CN2	Riser slot	SL1

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Password disabled	CPW	Open
	Password enabled	CPW	Closed
»	Burst type select Intel	SRAM	Pins 1 & 2 closed
	Burst type select linear	SRAM	Pins 2 & 3 closed
»	On board video enabled	VGA1	Pins 1 & 2 closed
	On board video disabled	VGA1	Pins 2 & 3 closed

SIMM CONFIGURATION
Size	Bank 0
8MB	(2) 1M x 36
16MB	(2) 2M x 36
32MB	(2) 4M x 36
64MB	(2) 8M x 36
128MB	(2) 16M x 36
256MB	(2) 32M x 36
Note: Board accepts EDO memory.

DIMM CONFIGURATION
Size	Bank 1	Bank 2
8MB	(1) 1M x 64	None
16MB	(1) 2M x 64	None
16MB	(1) 1M x 64	(1) 1M x 64
24MB	(1) 2M x 64	(1) 1M x 64
32MB	(1) 4M x 64	None
32MB	(1) 2M x 64	(1) 2M x 64
40MB	(1) 4M x 64	(1) 1M x 64
48MB	(1) 4M x 64	(1) 2M x 64
64MB	(1) 8M x 64	None
64MB	(1) 4M x 64	(1) 4M x 64
72MB	(1) 8M x 64	(1) 1M x 64
80MB	(1) 8M x 64	(1) 2M x 64
96MB	(1) 8M x 64	(1) 4M x 64
128MB	(1) 16M x 64	None
128MB	(1) 8M x 64	(1) 8M x 64
136MB	(1) 16M x 64	(1) 1M x 64
144MB	(1) 16M x 64	(1) 2M x 64
160MB	(1) 16M x 64	(1) 4M x 64
192MB	(1) 16M x 64	(1) 8M x 64
256MB	(1) 16M x 64	(1) 16M x 64
Note: Board accepts SDRAM memory.

CACHE CONFIGURATION
Size	Bank 0	Bank 1	TAG
256KB	(2) 32K x 32	None	(1) 32K x 8
512KB	(2) 64K x 32	None	(1) 32K x 8
512KB	(2) 32K x 32	(2) 32K x 32	(1) 32K x 8
1MB	(2) 64K x 32	(2) 64K x 32	(1) 32K x 8

CPU SPEED SELECTION (CX 6X86)
CPU speed	Clock speed	Multiplier	CLK1	CLK2	CLK3	FREQ1	FREQ2	FREQ3
133MHz	55MHz	2x	1 & 2	2 & 3	2 & 3	2 & 3	1 & 2	1 & 2
150MHz	60MHz	2x	1 & 2	1 & 2	2 & 3	2 & 3	1 & 2	1 & 2
166MHz	66MHz	2x	1 & 2	1 & 2	1 & 2	2 & 3	1 & 2	1 & 2
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (IBM 6X86)
CPU speed	Clock speed	Multiplier	CLK1	CLK2	CLK3	FREQ1	FREQ2	FREQ3
133MHz	55MHz	2x	1 & 2	2 & 3	2 & 3	2 & 3	1 & 2	1 & 2
150MHz	60MHz	2x	1 & 2	1 & 2	2 & 3	2 & 3	1 & 2	1 & 2
166MHz	66MHz	2x	1 & 2	1 & 2	1 & 2	2 & 3	1 & 2	1 & 2
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (CX 6X86L)
CPU speed	Clock speed	Multiplier	CLK1	CLK2	CLK3	FREQ1	FREQ2	FREQ3
133MHz	55MHz	2x	1 & 2	2 & 3	2 & 3	2 & 3	1 & 2	1 & 2
150MHz	60MHz	2x	1 & 2	1 & 2	2 & 3	2 & 3	1 & 2	1 & 2
166MHz	66MHz	2x	1 & 2	1 & 2	1 & 2	2 & 3	1 & 2	1 & 2
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (IBM 6X86L)
CPU speed	Clock speed	Multiplier	CLK1	CLK2	CLK3	FREQ1	FREQ2	FREQ3
133MHz	55MHz	2x	1 & 2	2 & 3	2 & 3	2 & 3	1 & 2	1 & 2
150MHz	60MHz	2x	1 & 2	1 & 2	2 & 3	2 & 3	1 & 2	1 & 2
166MHz	66MHz	2x	1 & 2	1 & 2	1 & 2	2 & 3	1 & 2	1 & 2
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (CX 6X86MX)
CPU speed	Clock speed	Multiplier	CLK1	CLK2	CLK3	FREQ1	FREQ2	FREQ3
166MHz	66MHz	2x	1 & 2	1 & 2	1 & 2	2 & 3	1 & 2	1 & 2
166MHz	55MHz	2.5x	1 & 2	2 & 3	2 & 3	2 & 3	2 & 3	1 & 2
166MHz	60MHz	2.5x	1 & 2	1 & 2	2 & 3	2 & 3	2 & 3	1 & 2
200MHz	55MHz	3x	1 & 2	2 & 3	2 & 3	1 & 2	2 & 3	1 & 2
200MHz	66MHz	2.5x	1 & 2	1 & 2	1 & 2	2 & 3	2 & 3	1 & 2
200MHz	66MHz	3x	1 & 2	1 & 2	1 & 2	1 & 2	2 & 3	1 & 2
233MHz	66MHz	3x	1 & 2	1 & 2	1 & 2	1 & 2	2 & 3	1 & 2
266MHz	66MHz	3.5x	1 & 2	1 & 2	1 & 2	1 & 2	1 & 2	1 & 2
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (IBM 6X86MX)
CPU speed	Clock speed	Multiplier	CLK1	CLK2	CLK3	FREQ1	FREQ2	FREQ3
166MHz	66MHz	2x	1 & 2	1 & 2	1 & 2	2 & 3	1 & 2	1 & 2
166MHz	55MHz	2.5x	1 & 2	2 & 3	2 & 3	2 & 3	2 & 3	1 & 2
166MHz	60MHz	2.5x	1 & 2	1 & 2	2 & 3	2 & 3	2 & 3	1 & 2
200MHz	55MHz	3x	1 & 2	2 & 3	2 & 3	1 & 2	2 & 3	1 & 2
200MHz	66MHz	2.5x	1 & 2	1 & 2	1 & 2	2 & 3	2 & 3	1 & 2
200MHz	66MHz	3x	1 & 2	1 & 2	1 & 2	1 & 2	2 & 3	1 & 2
233MHz	66MHz	3x	1 & 2	1 & 2	1 & 2	1 & 2	2 & 3	1 & 2
266MHz	66MHz	3.5x	1 & 2	1 & 2	1 & 2	1 & 2	1 & 2	1 & 2
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (AM K5)
CPU speed	Clock speed	Multiplier	CLK1	CLK2	CLK3	FREQ1	FREQ2	FREQ3
90MHz	60MHz	1.5x	1 & 2	1 & 2	2 & 3	1 & 2	1 & 2	1 & 2
100MHz	66MHz	1.5x	1 & 2	1 & 2	1 & 2	1 & 2	1 & 2	1 & 2
120MHz	60MHz	1.5x	1 & 2	1 & 2	2 & 3	1 & 2	1 & 2	1 & 2
133MHz	66MHz	1.5x	1 & 2	1 & 2	1 & 2	1 & 2	1 & 2	1 & 2
150MHz	60MHz	1.75x	1 & 2	1 & 2	2 & 3	2 & 3	2 & 3	1 & 2
166MHz	66MHz	1.75x	1 & 2	1 & 2	1 & 2	2 & 3	2 & 3	1 & 2
200MHz	66MHz	2x	1 & 2	1 & 2	1 & 2	1 & 2	2 & 3	2 & 3
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (AM K6)
CPU speed	Clock speed	Multiplier	CLK1	CLK2	CLK3	FREQ1	FREQ2	FREQ3
166MHz	66MHz	2.5x	1 & 2	1 & 2	1 & 2	2 & 3	2 & 3	1 & 2
200MHz	66MHz	3x	1 & 2	1 & 2	1 & 2	1 & 2	2 & 3	1 & 2
233MHz	66MHz	3.5x	1 & 2	1 & 2	1 & 2	1 & 2	1 & 2	1 & 2
266MHz	66MHz	4x	1 & 2	1 & 2	1 & 2	2 & 3	1 & 2	2 & 3
300MHz	66MHz	4.5x	1 & 2	1 & 2	1 & 2	2 & 3	2 & 3	2 & 3
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (INTEL)
CPU speed	Clock speed	Multiplier	CLK1	CLK2	CLK3	FREQ1	FREQ2	FREQ3
90MHz	60MHz	1.5x	1 & 2	1 & 2	2 & 3	1 & 2	1 & 2	1 & 2
100MHz	66MHz	1.5x	1 & 2	1 & 2	1 & 2	1 & 2	1 & 2	1 & 2
120MHz	60MHz	2x	1 & 2	1 & 2	2 & 3	2 & 3	1 & 2	1 & 2
133MHz	66MHz	2x	1 & 2	1 & 2	1 & 2	2 & 3	1 & 2	1 & 2
150MHz	60MHz	2.5x	1 & 2	1 & 2	2 & 3	2 & 3	2 & 3	1 & 2
166MHz	66MHz	2.5x	1 & 2	1 & 2	1 & 2	2 & 3	2 & 3	1 & 2
200MHz	66MHz	3x	1 & 2	1 & 2	1 & 2	1 & 2	2 & 3	1 & 2
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (INTEL MMX)
CPU speed	Clock speed	Multiplier	CLK1	CLK2	CLK3	FREQ1	FREQ2	FREQ3
166MHz	66MHz	2.5x	1 & 2	1 & 2	1 & 2	2 & 3	2 & 3	1 & 2
200MHz	66MHz	3x	1 & 2	1 & 2	1 & 2	1 & 2	2 & 3	1 & 2
233MHz	66MHz	3.5x	1 & 2	1 & 2	1 & 2	1 & 2	1 & 2	1 & 2
Note: Pins designated should be in the closed position.

CPU VOLTAGE SELECTION (SINGLE)
Voltage	VR1	VR2
3.3v	Pins 3 & 4 closed	Open
3.5v	Pins 1 & 2 closed	Open

CPU VOLTAGE SELECTION (DUAL)
Voltage	V core	VR1	VR2
3.3v	2.1v	Pins 11 & 12 closed	Pins 1 & 2, 3 & 4 closed
3.3v	2.8v	Pins 9 & 10 closed	Pins 1 & 2, 3 & 4 closed
3.3v	2.9v	Pins 7 & 8 closed	Pins 1 & 2, 3 & 4 closed
3.3v	3.2v	Pins 5 & 6 closed	Pins 1 & 2, 3 & 4 closed

FLASH BIOS SELECTION
Type	EP1	EP2
AMD 28F010A	Pins 1 & 2 closed	Pins 1 & 2 closed
AMD 28F020	Pins 1 & 2 closed	Pins 2 & 3 closed
ATMEL 29C010A	Pins 1 & 2 closed	Pins 1 & 2 closed
ATMEL AT29C020	Pins 1 & 2 closed	Pins 2 & 3 closed
Intel 28F001	Pins 2 & 3 closed	Open
Intel 28F002	Pins 2 & 3 closed	Pins 2 & 3 closed
MXIC MX28F1000P	Pins 2 & 3 closed	Open
MXIC MX28F2000P	Pins 2 & 3 closed	Pins 2 & 3 closed
SST 29EE010	Pins 1 & 2 closed	Pins 1 & 2 closed
SST 29EE020	Pins 1 & 2 closed	Pins 2 & 3 closed
