HEWLETT-PACKARD COMPANY
HP VECTRA VL6/XXX SERIES 6
|
Device Type |
Mainboard |
|
Processor |
Pentium II |
|
Processor Speed |
233/266MHz |
|
Chip Set |
Intel |
|
Video Chip Set |
Unidentified |
|
Maximum Onboard Memory |
192MB (EDO supported) |
|
Maximum Video Memory |
Unidentified |
|
Cache |
256/512KB (located on Pentium II CPU) |
|
BIOS |
Unidentified |
|
Dimensions |
342mm x 210mm |
|
I/O Options |
Floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), VGA feature connector, VGA port, riser slot, USB connectors (2) |
|
NPU Options |
None |
|

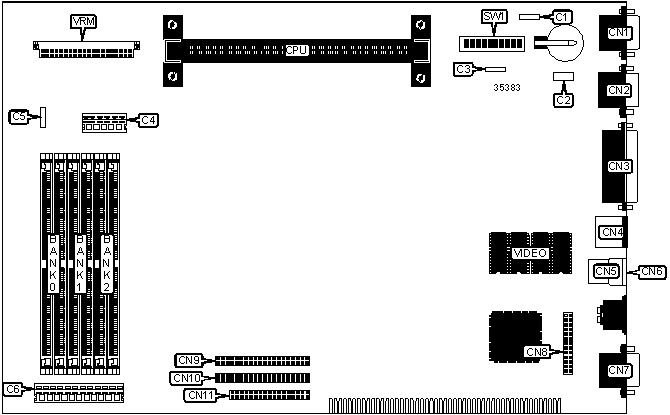

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
External battery |
C1 |
PS/2 mouse port |
CN4 |
|
External start connector |
C2 |
USB connector 1 |
CN5 |
|
Speaker |
C3 |
USB connector 2 |
CN6 |
|
3.3v auxiliary power |
C4 |
VGA port |
CN7 |
|
Status panel connector |
C5 |
VGA feature connector |
CN8 |
|
5v power |
C6 |
IDE interface |
CN9 |
|
Serial port 2 |
CN1 |
IDE interface |
CN10 |
|
Serial port 1 |
CN2 |
Floppy drive interface |
CN11 |
|
Parallel port |
CN3 |
VRM connector |
VRM |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
|
» |
CMOS memory normal operation |
SW1/6 |
Off |
|
CMOS memory clear |
SW1/6 |
On | |
|
» |
Password normal operation |
SW1/7 |
Off |
|
Password clear |
SW1/7 |
On | |
|
» |
Keyboard power down disabled |
SW1/8 |
Off |
|
Keyboard power down enabled |
SW1/8 |
On | |
|
» |
Factory configured - do not alter |
SW1/9 |
Off |
|
» |
Factory configured - do not alter |
SW1/10 |
Off |
|
SIMM CONFIGURATION | |||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
|
16MB |
(2) 2M x 36 |
None |
None |
|
32MB |
(2) 2M x 36 |
(2) 2M x 36 |
None |
|
32MB |
(2) 4M x 36 |
None |
None |
|
48MB |
(2) 2M x 36 |
(2) 2M x 36 |
(2) 2M x 36 |
|
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
None |
|
64MB |
(2) 8M x 36 |
None |
None |
|
96MB |
(2) 4M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
|
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
None |
|
128MB |
(2) 16M x 36 |
None |
None |
|
144MB |
(2) 16M x 36 |
(2) 2M x 36 |
None |
|
160MB |
(2) 16M x 36 |
(2) 2M x 36 |
(2) 2M x 36 |
|
160MB |
(2) 16M x 36 |
(2) 4M x 36 |
None |
|
192MB |
(2) 16M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
|
192MB |
(2) 16M x 36 |
(2) 8M x 36 |
None |
|
192MB |
(2) 8M x 36 |
(2) 8M x 36 |
(2) 8M x 36 |
|
Note: Board accepts EDO memory. | |||
|
CACHE CONFIGURATION |
|
Note: 256KB/512KB cache is located on the Pentium II CPU. |
|
VIDEO MEMORY CONFIGURATION |
|
Note: The size of the video memory is unidentified. |
|
CPU SPEED SELECTION | |||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
|
233MHz |
66MHz |
3.5x |
Off |
Off |
Off |
On |
On |
|
266MHz |
66MHz |
4x |
Off |
Off |
On |
Off |
Off |
