JOINDATA SYSTEMS, INC.
G386SYM
|
Processor |
80386DX |
|
Processor Speed |
25MHz |
|
Chip Set |
Symphony |
|
Max. Onboard DRAM |
32MB |
|
Cache |
None |
|
BIOS |
AMI |
|
Dimensions |
240mm x 230mm |
|
I/O Options |
None |
|
NPU Options |
80387/3167 |
|

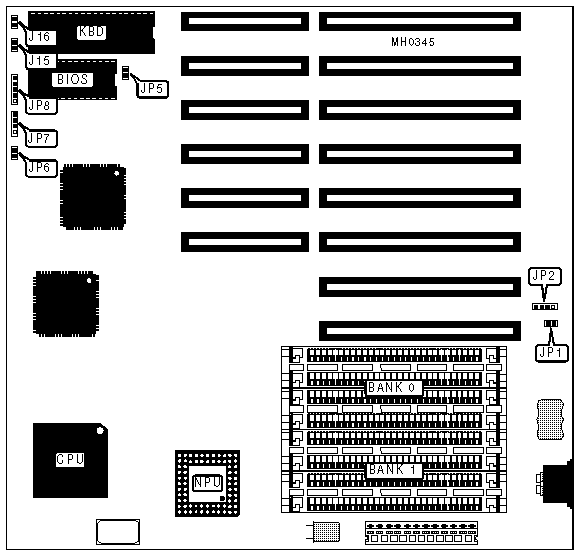

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Turbo switch |
J15 |
Reset switch |
JP6 |
|
Turbo LED |
J16 |
Speaker |
JP7 |
|
External battery |
JP2 |
Power LED & keylock |
JP8 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
| » |
CMOS memory normal operation |
JP1 |
Closed |
|
CMOS memory clear |
JP1 |
Open | |
| » |
Monitor type select color |
JP5 |
Closed |
|
Monitor type select monochrome |
JP5 |
Open | |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
1MB |
(4) 256K x 9 |
NONE |
|
2MB |
(4) 256K x 9 |
(4) 256K x 9 |
|
4MB |
(4) 1M x 9 |
NONE |
|
5MB |
(4) 256K x 9 |
(4) 1M x 9 |
|
8MB |
(4) 1M x 9 |
(4) 1M x 9 |
|
16MB |
(4) 4M x 9 |
NONE |
|
17MB |
(4) 256K x 9 |
(4) 4M x 9 |
|
20MB |
(4) 1M x 9 |
(4) 4M x 9 |
|
32MB |
(4) 4M x 9 |
(4) 4M x 9 |
