Processor	80486DX
Processor Speed	33MHz
Chip Set	OPTI
Max. Onboard DRAM	32MB
Cache	32/64/128/256KB
BIOS	AMI
Dimensions	331mm x 218mm
I/O Options	32-bit external memory card slot
NPU Options	4167

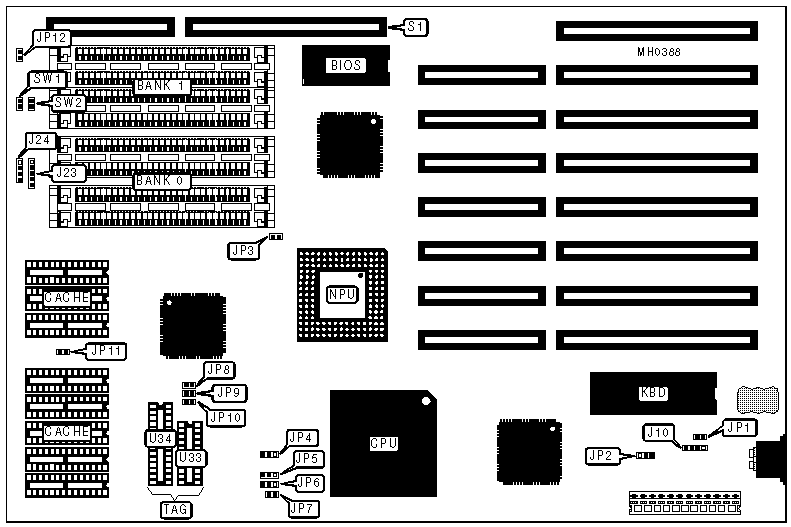

CONNECTIONS
Purpose	Location	Purpose	Location
External battery	J10	32-bit external memory card	S1
Power LED & keylock	J23	Reset switch	SW1
Speaker	J24	Turbo switch	SW2
Turbo LED	JP12

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	Monitor type select monochrome	JP1	Open
	Monitor type select color	JP1	Closed
»	CMOS memory normal operation (internal battery)	JP2	pins 2 & 3 closed
	CMOS memory clear	JP2	pins 1 & 2 closed
	CMOS memory normal operation (external battery)	JP2	Open
»	Bus speed select ATCLK/4	JP3	Open
	Bus speed select ATCLK/6	JP3	Closed
»	Factory configured - do not alter	JP4	N/A
»	Factory configured - do not alter	JP5	N/A
»	Factory configured - do not alter	JP6	N/A
»	Factory configured - do not alter	JP7	N/A

DRAM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2	Bank 3
4MB	(4) 1M x 9	NONE	NONE	NONE
8MB	(4) 1M x 9	(4) 1M x 9	NONE	NONE
12MB	(4) 1M x 9	(4) 1M x 9	(4) 1M x 9	NONE
16MB	(4) 1M x 9	(4) 1M x 9	(4) 1M x 9	(4) 1M x 9
16MB	(4) 4M x 9	NONE	NONE	NONE
20MB	(4) 1M x 9	(4) 4M x 9	NONE	NONE
24MB	(4) 1M x 9	(4) 1M x 9	(4) 4M x 9	NONE
28MB	(4) 4M x 9	(4) 1M x 9	(4) 1M x 9	(4) 1M x 9
32MB	(4) 4M x 9	(4) 4M x 9	NONE	NONE
36MB	(4) 1M x 9	(4) 4M x 9	(4) 4M x 9	NONE
40MB	(4) 1M x 9	(4) 1M x 9	(4) 4M x 9	(4) 4M x 9
48MB	(4) 4M x 9	(4) 4M x 9	(4) 4M x 9	NONE
52MB	(4) 1M x 9	(4) 4M x 9	(4) 4M x 9	(4) 4M x 9
64MB	(4) 4M x 9	(4) 4M x 9	(4) 4M x 9	(4) 4M x 9
Note:Banks 2 and 3 are used when 32-bit external memory card is installed at S1.

CACHE CONFIGURATION
Size	Bank 0	TAG (U34)	Dirty Bit (U33)
64KB	(8) 8K x 8	(1) 8K x 8	(1) 64K x 1
256KB	(8) 32K x 8	(1) 32K x 8	(1) 64K x 1

CACHE JUMPER CONFIGURATION
Size	JP8	JP9	JP10	JP11
64KB	Open	Open	Open	Open
256KB	Closed	Closed	Open	Closed
