Processor	80286
Processor Speed	16/20MHz
Chip Set	VLSI SCAMP
Max. Onboard DRAM	16MB
Cache	None
BIOS	Award
Dimensions	254mm x 220mm
I/O Options	None
NPU Options	80287

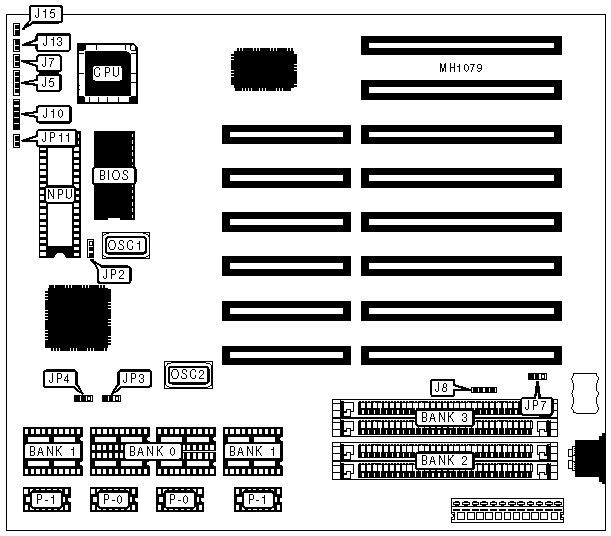

CONNECTIONS
Purpose	Location	Purpose	Location
Speaker	J5	Power LED & keylock	J10
External battery	J8	Turbo LED	J13
Turbo switch	J7	Reset switch	J15

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	NPU mode select synchronous with CPU	JP2	pins 1 & 2 closed
	NPU mode select synchronous with oscillator installed at OSC1	JP2	pins 2 & 3 closed
»	Battery type select internal	JP7	pins 2 & 3 closed
	Battery type select external	JP7	pins 1 & 2 closed
»	Monitor type select color	JP11	Closed
	Monitor type select monochrome	JP11	Open

DRAM CONFIGURATION
Size	Bank 0	P-0	Bank 1	P-1	Bank 2	Bank 3
512KB	(4) 44256	(2) 41256	NONE	NONE	NONE	NONE
512KB	NONE	NONE	NONE	NONE	(2) 256K x 9	NONE
1MB	(4) 44256	(2) 41256	(4) 44256	(2) 41256	NONE	NONE
1MB	NONE	NONE	NONE	NONE	(2) 256K x 9	(2) 256K x 9
2MB	(4) 44256	(2) 41256	(4) 44256	(2) 41256	(2) 256K x 9	(2) 256K x 9
2MB	NONE	NONE	NONE	NONE	(1) 1M x 9	NONE
4MB	NONE	NONE	NONE	NONE	(1) 1M x 9	(1) 1M x 9

DRAM JUMPER CONFIGURATION
Size	JP3	JP4
512KB	pins 2 & 3 closed	pins 2 & 3 closed
512KB	pins 1 & 2 closed	pins 1 & 2 closed
1MB	pins 2 & 3 closed	pins 2 & 3 closed
1MB	pins 1 & 2 closed	pins 1 & 2 closed
2MB	pins 2 & 3 closed	pins 2 & 3 closed
2MB	pins 1 & 2 closed	pins 1 & 2 closed
4MB	pins 1 & 2 closed	pins 1 & 2 closed
