INTEGRATED WORKSTATIONS, INC.
COMMUNIQUE 386
|
Processor |
80386SX |
|
Processor Speed |
16/20MHz |
|
Chip Set |
VLSI |
|
Max. Onboard DRAM |
32MB |
|
Cache |
None |
|
BIOS |
Quadtel |
|
Dimensions |
128mm x 365mm |
|
I/O Options |
Keyboard & monochrome video port, network interface controller, parallel port, serial port (2) |
|
NPU Options |
None |
|

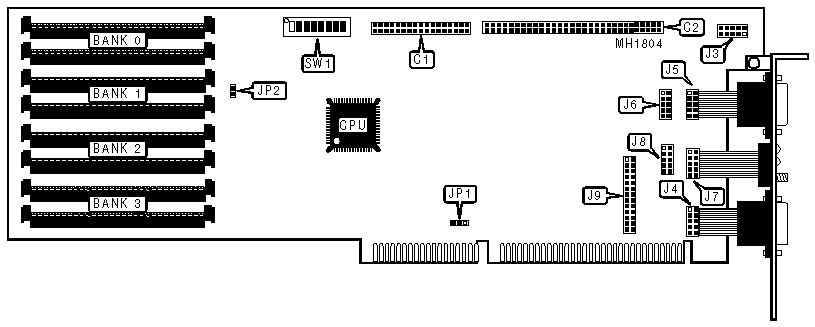

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Daughterboard |
C1 & C2 |
Reset switch & diagnostic LEDs |
J7 |
|
Serial port 1 |
J4 |
LAN connection |
J8 |
|
Keyboard & mono video port |
J5 |
Parallel port |
J9 |
|
Serial port 2 |
J6 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
|
» |
Factory configured - do not alter |
J3 |
7 & 8, 9 & 10 |
|
» |
Monochrome controller and LPT1 control enabled |
J3 |
1&2, 3&4, 5&6 closed |
|
Monochrome controller and LPT1 control disabled |
J3 |
1&2, 3&4, 5&6 open | |
|
» |
Host attention interrupt select IRQ10 at 0A Hex |
JP1 |
pins 1 & 2 closed |
|
Host attention interrupt select IRQ12 at 0A Hex |
JP1 |
pins 2 & 3 closed | |
|
» |
Zero wait state enabled |
JP2 |
Closed |
|
Zero wait state disabled |
JP2 |
Open | |
|
Note:Pins designated should be in the closed position unless otherwise specified. | |||
|
DRAM CONFIGURATION | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
1MB |
(2) 256K x 9 |
(2) 256K x 9 |
NONE |
NONE |
|
1.5MB |
(2) 256K x 9 |
(2) 256K x 9 |
(2) 256K x 9 |
NONE |
|
2MB |
(2) 256K x 9 |
(2) 256K x 9 |
(2) 256K x 9 |
(2) 256K x 9 |
|
2MB |
(2) 1M x 9 |
NONE |
NONE |
NONE |
|
3MB |
(2) 256K x 9 |
(2) 256K x 9 |
(2) 1M x 9 |
NONE |
|
4MB |
(2) 1M x 9 |
(2) 1M x 9 |
NONE |
NONE |
|
4.5MB |
(2) 1M x 9 |
(2) 1M x 9 |
(2) 256K x 9 |
NONE |
|
5MB |
(2) 256K x 9 |
(2) 256K x 9 |
(2) 1M x 9 |
(2) 1M x 9 |
|
6MB |
(2) 1M x 9 |
(2) 1M x 9 |
(2) 1M x 9 |
NONE |
|
8MB |
(2) 1M x 9 |
(2) 1M x 9 |
(2) 1M x 9 |
(2) 1M x 9 |
|
8MB |
(2) 4M x 9 |
NONE |
NONE |
NONE |
|
9MB |
(2) 256K x 9 |
(2) 256K x 9 |
(2) 4M x 9 |
NONE |
|
10MB |
(2) 1M x 9 |
(2) 4M x 9 |
NONE |
NONE |
|
12MB |
(2) 1M x 9 |
(2) 1M x 9 |
(2) 4M x 9 |
NONE |
|
16MB |
(2) 4M x 9 |
(2) 4M x 9 |
NONE |
NONE |
|
16.5MB |
(2) 4M x 9 |
(2) 4M x 9 |
(2) 256K x 9 |
NONE |
|
17MB |
(2) 256K x 9 |
(2) 256K x 9 |
(2) 4M x 9 |
(2) 4M x 9 |
|
18MB |
(2) 4M x 9 |
(2) 4M x 9 |
(2) 1M x 9 |
NONE |
|
20MB |
(2) 1M x 9 |
(2) 1M x 9 |
(2) 4M x 9 |
(2) 4M x 9 |
|
24MB |
(2) 4M x 9 |
(2) 4M x 9 |
(2) 4M x 9 |
NONE |
|
32MB |
(2) 4M x 9 |
(2) 4M x 9 |
(2) 4M x 9 |
(2) 4M x 9 |
|
MEMORY BASE ADDRESS | |||
|
Address |
SW1/switch 7 |
SW1/switch 8 | |
| » |
DC000h |
Off |
Off |
|
CC000h |
On |
Off | |
|
FCC000h |
On |
On | |
|
FDC000h |
Off |
On | |
|
NODE ID ADDRESS | ||||||
|
Node |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
|
0 |
Off |
Off |
Off |
Off |
Off |
Off |
|
1 |
On |
Off |
Off |
Off |
Off |
Off |
|
2 |
Off |
On |
Off |
Off |
Off |
Off |
|
3 |
On |
On |
Off |
Off |
Off |
Off |
|
4 |
Off |
Off |
On |
Off |
Off |
Off |
|
59 |
On |
On |
Off |
On |
On |
On |
|
60 |
Off |
Off |
On |
On |
On |
On |
|
61 |
On |
Off |
On |
On |
On |
On |
|
62 |
Off |
On |
On |
On |
On |
On |
|
63 |
On |
On |
On |
On |
On |
On |
|
Note:A total of 63 node address settings are available. The switches are a binary representation of the decimal node addresses, and have the following decimal values: 1=1, 2=2, 3=4, 4=8, 5=16, 6=32. Switches in the off position maintain a zero value. Sum total the switches in the on position to obtain the correct node address. Node 0 is a non-valid address. | ||||||
