J-MARK COMPUTER CORPORATION
386P25
|
Processor |
80386DX |
|
Processor Speed |
25MHz |
|
Chip Set |
OPTI |
|
Max. Onboard DRAM |
16MB (8MB on external memory card) |
|
Cache |
None |
|
BIOS |
AMI |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
32-bit external memory card |
|
NPU Options |
80387DX/3167 |
|

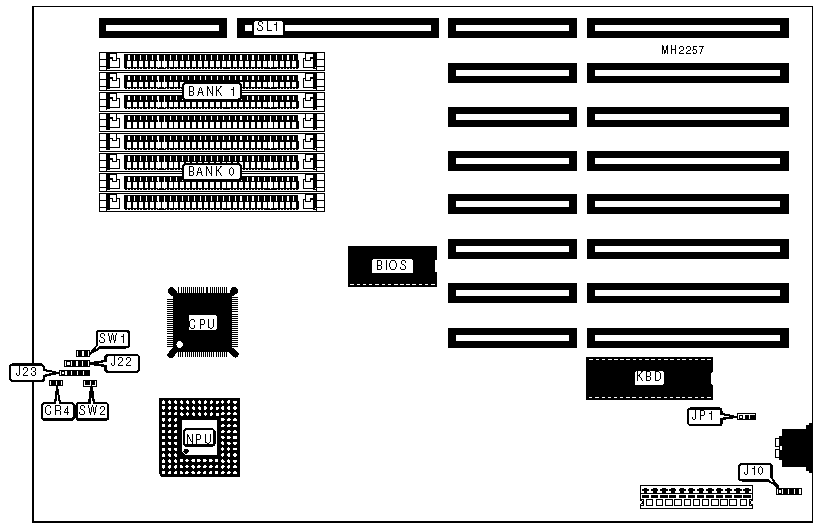

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Turbo LED |
CR4 |
Reset switch |
SW1 |
|
External battery |
J10 |
Turbo switch |
SW2 |
|
Speaker |
J22 |
32-bit external memory card |
SL1 |
|
Power LED & keylock |
J23 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
|
» |
Monitor type select monochrome |
JP1 |
pins 2 & 3 closed |
|
Monitor type select color |
JP1 |
pins 1 & 2 closed | |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
1MB |
(4) 256K x 9 |
NONE |
|
2MB |
(4) 256K x 9 |
(4) 256K x 9 |
|
4MB |
(4) 1M x 9 |
NONE |
|
5MB |
(4) 256K x 9 |
(4) 1M x 9 |
|
8MB |
(4) 1M x 9 |
(4) 1M x 9 |
