Processor	80386SX
Processor Speed	16/20MHz
Chip Set	SMD
Max. Onboard DRAM	16MB
Cache	None
BIOS	NCR
Dimensions	330mm x 218mm
I/O Options	Floppy drive interface, IDE interface, parallel port, serial ports (2), VGA port
NPU Options	80387SX

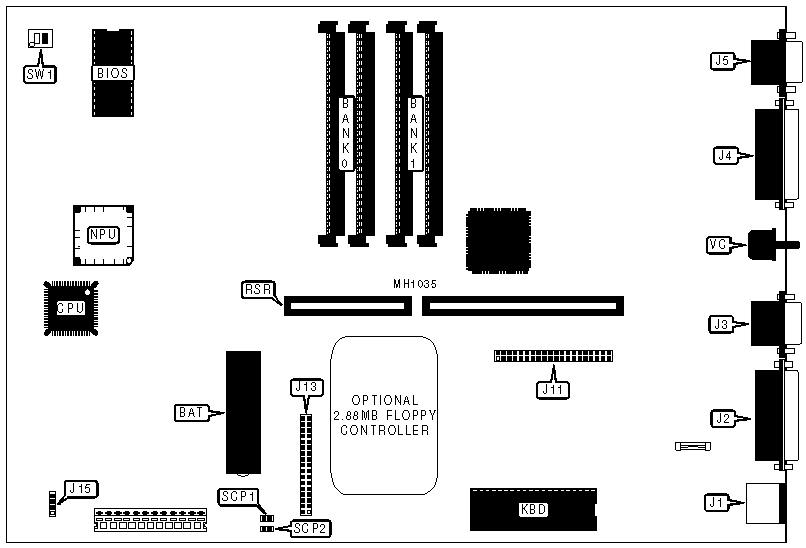

CONNECTIONS
Purpose	Location	Purpose	Location
Battery	BAT	IDE interface	J11
Keyboard	J1	Floppy drive interface	J13
Serial port 2	J2	Power LED & IDE interface LED	J15
Serial port 1	J3	Riser card	RSR
Parallel port	J4	Speaker volume control	VC
VGA interface	J5

USER CONFIGURABLE SETTINGS
Function		Jumper/Switch	Position
»	Password check enabled	SCP1 & SCP2	Open
	Password clear	SCP1 & SCP2	Closed
»	VGA interface enabled	SW1/1	Off
	VGA interface disabled	SW1/1	On
»	Monitor type select color	SW1/2	On
	Monitor type select monochrome	SW1/2	Off

DRAM CONFIGURATION
Size	Bank 0	Bank 1
1MB	NONE	NONE
3MB	(2) 1M x 9	NONE
5MB	(2) 1M x 9	(2) 1M x 9
9MB	(2) 4M x 9	NONE
16MB	(2) 4M x 9	(2) 4M x 9
