Processor	80386DX
Processor Speed	33/40MHz
Chip Set	ETEQ
Max. Onboard DRAM	32MB
SRAM Cache	64/256KB
Dimensions	330.2mm x 218.4mm
BIOS	AMI
I/O Options	None
NPU Options	80387/3167

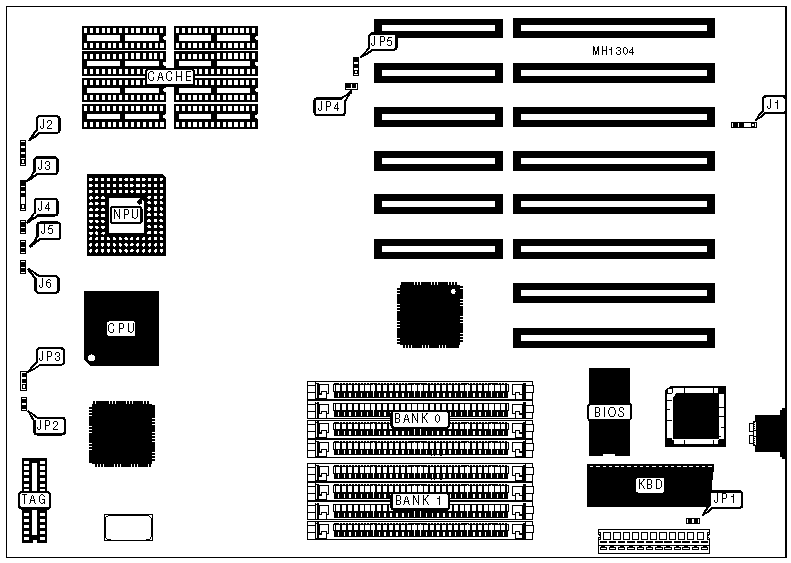

CONNECTIONS
Purpose	Location	Purpose	Location
External battery	J1	Turbo switch	J4
Speaker	J2	Turbo LED	J5
Power LED & keylock	J3	Reset switch	J6

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	CPU speed select switchable from turbo switch	JP1	open
»	CPU speed select switchable from turbo switch or keyboard	JP1	closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1
1MB	(4) 256K x 9	NONE
2MB	(4) 256K x 9	(4) 256K x 9
4MB	(4) 1M x 9	NONE
8MB	(4) 1M x 9	(4) 1M x 9
16MB	(4) 4M x 9	NONE
32MB	(4) 4M x 9	(4) 4M x 9

SRAM CONFIGURATION
Size	Cache	TAG	JP2 & JP4	JP3	JP5
64KB	(8) 8K x 8	(1) 8K x 8	open	pins 1 & 2 closed	pins 1 & 2 closed
256KB	(8) 32K x 8	(1) 32K x 8	closed	pins 2 & 3 closed	pins 1 & 2 closed
