PIONEER COMPUTER, INC.
VANTAGE 486WB 25/33/50
|
Processor |
80486DX |
|
Processor Speed |
25/33/50MHz |
|
Chip Set |
OPTI |
|
Max. Onboard DRAM |
32MB |
|
Cache |
64/256KB |
|
BIOS |
AMI |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
None |
|
NPU Options |
4167 |
|

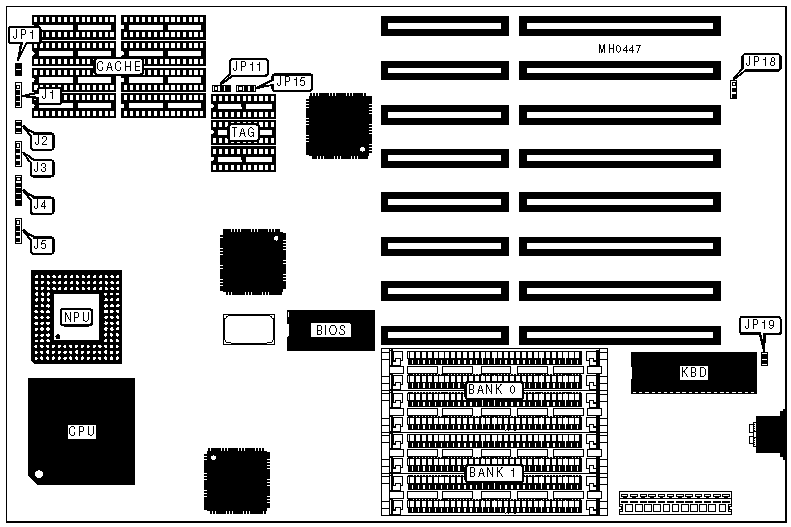

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Turbo LED |
J1 |
Power LED & keylock |
J4 |
|
Reset switch |
J2 |
External battery |
J5 |
|
Speaker |
J3 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
| » |
CMOS memory normal operation |
JP18 |
pins 1 & 2 closed |
|
CMOS memory clear |
JP18 |
pins 2 & 3 closed | |
| » |
Factory configured - do not alter |
JP19 |
Open |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
1MB |
(4) 256K x 9 |
NONE |
|
2MB |
(4) 256K x 9 |
(4) 256K x 9 |
|
4MB |
(4) 1M x 9 |
NONE |
|
5MB |
(4) 256K x 9 |
(4) 1M x 9 |
|
8MB |
(4) 1M x 9 |
(4) 1M x 9 |
|
16MB |
(4) 4M x 9 |
NONE |
|
20MB |
(4) 1M x 9 |
(4) 4M x 9 |
|
32MB |
(4) 4M x 9 |
(4) 4M x 9 |
|
CACHE CONFIGURATION | ||
|
Size |
Bank 0 |
TAG |
|
64KB |
(8) 8K x 8 |
(3) 16K x 4 |
|
256KB |
(8) 32K x 8 |
(3) 16K x 4 |
|
CACHE JUMPER CONFIGURATION | |||
|
Size |
JP1 |
JP11 |
JP15 |
|
64KB |
Open |
pins 1 & 2 closed |
pins 1 & 2 closed |
|
256KB |
Closed |
pins 2 & 3 closed |
pins 2 & 3 closed |
