PINE TECHNOLOGY
PT-726
|

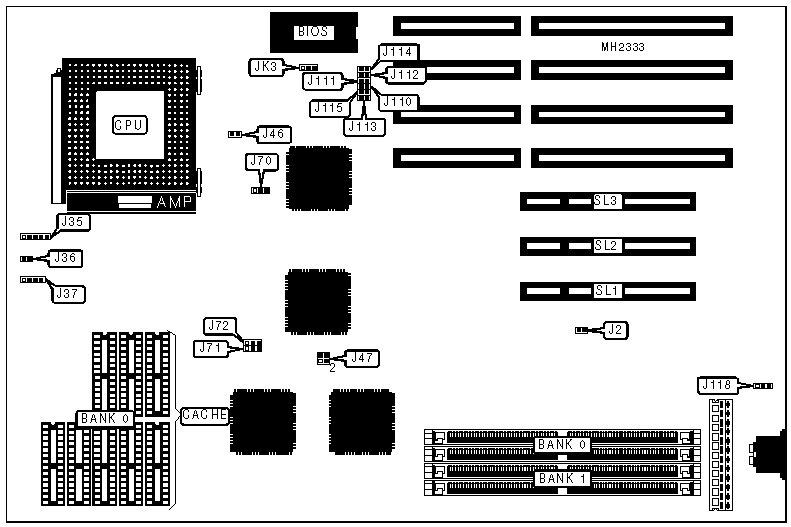

Processor |
Pentium |
|
Processor Speed |
60/66MHz |
|
Chip Set |
Intel |
|
Max. Onboard DRAM |
128MB |
|
Cache |
256KB |
|
BIOS |
AMI |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
32-bit PCI slots (3) |
|
NPU Options |
None |
|
CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Power LED & keylock |
J35 |
Speaker |
J37 |
|
Reset switch |
J36 |
32-bit PCI slots |
SL1 - SL3 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
|
» |
CMOS memory normal operation |
J2 |
Open |
|
CMOS memory clear |
J2 |
Closed | |
|
» |
Cache mode select write back |
J46 |
Open |
|
Cache mode select write through |
J46 |
Closed | |
|
» |
Parity check enabled |
J47 |
pins 1 & 2, 3 & 4 closed |
|
Parity check disabled |
J47 |
pins 1 & 3, 2 & 4 closed | |
|
» |
Cache type select standard SRAM |
J70 |
pins 1 & 2 closed |
|
Cache type select burst SRAM |
J70 |
pins 2 & 3 closed | |
|
» |
Power good signal detect from power supply |
J118 |
pins 2 & 3 closed |
|
Power good signal detect from board |
J118 |
pins 1 & 2 closed | |
|
» |
EPROM type select 27C512/27C010 |
JK3 |
pins 2 & 3 closed |
|
EPROM type select 27C010/27C020 |
JK3 |
pins 1 & 2 closed | |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
2MB |
(2) 256K x 36 |
NONE |
|
4MB |
(2) 256K x 36 |
(2) 256K x 36 |
|
4MB |
(2) 512K x 36 |
NONE |
|
6MB |
(2) 256K x 36 |
(2) 512K x 36 |
|
6MB |
(2) 512K x 36 |
(2) 256K x 36 |
|
8MB |
(2) 512K x 36 |
(2) 512K x 36 |
|
8MB |
(2) 1M x 36 |
NONE |
|
10MB |
(2) 256K x 36 |
(2) 1M x 36 |
|
10MB |
(2) 1M x 36 |
(2) 256K x 36 |
|
12MB |
(2) 512K x 36 |
(2) 1M x 36 |
|
12MB |
(2) 1M x 36 |
(2) 512K x 36 |
|
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
|
16MB |
(2) 2M x 36 |
NONE |
|
18MB |
(2) 256K x 36 |
(2) 2M x 36 |
|
18MB |
(2) 2M x 36 |
(2) 256K x 36 |
|
20MB |
(2) 512K x 36 |
(2) 2M x 36 |
|
20MB |
(2) 2M x 36 |
(2) 512K x 36 |
|
24MB |
(2) 1M x 36 |
(2) 2M x 36 |
|
24MB |
(2) 2M x 36 |
(2) 1M x 36 |
|
32MB |
(2) 2M x 36 |
(2) 2M x 36 |
|
32MB |
(2) 4M x 36 |
NONE |
|
34MB |
(2) 256K x 36 |
(2) 4M x 36 |
|
34MB |
(2) 4M x 36 |
(2) 256K x 36 |
|
36MB |
(2) 512K x 36 |
(2) 4M x 36 |
|
36MB |
(2) 4M x 36 |
(2) 512K x 36 |
|
40MB |
(2) 1M x 36 |
(2) 4M x 36 |
|
40MB |
(2) 4M x 36 |
(2) 1M x 36 |
|
48MB |
(2) 2M x 36 |
(2) 4M x 36 |
|
48MB |
(2) 4M x 36 |
(2) 2M x 36 |
|
DRAM CONFIGURATION (CON’T) | ||
|
Size |
Bank 0 |
Bank 1 |
|
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
|
64MB |
(2) 8M x 36 |
NONE |
|
66MB |
(2) 256K x 36 |
(2) 8M x 36 |
|
66MB |
(2) 8M x 36 |
(2) 256K x 36 |
|
68MB |
(2) 512K x 36 |
(2) 8M x 36 |
|
68MB |
(2) 8M x 36 |
(2) 512K x 36 |
|
72MB |
(2) 1M x 36 |
(2) 8M x 36 |
|
72MB |
(2) 8M x 36 |
(2) 1M x 36 |
|
80MB |
(2) 2M x 36 |
(2) 8M x 36 |
|
80MB |
(2) 8M x 36 |
(2) 2M x 36 |
|
96MB |
(2) 4M x 36 |
(2) 8M x 36 |
|
96MB |
(2) 8M x 36 |
(2) 4M x 36 |
|
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
|
CACHE CONFIGURATION | |
|
Size |
Bank 0 |
|
None |
NONE |
|
256KB |
(8) 32K x 8 |
|
CACHE JUMPER CONFIGURATION | ||
|
Size |
J71 |
J72 |
|
None |
pins 1 & 2 closed |
pins 1 & 2 closed |
|
256KB |
pins 1 & 2 closed |
pins 2 & 3 closed |
|
PCI IRQ CONFIGURATION | ||||||
|
IRQ |
J110 |
J111 |
J112 |
J113 |
J114 |
J115 |
|
IRQ3 |
Open |
Open |
Open |
Closed |
Open |
Open |
|
IRQ5 |
Open |
Open |
Open |
Open |
Open |
Closed |
|
IRQ10 |
Closed |
Open |
Open |
Open |
Open |
Open |
|
IRQ11 |
Open |
Closed |
Open |
Open |
Open |
Open |
|
IRQ14 |
Open |
Open |
Closed |
Open |
Open |
Open |
|
IRQ15 |
Open |
Open |
Open |
Open |
Closed |
Open |
