Processor	80386EX
Processor Speed	33/40/50/66MHz
Chip Set	Unidentified
Video Chip Set	Cirrus Logic
Maximum Onboard Memory	32MB
Maximum Video Memory	512KB
Cache	None
BIOS	Phoenix
Dimensions	254mm x 254mm
I/O Options	Floppy drive interface, IDE interface, parallel port, PS/2 mouse port, serial ports (2), VGA port, PC/104 connectors (2), flat panel connector
NPU Options	None

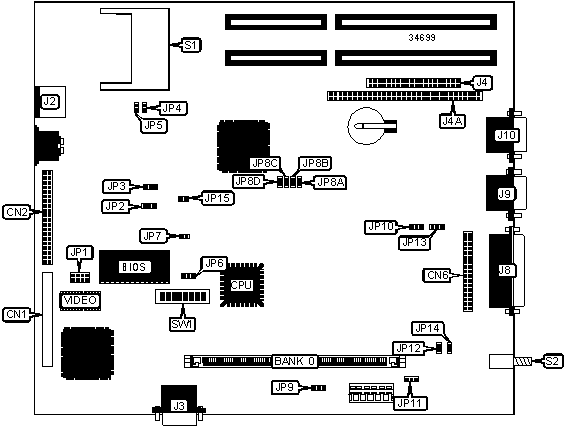

CONNECTIONS
Purpose	Location	Purpose	Location
LCD connector	CN1	PC/104 connector	J4A
IDE interface	CN2	Parallel port	J8
Floppy drive interface	CN6	Serial port 2	J9
PS/2 mouse port	J2	Serial port 1	J10
VGA port	J3	PC card carrier	S1
PC/104 connector	J4	Reset switch	S2

USER CONFIGURABLE SETTINGS
Function		Label	Position
	RFA access select (linear memory/mapped page)	JP2	Unidentified
	RFA WS select (R380 WEFLSH/386EXWR)	JP3	Unidentified
»	Factory configured - do not alter	JP4	Open
	CPU speed 33/40/50/66MHz	JP5	Unidentified
	BIOS CS select (R380EX/Intel386EX)	JP6	Unidentified
»	Flash BIOS boot block disabled	JP7	Open
	Flash BIOS boot block enabled	JP7	Closed
»	Flash BIOS normal operation	JP8A	Open
	Flash BIOS recovery mode	JP8A	Closed
»	Manufacturing loop at boot disabled	JP8B	Open
	Manufacturing loop at boot enabled	JP8B	Closed
»	Bottom half (lower 256KB) of FBD disabled	JP8C	Open
	Bottom half (lower 256KB) of FBD enabled	JP8C	Closed
»	Flash BIOS write protect disabled	JP8D	Open
	Flash BIOS write protect enabled	JP8D	Closed
	VCC select (3.3v/5v)	JP9	Unidentified
	Serial port 2 COM select (IRQ3/IRQ5)	JP10	Unidentified
	VPP select (12v/5v)	JP11	Unidentified
»	Boot option with keyboard controller disabled	JP12	Open
	Boot option with keyboard controller enabled	JP12	Closed
	Serial port 1 COM select (IRQ4/IRQ9)	JP13	Unidentified
»	Post loop disabled	JP14	Open
	Post loop enabled	JP14	Closed
»	8-bit operation disabled	JP15	Closed
	8-bit operation enabled	JP15	Open
»	R380 voltage select 5v	SW1/1	On
	R380 voltage select 3v/3.3v	SW1/1	Off
»	Internal real time clock megacell enabled	SW1/2	Off
	Internal real time clock megacell disabled	SW1/2	On
»	Internal keyboard & mouse controller megacell enabled	SW1/3	Off
	Internal keyboard & mouse controller megacell disabled	SW1/3	On
»	RAS_BS# enabled	SW1/4	Off
	MA11 enabled	SW1/4	On
»	CS_USR [3:0] outputs enabled	SW1/5	Off
	DIO [3:0] inputs enabled	SW1/5	On
»	ACTIVITY#/WE_BIOS#/WE_AP#/QDACKB enabled	SW1/6	Off
	DIO [7:4] inputs enabled	SW1/6	On
»	Initial level of digital output select initialize to 0	SW1/7	Off
	Initial level of digital output select initialize to 1	SW1/7	On
»	User definable bit select 0	SW1/8	Off
	User definable bit select 1	SW1/8	On

SIMM CONFIGURATION
Size	Bank 0
2MB	(1) 512K x 36
4MB	(1) 1M x 36
8MB	(1) 2M x 36
16MB	(1) 4M x 36
32MB	(1) 8M x 36

VIDEO MEMORY CONFIGURATION

Note: 512KB video memory is factory installed and is not configurable.

FLAT PANEL SELECTION
Setting		JP1/A	JP1/B	JP1/C
»	0-bit disabled	Open	Open	Open
	0-bit enabled	Closed	Closed	Closed
