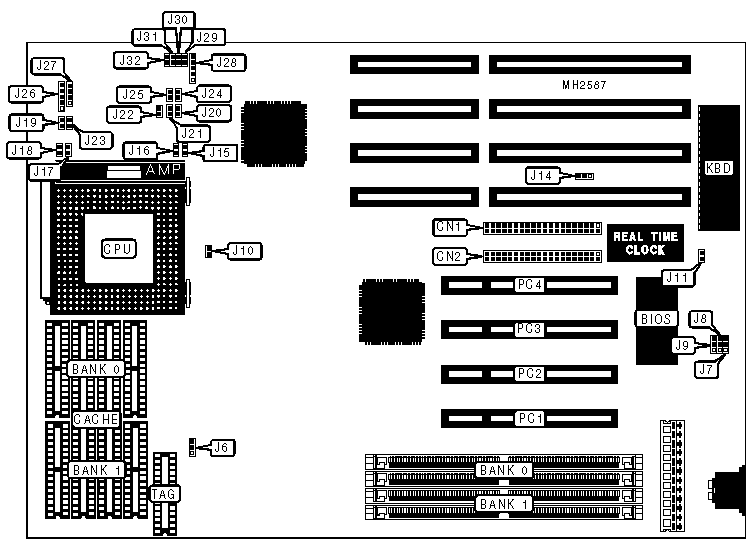

TYAN COMPUTER CORPORATION
S1461
|
Processor |
Pentium |
|
Processor Speed |
75/90/100/120/133MHz |
|
Chip Set |
Unidentified |
|
Max. Onboard DRAM |
128MB |
|
Cache |
256/512KB |
|
BIOS |
AMI/Award |
|
Dimensions |
254mm x 218mm |
|
I/O Options |
32-bit PCI slots (4), IDE interfaces (2) |
|
NPU Options |
None |
|
CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
IDE interface (primary) |
CN1 |
Turbo LED |
J23 |
|
IDE interface(secondary) |
CN2 |
Power LED & keylock |
J26 |
|
Turbo switch |
J17 |
Speaker |
J27 |
|
Reset switch |
J18 |
32-bit PCI slots |
PC1 - PC4 |
|
IDE interface LED |
J19 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
|
» |
Factory configured - do not alter |
J7 |
pins 2 & 3 closed |
|
» |
Factory configured - do not alter |
J8 |
pins 1 & 2 closed |
|
» |
Factory configured - do not alter |
J9 |
pins 1 & 2 closed |
|
» |
Factory configured - do not alter |
J10 |
Closed |
|
» |
CMOS memory normal operation |
J11 |
Open |
|
CMOS memory clear |
J11 |
Closed | |
|
» |
Factory configured - do not alter |
J14 |
pins 2 & 3 closed |
|
» |
Factory configured - do not alter |
J24 |
N/A |
|
» |
Factory configured - do not alter |
J25 |
N/A |
|
» |
Factory configured - do not alter |
J28 |
N/A |
|
» |
Factory configured - do not alter |
J29 |
N/A |
|
» |
Factory configured - do not alter |
J30 |
N/A |
|
» |
Factory configured - do not alter |
J31 |
N/A |
|
» |
Factory configured - do not alter |
J32 |
Closed |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
4MB |
(2) 512K x 36 |
NONE |
|
8MB |
(2) 512K x 36 |
(2) 512K x 36 |
|
8MB |
(2) 1M x 36 |
NONE |
|
12MB |
(2) 1M x 36 |
(2) 512K x 36 |
|
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
|
16MB |
(2) 2M x 36 |
NONE |
|
24MB |
(2) 2M x 36 |
(2) 1M x 36 |
|
32MB |
(2) 2M x 36 |
(2) 2M x 36 |
|
32MB |
(2) 4M x 36 |
NONE |
|
40MB |
(2) 4M x 36 |
(2) 1M x 36 |
|
48MB |
(2) 4M x 36 |
(2) 2M x 36 |
|
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
|
64MB |
(2) 8M x 36 |
NONE |
|
72MB |
(2) 8M x 36 |
(2) 1M x 36 |
|
80MB |
(2) 8M x 36 |
(2) 2M x 36 |
|
96MB |
(2) 8M x 36 |
(2) 4M x 36 |
|
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
|
CACHE CONFIGURATION | |||
|
Size |
Bank 0 |
Bank 1 |
TAG |
|
256KB |
(4) 32K x 8 |
(4) 32K x 8 |
(1) 32K x 8 |
|
512KB |
(4) 64K x 8 |
(4) 64K x 8 |
(1) 32K x 8 |
|
CACHE JUMPER CONFIGURATION | |||
|
Size |
J6 |
J21 |
J22 |
|
256KB |
pins 2 & 3 closed |
Open |
Closed |
|
512KB |
pins 1 & 2 closed |
Closed |
Open |
|
CPU SPEED CONFIGURATION | |||
|
Speed |
J15 |
J16 |
J20 |
|
75MHz |
Closed |
Closed |
Open |
|
90MHz |
Open |
Closed |
Open |
|
100MHz |
Closed |
Open |
Open |
|
120MHz |
Open |
Closed |
Closed |
|
133MHz |
Closed |
Open |
Closed |
