SHUTTLE COMPUTER INTERNATIONAL, INC.
HOT-617
|
Processor |
Pentium Pro |
|
Processor Speed |
180/200MHz |
|
Chip Set |
Intel |
|
Video Chip Set |
None |
|
Maximum Onboard Memory |
512MB (EDO supported) |
|
Maximum Video Memory |
None |
|
Cache |
256/512KB (located on Pentium Pro CPU) |
|
BIOS |
Award |
|
Dimensions |
280mm x 220mm |
|
I/O Options |
32-bit PCI slots (5), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, serial ports (2), IR connector, USB connectors (2) |
|
NPU Options |
None |
|
CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Serial port 2 |
CN1 |
USB connector |
J1 |
|
Serial port 1 |
CN2 |
USB connector |
J2 |
|
Floppy drive interface |
CN3 |
IDE interface LED |
LED |
|
Parallel port |
CN4 |
Power LED & keylock |
LOCK |
|
IDE interface 2 |
CN5 |
Reset switch |
RST |
|
IDE interface 1 |
CN6 |
32-bit PCI slots |
PC1 – PC5 |
|
Chassis fan power |
FAN |
Green PC connector |
SMI |
|
IR connector |
IR1 |
Speaker |
SPK |
|

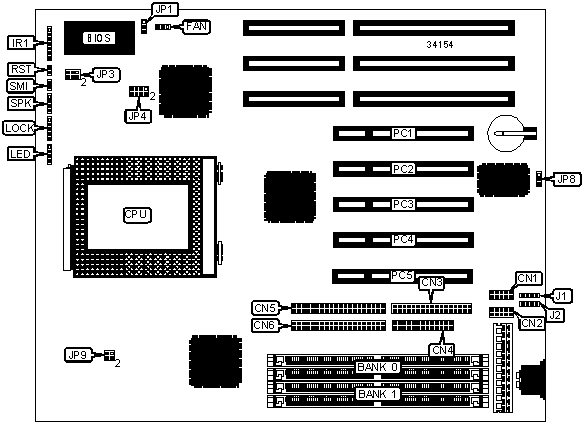

USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
|
Flash BIOS voltage select 12v |
JP1 |
Pins 1 & 2 closed | |
|
Flash BIOS voltage select 5v |
JP1 |
Pins 2 & 3 closed | |
|
» |
CMOS memory normal operation |
JP8 |
Pins 1 & 2 closed |
|
CMOS memory clear |
JP8 |
Pins 2 & 3 closed | |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
8MB |
(2) 1M x 36 |
None |
|
16MB |
(2) 2M x 36 |
None |
|
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
|
24MB |
(2) 2M x 36 |
(2) 1M x 36 |
|
32MB |
(2) 4M x 36 |
None |
|
32MB |
(2) 2M x 36 |
(2) 2M x 36 |
|
40MB |
(2) 4M x 36 |
(2) 1M x 36 |
|
48MB |
(2) 4M x 36 |
(2) 2M x 36 |
|
64MB |
(2) 8M x 36 |
None |
|
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
|
80MB |
(2) 8M x 36 |
(2) 2M x 36 |
|
96MB |
(2) 8M x 36 |
(2) 4M x 36 |
|
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
|
128MB |
(2) 16M x 36 |
None |
|
160MB |
(2) 16M x 36 |
(2) 4M x 36 |
|
192MB |
(2) 16M x 36 |
(2) 8M x 36 |
|
256MB |
(2) 16M x 36 |
(2) 16M x 36 |
|
256MB |
(2) 32M x 36 |
None |
|
320MB |
(2) 32M x 36 |
(2) 8M x 36 |
|
384MB |
(2) 32M x 36 |
(2) 16M x 36 |
|
512MB |
(2) 32M x 36 |
(2) 32M x 36 |
|
Note: Board accepts EDO memory. Board also accepts x 32 SIMMs. | ||
|
CACHE CONFIGURATION |
|
Note: 256KB/512KB cache is located on the Pentium Pro CPU. |
|
CPU SPEED SELECTION | ||||
|
CPU speed |
Clock speed |
Multiplier |
JP3 |
JP4 |
|
180MHz |
60MHz |
3x |
3 & 4 |
1 & 2, 5 & 6, 7 & 8 |
|
200MHz |
66MHz |
3x |
1 & 2 |
1 & 2, 5 & 6, 7 & 8 |
|
Note: Pins designated should be in the closed position. | ||||
|
CPU VOLTAGE SELECTION | ||
|
Voltage |
JP9 | |
|
3.1 |
Pins 1 & 2, 3 & 4 closed | |
|
3.2 |
Pins 1 & 2 closed | |
| » |
3.3 |
Pins 1 & 3, 2 & 4 closed |
|
3.4 |
Pins 1 & 3 closed | |
|
3.5 |
Pins 3 & 4 closed | |
|
3.6 |
Open | |
