SOYO COMPUTER CO., LTD.
6KA2/A5
|
Processor |
Pentium II |
|
Processor Speed |
200/233/266/300MHz |
|
Chip Set |
Intel |
|
Video Chip Set |
None |
|
Maximum Onboard Memory |
768MB (EDO supported) |
|
Maximum Video Memory |
None |
|
Cache |
256/512KB (located on Pentium II CPU) |
|
BIOS |
Unidentified |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), IR connector, VRM connector, USB connector, ATX power connector |
|
NPU Options |
None |
|

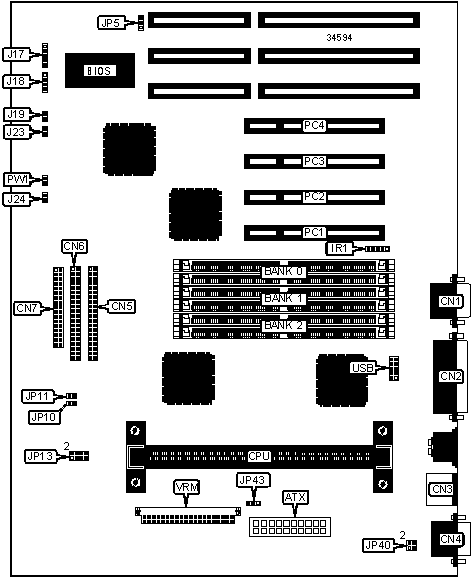

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
ATX power connector |
ATX |
Speaker |
J18 |
|
Serial port 2 |
CN1 |
Reset switch |
J19 |
|
Parallel port |
CN2 |
Green PC connector |
J23 |
|
PS/2 mouse port |
CN3 |
IDE interface LED |
J24 |
|
Serial port 1 |
CN4 |
CPU cooling fan |
JP43 |
|
IDE interface 2 |
CN5 |
32-bit PCI slots |
PC1 – PC4 |
|
IDE interface 1 |
CN6 |
Soft off power supply |
PW1 |
|
Floppy drive interface |
CN7 |
USB connector |
USB |
|
IR connector |
IR1 |
VRM connector |
VRM |
|
Power LED & keylock |
J17 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
|
» |
CMOS memory normal operation |
JP5 |
Pins 2 & 3 closed |
|
CMOS memory clear |
JP5 |
Pins 1 & 2 closed | |
|
» |
EMI signals disabled |
JP40 |
Pins 1 & 2, 3 & 4 closed |
|
EMI signals enabled |
JP40 |
Open | |
|
SIMM CONFIGURATION | |||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
|
8MB |
(2) 1M x 36 |
None |
None |
|
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
None |
|
16MB |
(2) 2M x 36 |
None |
None |
|
24MB |
(2) 1M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
|
32MB |
(2) 2M x 36 |
(2) 2M x 36 |
None |
|
32MB |
(2) 4M x 36 |
None |
None |
|
48MB |
(2) 2M x 36 |
(2) 2M x 36 |
(2) 2M x 36 |
|
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
None |
|
64MB |
(2) 8M x 36 |
None |
None |
|
96MB |
(2) 4M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
|
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
None |
|
128MB |
(2) 16M x 36 |
None |
None |
|
192MB |
(2) 8M x 36 |
(2) 8M x 36 |
(2) 8M x 36 |
|
256MB |
(2) 16M x 36 |
(2) 16M x 36 |
None |
|
256MB |
(2) 32M x 36 |
None |
None |
|
384MB |
(2) 16M x 36 |
(2) 16M x 36 |
(2) 16M x 36 |
|
512MB |
(2) 32M x 36 |
(2) 32M x 36 |
None |
|
768MB |
(2) 32M x 36 |
(2) 32M x 36 |
(2) 32M x 36 |
|
Note: Board accepts EDO memory. | |||
|
CACHE CONFIGURATION |
|
Note: 256KB/512KB cache is located on the Pentium II CPU. |
|
CPU SPEED SELECTION | |||
|
Speed |
JP10 |
JP11 |
JP13 |
|
200MHz |
Closed |
Open |
Pins 1 & 2, 5 & 6, 7 & 8 closed |
|
233MHz |
Closed |
Open |
Pins 5 & 6, 7 & 8 closed |
|
266MHz |
Closed |
Open |
Pins 1 & 2, 3 & 4, 7 & 8 closed |
|
300MHz |
Closed |
Open |
Pins 3 & 4, 7 & 8 closed |
