Processor	Pentium Pro
Processor Speed	150/166/180/200MHz
Chip Set	Intel
Video Chip Set	Unidentified
Maximum Onboard Memory	512MB (EDO supported)
Maximum Video Memory	Unidentified
Cache	256/512KB (located on Pentium Pro CPU)
BIOS	Award
Dimensions	305mm x 244mm
I/O Options	32-bit PCI slots (7), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), VGA feature connector, VGA interface, IR connector, USB connector
NPU Options	None

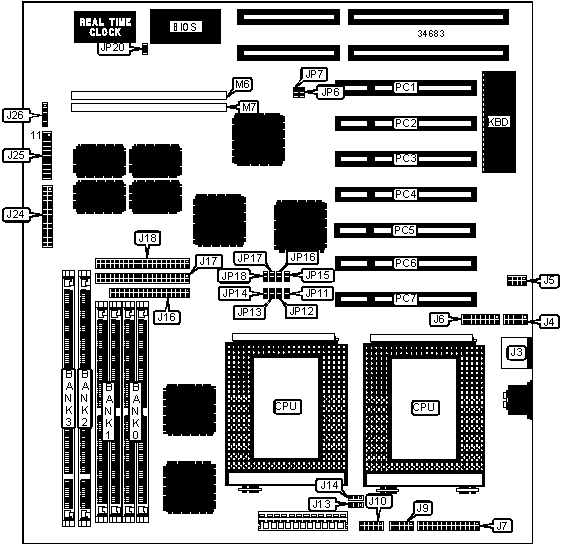

CONNECTIONS
Purpose	Location	Purpose	Location
PS/2 mouse port	J3	IDE interface 2	J18
PS/2 mouse interface	J4	VGA feature connector	J24
USB connector	J5	Speaker	J25/pins 1 - 4
VGA interface	J6	Green PC connector	J25/pins 6 & 16
Parallel port	J7	Turbo LED	J25/pins 8 & 18
Serial port 1	J9	Reset switch	J25/pins 9 & 19
Serial port 2	J10	IDE interface LED	J25/pins 10 & 20
CPU fan power	J13	Power LED & keylock	J25/pins 11 - 15
CPU fan power	J14	IR connector	J26
Floppy drive interface	J16	32-bit PCI slots	PC1 – PC7
IDE interface 1	J17

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	ISA speed select PCICLK/4	JP6	Closed
	ISA speed select PCICLK/3	JP6	Open
»	PS/2 mouse enabled	JP7	Closed
	PS/2 mouse disabled	JP7	Open
»	CMOS memory normal operation	JP20	Open
	CMOS memory clear	JP20	Closed
»	Factory configured - do not alter	M6	Unidentified
»	Factory configured - do not alter	M7	Unidentified

SIMM CONFIGURATION
Size	Bank 0	Bank 1
8MB	(2) 1M x 36	None
16MB	(2) 2M x 36	None
16MB	(2) 1M x 36	(2) 1M x 36
24MB	(2) 2M x 36	(2) 1M x 36
32MB	(2) 4M x 36	None
32MB	(2) 2M x 36	(2) 2M x 36
40MB	(2) 4M x 36	(2) 1M x 36
48MB	(2) 4M x 36	(2) 2M x 36
64MB	(2) 8M x 36	None
64MB	(2) 4M x 36	(2) 4M x 36
72MB	(2) 8M x 36	(2) 1M x 36
80MB	(2) 8M x 36	(2) 2M x 36
96MB	(2) 8M x 36	(2) 4M x 36
128MB	(2) 8M x 36	(2) 8M x 36
128MB	(2) 16M x 36	None

SIMM CONFIGURATION (CON’T)
Size	Bank 0	Bank 1
136MB	(2) 16M x 36	(2) 1M x 36
144MB	(2) 16M x 36	(2) 2M x 36
160MB	(2) 16M x 36	(2) 4M x 36
192MB	(2) 16M x 36	(2) 8M x 36
256MB	(2) 16M x 36	(2) 16M x 36
Note: Board accepts EDO memory.

DIMM CONFIGURATION
Size	Bank 0	Bank 1
8MB	(1) 1M x 64	None
16MB	(1) 2M x 64	None
16MB	(1) 1M x 64	(1) 1M x 64
24MB	(1) 2M x 64	(1) 1M x 64
32MB	(1) 4M x 64	None
32MB	(1) 2M x 64	(1) 2M x 64
40MB	(1) 4M x 64	(1) 1M x 64
48MB	(1) 4M x 64	(1) 2M x 64
64MB	(1) 8M x 64	None
64MB	(1) 4M x 64	(1) 4M x 64
72MB	(1) 8M x 64	(1) 1M x 64
80MB	(1) 8M x 64	(1) 2M x 64
96MB	(1) 8M x 64	(1) 4M x 64
128MB	(1) 16M x 64	None
128MB	(1) 8M x 64	(1) 8M x 64
136MB	(1) 16M x 64	(1) 1M x 64
144MB	(1) 16M x 64	(1) 2M x 64
160MB	(1) 16M x 64	(1) 4M x 64
192MB	(1) 16M x 64	(1) 8M x 64
256MB	(1) 16M x 64	(1) 16M x 64

CACHE CONFIGURATION

Note: 256KB/512KB cache is located on the Pentium Pro CPU.

VIDEO MEMORY CONFIGURATION

Note: The size & location of the video memory is unidentified.

CPU SPEED SELECTION
CPU speed	Clock speed	Multiplier	JP11	JP12	JP13	JP14
150MHz	60MHz	2.5x	Open	Closed	Closed	Closed
166MHz	66MHz	2.5x	Open	Closed	Closed	Closed
180MHz	60MHz	3x	Closed	Open	Closed	Closed
200MHz	66MHz	3x	Closed	Open	Closed	Closed

CPU SPEED SELECTION (CON’T)
CPU speed	Clock speed	Multiplier	JP15	JP16	JP17	JP18
150MHz	60MHz	2.5x	Open	Closed	Closed	Open
166MHz	66MHz	2.5x	Closed	Open	Open	Closed
180MHz	60MHz	3x	Open	Closed	Closed	Open
200MHz	66MHz	3x	Closed	Open	Open	Closed
