TEKRAM TECHNOLOGY CO., LTD.
P6E40-MS3 (SOUND)
|
Device Type |
Mainboard |
|
Processor |
Pentium II/Celeron |
|
Processor Speed |
233/266/300/333/366/400MHz |
|
Chip Set |
Intel 440EX |
|
Maximum Onboard Memory |
512MB (EDO & SDRAM supported) |
|
Cache |
0/128/256/512KB (located on the CPU) |
|
BIOS |
Award |
|
Dimensions |
245mm x 180mm |
|
I/O Options |
32-bit PCI slots (3), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), IR connector, USB connectors (2), ATX power connector, AGP slot, line in, line out, microphone in, audio in CD-ROMs (2) |
|

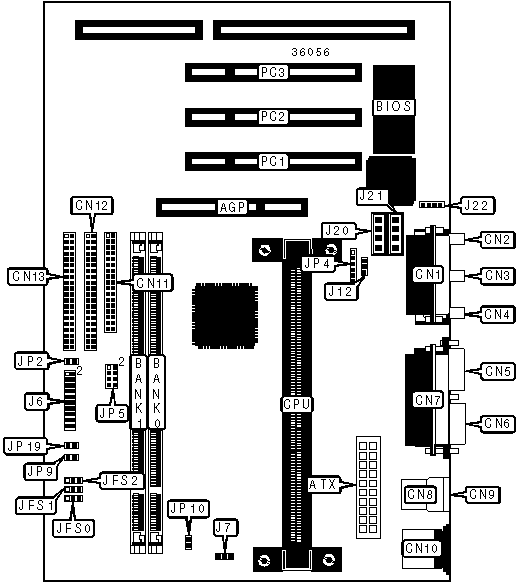

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
AGP slot |
AGP |
Power LED & keylock |
J6/pins 2/4/6/8/10 |
|
ATX power connector |
ATX |
Turbo LED |
J6/pins 3 & 5 |
|
Game/MIDI port |
CN1 |
Green PC connector |
J6/pins 7 & 9 |
|
Microphone in |
CN2 |
Speaker |
J6/pins 14/16/18/20 |
|
Line in |
CN3 |
Reset switch |
J6/pins 17 & 19 |
|
Line out |
CN4 |
Chassis fan power |
J7 |
|
Serial port 2 |
CN5 |
Wake on LAN connector |
J12 |
|
Serial port 1 |
CN6 |
Audio in CD-ROM |
J20 |
|
Parallel port |
CN7 |
Audio in CD-ROM |
J21 |
|
USB connector 1 |
CN8 |
Auxiliary connector |
J22 |
|
USB connector 2 |
CN9 |
IDE interface LED |
JP2 |
|
PS/2 mouse port |
CN10 |
IR connector |
JP4 |
|
Floppy drive interface |
CN11 |
Soft off power supply |
JP9 |
|
IDE interface 2 |
CN12 |
Temperature sensor connector |
JP10 |
|
IDE interface 1 |
CN13 |
32-bit PCI slots |
PC1 PC3 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
|
Power state function enabled |
JP19 |
Closed | |
|
Power state function disabled |
JP19 |
Open | |
|
DIMM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
8MB |
(1) 1M x 64 |
None |
|
16MB |
(1) 2M x 64 |
None |
|
16MB |
(1) 1M x 64 |
(2) 1M x 64 |
|
24MB |
(1) 2M x 64 |
(2) 1M x 64 |
|
32MB |
(1) 4M x 64 |
None |
|
32MB |
(1) 2M x 64 |
(2) 2M x 64 |
|
40MB |
(1) 4M x 64 |
(2) 1M x 64 |
|
48MB |
(1) 4M x 64 |
(2) 2M x 64 |
|
64MB |
(1) 8M x 64 |
None |
|
64MB |
(1) 4M x 64 |
(2) 4M x 64 |
|
72MB |
(1) 8M x 64 |
(2) 1M x 64 |
|
80MB |
(1) 8M x 64 |
(2) 2M x 64 |
|
96MB |
(1) 8M x 64 |
(2) 4M x 64 |
|
128MB |
(1) 8M x 64 |
(2) 8M x 64 |
|
128MB |
(1) 16M x 64 |
None |
|
164MB |
(1) 16M x 64 |
(2) 1M x 64 |
|
144MB |
(1) 16M x 64 |
(2) 2M x 64 |
|
160MB |
(1) 16M x 64 |
(2) 4M x 64 |
|
192MB |
(1) 16M x 64 |
(2) 8M x 64 |
|
DIMM CONFIGURATION (CONT) | ||
|
Size |
Bank 0 |
Bank 1 |
|
256MB |
(1) 16M x 64 |
(2) 16M x 64 |
|
256MB |
(1) 32M x 64 |
None |
|
264MB |
(1) 32M x 64 |
(2) 1M x 64 |
|
272MB |
(1) 32M x 64 |
(2) 2M x 64 |
|
288MB |
(1) 32M x 64 |
(2) 4M x 64 |
|
320MB |
(1) 32M x 64 |
(2) 8M x 64 |
|
384MB |
(1) 32M x 64 |
(2) 16M x 64 |
|
512MB |
(1) 32M x 64 |
(2) 32M x 64 |
|
Note: Board accepts EDO & SDRAM memory. Maximum SDRAM is 256MB. Maximum EDO is 512MB. | ||
|
CACHE CONFIGURATION |
|
Note: 256KB/512KB cache is located on the Pentium II CPU. 128KB cache is located on the Celeron 300A & 333 CPU. |
|
CPU SPEED SELECTION | ||||||
|
CPU speed |
Clock speed |
Multiplier |
JFS0 |
JFS1 |
JFS2 |
JP5 |
|
233MHz |
66MHz |
3.5x |
1 & 2 |
1 & 2 |
1 & 2 |
1 & 2, 7 & 8 |
|
266MHz |
66MHz |
4x |
1 & 2 |
1 & 2 |
1 & 2 |
1 & 2, 3 & 4, 5 & 6 |
|
300MHz |
66MHz |
4.5x |
1 & 2 |
1 & 2 |
1 & 2 |
1 & 2, 5 & 6 |
|
333MHz |
66MHz |
5x |
1 & 2 |
1 & 2 |
1 & 2 |
1 & 2, 3 & 4 |
|
366MHz |
66MHz |
5.5x |
1 & 2 |
1 & 2 |
1 & 2 |
1 & 2 |
|
400MHz |
66MHz |
6x |
1 & 2 |
1 & 2 |
1 & 2 |
3 & 4, 5 & 6, 7 & 8 |
|
Note: Pins designated should be in the closed position. | ||||||
