ZYTEX COMPUTERS, INC.
486-33 EISA
|
Processor |
80486DX |
|
Processor Speed |
33MHz |
|
Chip set |
OPTI |
|
Max. Onboard DRAM |
64MB |
|
Cache |
64/256KB |
|
BIOS |
AMI/Award |
|
Dimensions |
342mm x 323mm |
|
I/O Options |
serial ports (2), parallel port, IDE interface, floppy drive interface, bus mouse port |
|
NPU Options |
4167 |
|

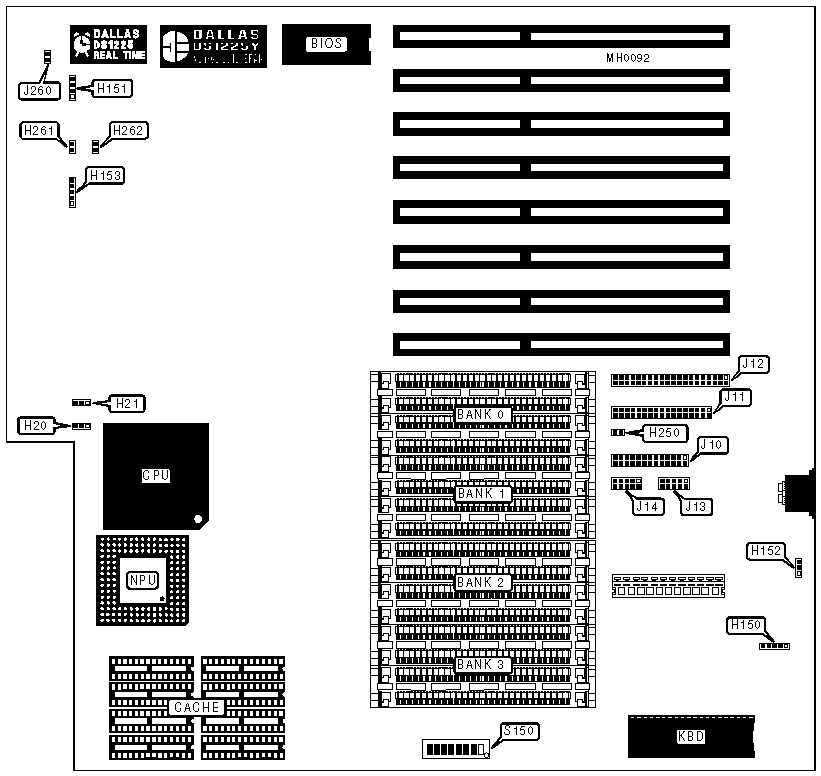

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Bus mouse port |
H150 |
Parallel port |
J10 |
|
Speaker |
H151 |
Floppy interface |
J11 |
|
Power LED & keylock |
H153 |
IDE interface |
J12 |
|
IDE interface LED |
H250 |
Serial port (COM1) |
J13 |
|
Turbo switch |
H261 |
Serial port (COM2) |
J14 |
|
Turbo LED |
H262 |
Reset switch |
J260 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper/Switch |
Position | |
| » |
Factory configured - do not alter |
H20 |
N/A |
| » |
Factory configured - do not alter |
H21 |
N/A |
| » |
PS/2 mouse port enabled |
H152 |
pins 2 & 3 closed |
|
PS/2 mouse port disabled |
H152 |
pins 1 & 2 closed | |
| » |
Factory configured - do not alter |
S150/1 |
N/A |
| » |
Factory configured - do not alter |
S150/2 |
N/A |
| » |
Factory configured - do not alter |
S150/3 |
N/A |
| » |
Factory configured - do not alter |
S150/4 |
N/A |
| » |
Factory configured - do not alter |
S150/5 |
N/A |
| » |
Monitor type select color |
S150/6 |
Open |
|
Monitor type select monochrome |
S150/6 |
Closed | |
| » |
Factory configured - do not alter |
S150/7 |
N/A |
| » |
Factory configured - do not alter |
S150/8 |
N/A |
|
DRAM CONFIGURATION | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
1MB |
(4) 256K x 9 |
NONE |
NONE |
NONE |
|
2MB |
(4) 256K x 9 |
(4) 256K x 9 |
NONE |
NONE |
|
3MB |
(4) 256K x 9 |
(4) 256K x 9 |
(4) 256K x 9 |
NONE |
|
4MB |
(4) 256K x 9 |
(4) 256K x 9 |
(4) 256K x 9 |
(4) 256K x 9 |
|
4MB |
(4) 1M x 9 |
NONE |
NONE |
NONE |
|
5MB |
(4) 1M x 9 |
(4) 256K x 9 |
NONE |
NONE |
|
8MB |
(4) 1M x 9 |
(4) 1M x 9 |
NONE |
NONE |
|
9MB |
(4) 1M x 9 |
(4) 1M x 9 |
(4) 256K x 9 |
NONE |
|
12MB |
(4) 1M x 9 |
(4) 1M x 9 |
(4) 1M x 9 |
NONE |
|
13MB |
(4) 1M x 9 |
(4) 1M x 9 |
(4) 1M x 9 |
(4) 256K x 9 |
|
16MB |
(4) 1M x 9 |
(4) 1M x 9 |
(4) 1M x 9 |
(4) 1M x 9 |
|
16MB |
(4) 4M x 9 |
NONE |
NONE |
NONE |
|
20MB |
(4) 4M x 9 |
(4) 1M x 9 |
NONE |
NONE |
|
24MB |
(4) 4M x 9 |
(4) 1M x 9 |
(4) 1M x 9 |
NONE |
|
28MB |
(4) 4M x 9 |
(4) 1M x 9 |
(4) 1M x 9 |
(4) 1M x 9 |
|
32MB |
(4) 4M x 9 |
(4) 4M x 9 |
NONE |
NONE |
|
36MB |
(4) 4M x 9 |
(4) 4M x 9 |
(4) 1M x 9 |
NONE |
|
40MB |
(4) 4M x 9 |
(4) 4M x 9 |
(4) 1M x 9 |
(4) 1M x 9 |
|
48MB |
(4) 4M x 9 |
(4) 4M x 9 |
(4) 4M x 9 |
NONE |
|
52MB |
(4) 4M x 9 |
(4) 4M x 9 |
(4) 4M x 9 |
(4) 1M x 9 |
|
64MB |
(4) 4M x 9 |
(4) 4M x 9 |
(4) 4M x 9 |
(4) 4M x 9 |
|
CACHE CONFIGURATION | |
|
Size |
Bank 0 |
|
64KB |
(8) 8K x 8 |
|
256KB |
(8) 32K x 8 |
