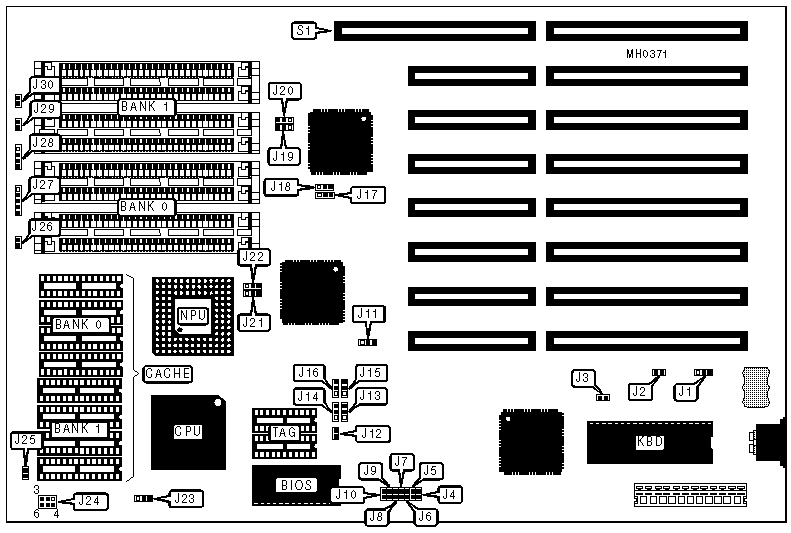

WISEWARE COMPUTER, INC.
ETEQ 386 33/40
|
Processor |
80386DX |
|
Processor Speed |
33/40MHz |
|
Chip Set |
ETEQ |
|
Max. Onboard DRAM |
32MB |
|
Cache |
32/64/128/256KB |
|
BIOS |
AMI |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
32-bit external memory card slot |
|
NPU Options |
80387/3167 |
|
CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
External battery |
J1 |
Turbo switch |
J29 |
|
Reset switch |
J26 |
Turbo LED |
J30 |
|
Power LED & keylock |
J27 |
32-bit external memory card |
S1 |
|
Speaker |
J28 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
| » |
Battery select internal |
J2 |
open |
|
Battery select external |
J2 |
closed | |
| » |
Monitor type select color |
J3 |
open |
|
Monitor type select monochrome |
J3 |
closed | |
| » |
Factory configured - do not alter |
J17 (A) |
pins 1 & 2 closed |
| » |
Factory configured - do not alter |
J18 (A) |
pins 2 & 3 closed |
| » |
Factory configured - do not alter |
J19 (A) |
pins 1 & 2 closed |
| » |
Factory configured - do not alter |
J20 (A) |
pins 2 & 3 closed |
| » |
Factory configured - do not alter |
J17 (B) |
pins 2 & 3 closed |
| » |
Factory configured - do not alter |
J18 (B) |
pins 1 & 2 closed |
| » |
Factory configured - do not alter |
J19 (B) |
pins 2 & 3 closed |
| » |
Factory configured - do not alter |
J20 (B) |
pins 1 & 2 closed |
|
Note:Jumpers J17 - J20 settings (A) are for mainboards with chipset chip 82C492A installed. Jumpers J17 - J20 settings (B) are for mainboards with chipset chip 82C493 installed. | |||
|
DRAM CONFIGURATION | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
1MB |
(4) 256K x 9 |
NONE |
NONE |
NONE |
|
2MB |
(4) 256K x 9 |
(4) 256K x 9 |
NONE |
NONE |
|
3MB |
(4) 256K x 9 |
(4) 256K x 9 |
(4) 256K x 9 |
NONE |
|
4MB |
(4) 1M x 9 |
NONE |
NONE |
NONE |
|
5MB |
(4) 256K x 9 |
(4) 1M x 9 |
NONE |
NONE |
|
6MB |
(4) 256K x 9 |
(4) 256K x 9 |
(4) 1M x 9 |
NONE |
|
8MB |
(4) 1M x 9 |
(4) 1M x 9 |
NONE |
NONE |
|
10MB |
(4) 256K x 9 |
(4) 256K x 9 |
(4) 1M x 9 |
(4) 1M x 9 |
|
12MB |
(4) 1M x 9 |
(4) 1M x 9 |
(4) 1M x 9 |
NONE |
|
16MB |
(4) 1M x 9 |
(4) 1M x 9 |
(4) 1M x 9 |
(4) 1M x 9 |
|
16MB |
(4) 4M x 9 |
NONE |
NONE |
NONE |
|
18MB |
(4) 256K x 9 |
(4) 256K x 9 |
(4) 4M x 9 |
NONE |
|
24MB |
(4) 1M x 9 |
(4) 1M x 9 |
(4) 4M x 9 |
NONE |
|
32MB |
(4) 4M x 9 |
(4) 4M x 9 |
NONE |
NONE |
|
40MB |
(4) 1M x 9 |
(4) 1M x 9 |
(4) 4M x 9 |
(4) 4M x 9 |
|
48MB |
(4) 4M x 9 |
(4) 4M x 9 |
(4) 4M x 9 |
NONE |
|
64MB |
(4) 4M x 9 |
(4) 4M x 9 |
(4) 4M x 9 |
(4) 4M x 9 |
|
Note:Banks 2 & 3 are used when a 32-bit external memory card is installed at S1. | ||||
|
CACHE CONFIGURATION | |||
|
Size |
Bank 0 |
Bank 1 |
TAG |
|
32KB |
(4) 8K x 8 |
NONE |
(2) 16K x 4 |
|
64KB |
(4) 8K x 8 |
(4) 8K x 8 |
(2) 16K x 4 |
|
128KB |
(4) 32K x 8 |
NONE |
(2) 16K x 4 |
|
256KB |
(4) 32K x 8 |
(4) 32K x 8 |
(2) 16K x 4 |
|
CACHE JUMPER CONFIGURATION | |||||||||
|
Size |
J11 |
J12 |
J13 |
J14 |
J15 |
J16 |
J23 |
J24 |
J25 |
|
32KB |
1 & 2 |
Open |
1 & 2 |
1 & 2 |
1 & 2 |
1 & 2 |
1 & 2 |
2 & 3 |
Open |
|
64KB |
2 & 3 |
Closed |
1 & 2 |
1 & 2 |
1 & 2 |
1 & 2 |
1 & 2 |
1 & 2 |
Open |
|
128KB |
2 & 3 |
Closed |
1 & 2 |
2 & 3 |
1 & 2 |
2 & 3 |
1 & 2 |
4 & 5 |
Closed |
|
256KB |
2 & 3 |
Closed |
2 & 3 |
2 & 3 |
2 & 3 |
2 & 3 |
2 & 3 |
5 & 6 |
Closed |
|
Note:Pins designated should be in the closed position. | |||||||||
|
NPU JUMPER CONFIGURATION | |||||||
|
NPU |
J4 |
J5 |
J6 |
J7 |
J8 |
J9 |
J10 |
|
80387 |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
|
3167 |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
|
Disabled |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
|
Disabled |
Closed |
Closed |
Closed |
Closed |
Closed |
Closed |
Closed |
|
NPU JUMPER CONFIGURATION | ||
|
Type |
J21 |
J22 |
|
Synchronous |
pins 1 & 2 closed |
pins 1 & 2 closed |
|
Asynchronous |
pins 2 & 3 closed |
pins 2 & 3 closed |
