UNIDENTIFIED
NPM 16/20 C-1
|
Processor |
80386SX |
|
Processor Speed |
16/20MHz |
|
Chip Set |
C & T |
|
Max. Onboard DRAM |
8MB |
|
Cache |
None |
|
BIOS |
AMI/Phoenix |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
None |
|
NPU Options |
80387SX |
|

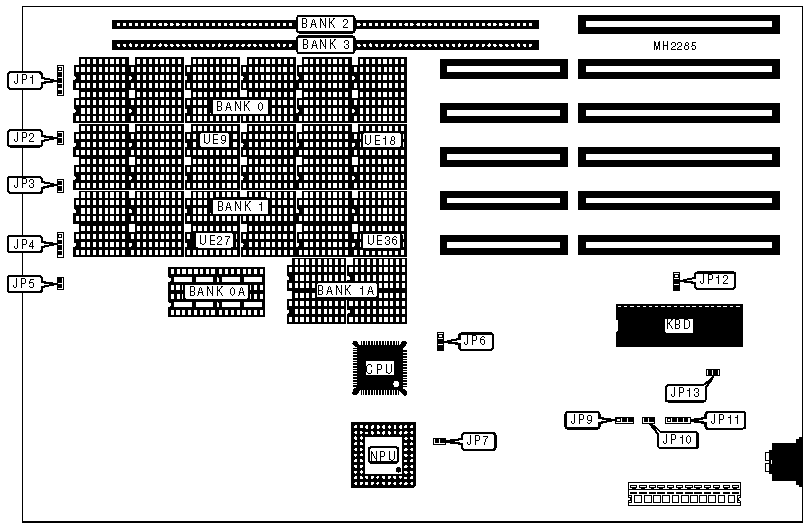

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Power LED & keylock |
JP1 |
Speaker |
JP4 |
|
Reset switch |
JP2 |
Turbo switch |
JP5 |
|
Turbo LED |
JP3 |
External battery |
JP11 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
|
» |
Turbo enabled |
JP5 |
Closed |
|
Turbo disabled |
JP5 |
Open | |
|
» |
BIOS type select 27256 |
JP6 |
pins 1 & 2 closed |
|
BIOS type select 27128 |
JP6 |
pins 2 & 3 closed | |
|
» |
Pipeline mode enabled |
JP7 |
Closed |
|
Pipeline mode disabled |
JP7 |
Open | |
|
» |
CMOS memory normal operation |
JP9 |
pins 1 & 2 closed |
|
CMOS memory clear |
JP9 |
pins 2 & 3 closed | |
|
» |
Battery type select internal |
JP10 |
Closed |
|
Battery type select external |
JP10 |
Open | |
|
» |
BIOS type select standard |
JP12 |
pins 1 & 2 closed |
|
BIOS type select custom |
JP12 |
pins 2 & 3 closed | |
|
» |
Monitor type select monochrome |
JP13 |
Open |
|
Monitor type select color |
JP13 |
Closed | |
|
DRAM CONFIGURATION | ||||||
|
Size |
Bank 0 |
Bank 0A |
Bank 1 |
Bank 1A |
Bank 2 |
Bank 3 |
|
512KB |
(18) 41256 |
NONE |
NONE |
NONE |
NONE |
NONE |
|
512KB |
NONE |
(4) 44256 |
NONE |
NONE |
NONE |
NONE |
|
640KB |
(18) 41256 |
NONE |
NONE |
(4) 4464 |
NONE |
NONE |
|
640KB |
NONE |
(4) 44256 |
NONE |
(4) 4464 |
NONE |
NONE |
|
1MB |
(18) 41256 |
NONE |
(18) 41256 |
NONE |
NONE |
NONE |
|
1.5MB |
(18) 41256 |
NONE |
(18) 41256 |
NONE |
(2) 256K x 9 |
NONE |
|
1.64MB |
(18) 41256 |
NONE |
(18) 4164 |
NONE |
(2) 256K x 9 |
(2) 256K x 9 |
|
2MB |
(18) 411000 |
NONE |
NONE |
NONE |
NONE |
NONE |
|
2MB |
(18) 41256 |
NONE |
(18) 41256 |
NONE |
(2) 256K x 9 |
(2) 256K x 9 |
|
3MB |
(18) 41256 |
NONE |
(18) 41256 |
NONE |
(2) 1M x 9 |
(2) 1M x 9 |
|
4MB |
(18) 411000 |
NONE |
(18) 411000 |
NONE |
NONE |
NONE |
|
4.64MB |
(18) 41256 |
NONE |
(18) 4164 |
NONE |
(2) 1M x 9 |
(2) 1M x 9 |
|
5MB |
(18) 41256 |
NONE |
(18) 41256 |
NONE |
(2) 1M x 9 |
(2) 1M x 9 |
|
6MB |
(18) 411000 |
NONE |
(18) 411000 |
NONE |
(2) 1M x 9 |
NONE |
|
8MB |
(18) 411000 |
NONE |
(18) 411000 |
NONE |
(2) 1M x 9 |
(2) 1M x 9 |
|
Note:The following configurations are only available on the NPM 16/C1: 640KB, 1.64MB & 4.64MB. | ||||||
|
DRAM PARITY CONFIGURATION | ||
|
Size |
Parity 0 (UE9, UE18) |
Parity 1 (UE27, UE36) |
|
512KB |
NONE |
NONE |
|
512KB |
(2) 41256 |
NONE |
|
640KB |
NONE |
(2) 4164 |
|
640KB |
(2) 41256 |
(2) 4164 |
|
1MB |
NONE |
NONE |
|
1.5MB |
NONE |
NONE |
|
1.64MB |
NONE |
NONE |
|
2MB |
NONE |
NONE |
|
DRAM PARITY CONFIGURATION (CON’T) | ||
|
Size |
Parity 0 (UE9, UE18) |
Parity 1 (UE27, UE36) |
|
2MB |
NONE |
NONE |
|
3MB |
NONE |
NONE |
|
4MB |
NONE |
NONE |
|
4.64MB |
NONE |
NONE |
|
5MB |
NONE |
NONE |
|
6MB |
NONE |
NONE |
|
8MB |
NONE |
NONE |
|
Note:The following configurations are only available on the NPM 16/C1: 640KB, 1.64MB & 4.64MB. | ||
