UNIDENTIFIED
PANTHER 386SX
|
Processor |
80386SX |
|
Processor Speed |
16/20MHz |
|
Chip Set |
Unidentified |
|
Max. Onboard DRAM |
32MB |
|
Cache |
None |
|
BIOS |
AMI |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
None |
|
NPU Options |
80387SX |
|

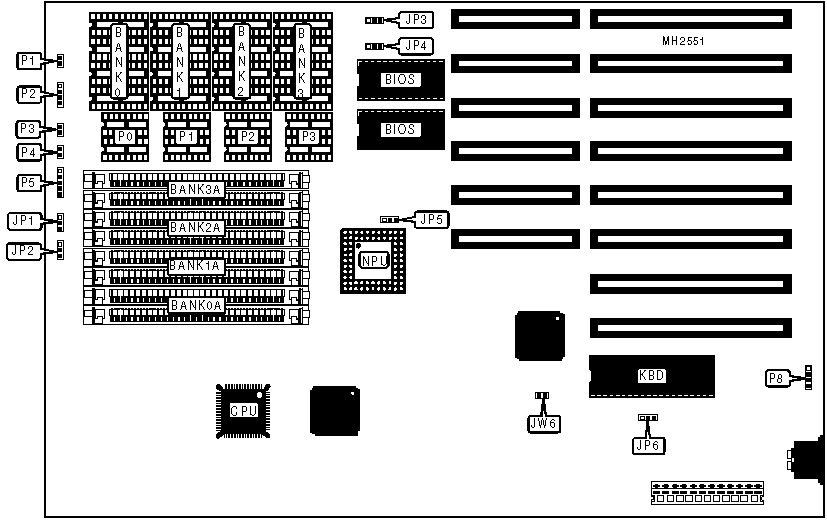

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Reset switch |
P1 |
Turbo LED |
P4 |
|
Speaker |
P2 |
Power LED & keylock |
P5 |
|
Turbo switch |
P3 |
External battery |
P8 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
|
» |
Factory configured - do not alter |
JP1 |
N/A |
|
» |
Parity check enabled |
JP2 |
pins 1 & 2 closed |
|
Parity check disabled |
JP2 |
pins 2 & 3 closed | |
|
» |
Factory configured - do not alter |
JP5 |
N/A |
|
» |
Monitor type select monochrome |
JP6 |
pins 1 & 2 closed |
|
Monitor type select CGA/EGA/VGA |
JP6 |
pins 2 & 3 closed | |
|
» |
CMOS memory normal operation |
JW6 |
Open |
|
CMOS memory clear |
JW6 |
Closed | |
|
DRAM CONFIGURATION (SIMM) | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
2MB |
(2) 1M x 9 |
NONE |
NONE |
NONE |
|
3MB |
(2) 256K x 9 |
(2) 256K x 9 |
(2) 1M x 9 |
NONE |
|
4MB |
(2) 1M x 9 |
(2) 1M x 9 |
NONE |
NONE |
|
4.5MB |
(2) 1M x 9 |
(2) 1M x 9 |
(2) 256K x 9 |
NONE |
|
5MB |
(2) 256K x 9 |
(2) 256K x 9 |
(2) 1M x 9 |
(2) 1M x 9 |
|
6MB |
(2) 1M x 9 |
(2) 1M x 9 |
(2) 1M x 9 |
NONE |
|
8MB |
(2) 1M x 9 |
(2) 1M x 9 |
(2) 1M x 9 |
(2) 1M x 9 |
|
8MB |
(2) 4M x 9 |
NONE |
NONE |
NONE |
|
9MB |
(2) 256K x 9 |
(2) 256K x 9 |
(2) 4M x 9 |
NONE |
|
10MB |
(2) 1M x 9 |
(2) 4M x 9 |
NONE |
NONE |
|
12MB |
(2) 1M x 9 |
(2) 1M x 9 |
(2) 4M x 9 |
NONE |
|
16MB |
(2) 4M x 9 |
(2) 4M x 9 |
NONE |
NONE |
|
16.5MB |
(2) 4M x 9 |
(2) 4M x 9 |
(2) 256K x 9 |
NONE |
|
17MB |
(2) 256K x 9 |
(2) 256K x 9 |
(2) 4M x 9 |
(2) 4M x 9 |
|
18MB |
(2) 4M x 9 |
(2) 4M x 9 |
(2) 1M x 9 |
NONE |
|
20MB |
(2) 1M x 9 |
(2) 1M x 9 |
(2) 4M x 9 |
(2) 4M x 9 |
|
24MB |
(2) 4M x 9 |
(2) 4M x 9 |
(2) 4M x 9 |
NONE |
|
32MB |
(2) 4M x 9 |
(2) 4M x 9 |
(2) 4M x 9 |
(2) 4M x 9 |
|
DRAM CONFIGURATION (DIP) | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
512KB |
(4) 44256 |
NONE |
NONE |
NONE |
|
1MB |
(4) 44256 |
(4) 44256 |
NONE |
NONE |
|
1.5MB |
(4) 44256 |
(4) 44256 |
(4) 44256 |
NONE |
|
2MB |
(4) 44256 |
(4) 44256 |
(4) 44256 |
(4) 44256 |
|
DRAM PARITY CONFIGURATION (DIP) | ||||
|
Size |
Parity 0 |
Parity 1 |
Parity 2 |
Parity 3 |
|
512KB |
(2) 41256 |
NONE |
NONE |
NONE |
|
1MB |
(2) 41256 |
(2) 41256 |
NONE |
NONE |
|
1.5MB |
(2) 41256 |
(2) 41256 |
(2) 41256 |
NONE |
|
2MB |
(2) 41256 |
(2) 41256 |
(2) 41256 |
(2) 41256 |
|
BIOS CONFIGURATION | |||
|
Size |
JP3 |
JP4 | |
| » |
27128 |
pins 1 & 2 closed |
pins 1 & 2 closed |
| » |
27256 |
pins 2 & 3 closed |
pins 1 & 2 closed |
| » |
27512 |
pins 2 & 3 closed |
pins 2 & 3 closed |
