Processor	80286
Processor Speed	6/8MHz
Chip Set	None
Max. Onboard DRAM	1MB
Cache	None
BIOS	SMT
Dimensions	350mm x 304mm
I/O Options	None
NPU Options	80287

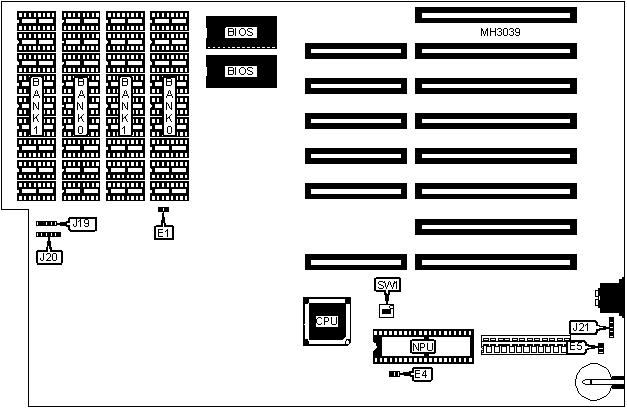

CONNECTIONS
Purpose	Location	Purpose	Location
Speaker	J19	External battery	J21
Power LED & keylock	J20	Reset switch	E5

USER CONFIGURABLE SETTINGS
Function		Jumper/Switch	Position
	Speed select high speed	E1	Closed
	Speed select low speed	E1	Open
	Memory wait state select 0 wait states	E2	Closed
	Memory wait state select 1 wait state	E2	Open
	Turbo select high	J3	Open
	Turbo select low	J3	Closed
	Turbo select software	J3	Ctrl, Alt, -
»	Monitor type select color	SW1	Off
	Monitor type select monochrome	SW1	On
Note: The location of E2 is unidentified.

DRAM CONFIGURATION
Size	Bank 0	Bank 1
512KB	(18) 41256	NONE
640KB	(18) 41256	(18) 4164
1MB	(18) 41256	(18) 41256

DRAM JUMPER CONFIGURATION
Size	E3	E4
512KB	Open	Closed
640KB	Closed	Open
1MB	Open	Open
Note: The location of E3 is unidentified.
