Processor	80286
Processor Speed	6/8MHz
Chip Set	Unidentified
Video Chip Set	None
Maximum Onboard Memory	640KB
Maximum Video Memory	None
Cache	None
BIOS	Award
Dimensions	330mm x 300mm
I/O Options	None
NPU Options	80287

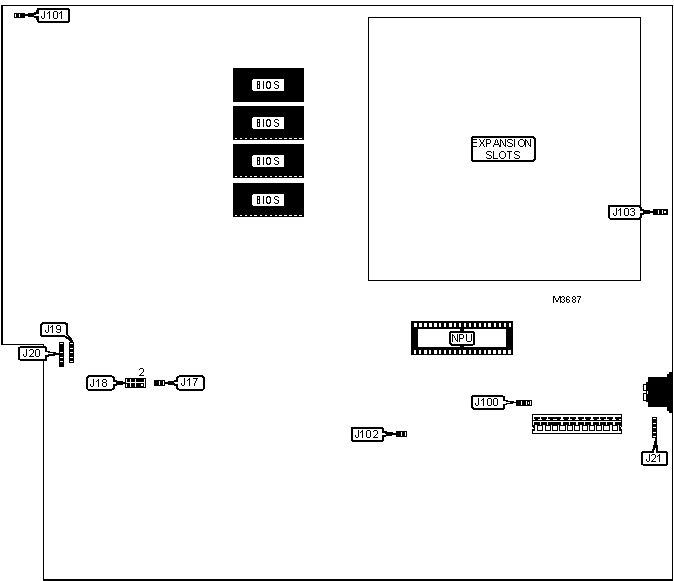

CONNECTIONS
Purpose	Location	Purpose	Location
Speaker	J19	External battery	J21
Power LED & keylock	J20	Chassis fan power	J101

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Factory configured - do not alter	J17	Unidentified
	Monitor type select color	J100	Pins 1 & 2 closed
	Monitor type select monochrome	J100	Pins 2 & 3 closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1
640KB	(18) 41256	(18) 4164
Note: The location of banks 0 & 1 are unidentified.

CPU SPEED SELECTION
Speed	J102
6MHz	Closed
8MHz	Open

NPU SPEED SELECTION
Speed	J103
4.77MHz	Pins 1 & 2 closed
8MHz	Pins 2 & 3 closed

BIOS SELECTION
Type	J18
27128	Pins 1 & 2, 3 & 4 closed
27256	Pins 5 & 6, 7 & 8 closed

MISCELLANEOUS TECHNICAL NOTE

Note: This board has 6 16-bit slots and 2 8-bit slots.
