Processor	80286
Processor Speed	10MHz
Chip Set	Unidentified
Video Chip Set	None
Maximum Onboard Memory	1MB
Maximum Video Memory	None
Cache	None
BIOS	Unidentified
Dimensions	330mm x 218mm
I/O Options	None
NPU Options	80287

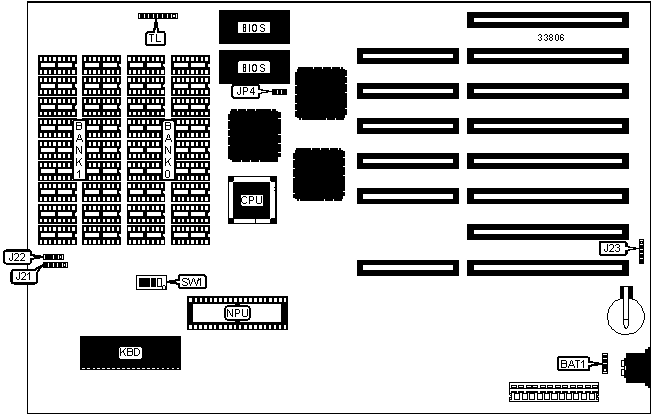

CONNECTIONS
Purpose	Location	Purpose	Location
External battery	BAT1	Turbo LED	TL pins 1 & 2
Power LED & keylock	J21	Turbo switch	TL pins 3 & 4
Speaker	J22	Ground	TL pins 5 & 6
Auxiliary keyboard connector	J23	Chassis fan power	TL pins 7 & 8

USER CONFIGURABLE SETTINGS
Function		Label	Position
	BIOS type select 27128	JP4	Pins 2 & 3 closed
	BIOS type select 27256	JP4	Pins 1 & 2 closed
»	Factory configured - do not alter	SW1/1	Unidentified
	Monitor type select color	SW1/2	On
	Monitor type select monochrome	SW1/2	Off

DRAM CONFIGURATION
Size	Bank 0	Bank 1
256KB	(18) 4164	None
512KB	(18) 41256	(18) 41256
640KB	(18) 41256	(18) 4164
1MB	(18) 411000	None

DRAM SWITCH CONFIGURATION
Size	SW1/3	SW1/4
256KB	On	On
512KB	Off	On
640KB	On	Off
1MB	Off	Off
