NIC Type	Token Ring
Boot ROM	Not available
Network Transfer Rate	4Mbps/16Mbps
Topology	Ring
Wire Type	Shielded/Unshielded twisted pair
Data Bus	32-bit PCI
Card Size	Full height, half length

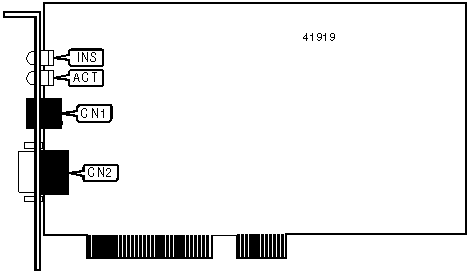

CONNECTIONS
Function	Label	Function	Label
UTP connector	CN1	STP connector	CN2

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
INS	Green	On	Network connection is good
INS	Green	Off	Network connection is broken
ACT	Yellow	On	Card is transmitting data
ACT	Yellow	Off	Card is not transmitting data
