NIC Type	Ethernet
Boot ROM	Available
Network Transfer Rate	10Mbps
Topology	Linear Bus/Star
Wire Type	Unshielded twisted pair AUI transceiver via DB-15 port RG-58A/U 50ohm coaxial
Data Bus	32-bit PCI
Card Size	Full height, half length

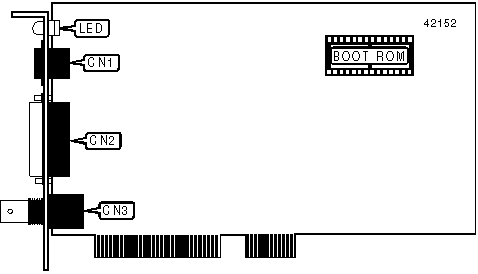

CONNECTIONS
Function	Label	Function	Label
UTP connector	CN1	RG-58A/U 50ohm coaxial connector	CN3
AUI transceiver via DB-15 port	CN2

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED	Unidentified	On	Network connection is good
LED	Unidentified	Off	Network connection is broken
