Card Type	Network Interface Card
NIC Type	Ethernet
Boot ROM	Not available
Network Transfer Rate	100 Mbps
Topology	Star
Wiring Type	Fiber optic cable
Data Bus	32-bit PCI

CONNECTIONS
Function	Label	Function	Label

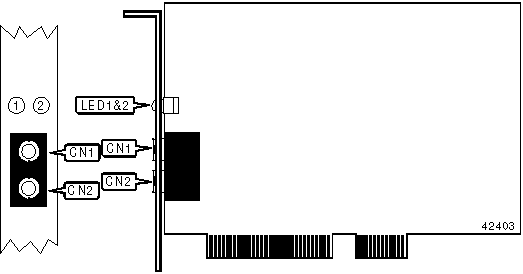

Fiber SC transmit connector	CN1	Fiber SC receive connector	CN2

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Green	On	Network connection good
LED1	Green	Off	No network connection
LED2	Yellow	Blinking	Data detected
LED2	Yellow	Off	No data detected
