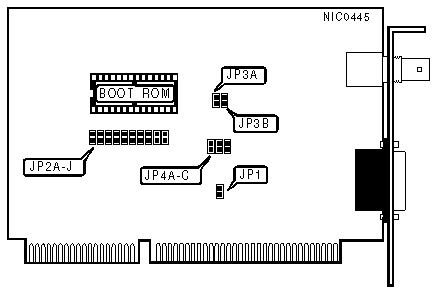

ADVANCED INTERLINK CORPORATION
AICETHER-16
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Linear bus |
|
Wiring Type |
RG-58A/U 50ohm coaxial AUI transceiver via DB-15 port |
|
Boot ROM |
Available |
|
COMPATIBILITY MODE |
||
|
Setting |
JP1 |
|
|
» |
Disabled |
Open |
|
|
Enabled |
Closed |
|
Note: On some systems the data bus timing is not truly IBM PC/AT compatible. If the card is not |
||
|
INTERRUPT REQUEST |
||||||||
|
IRQ |
JP2A |
JP2B |
JP2C |
JP2D |
JP2E |
JP2F |
JP2G |
|
|
|
2/9 |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
|
» |
3 |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
|
|
5 |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
|
|
10 |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
|
|
11 |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
|
|
12 |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
|
|
15 |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
|
I/O BASE ADDRESS |
|||
|
Address |
JP2I |
JP2J |
|
|
|
200h |
Closed |
Closed |
|
|
210h |
Closed |
Open |
|
» |
300h |
Open |
Closed |
|
|
310h |
Open |
Open |
|
CABLE TYPE |
|||
|
Type |
JP3A |
JP3B |
|
|
» |
RG-58A/U 50ohm coaxial |
Closed |
Closed |
|
|
AUI transceiver via DB-15 port |
Closed |
Closed |
|
BOOT ROM ADDRESS |
||
|
Address |
JP4A |
JP4B |
|
C800h |
Closed |
Closed |
|
CC00h |
Closed |
Open |
|
D800h |
Open |
Closed |
|
DC00h |
Open |
Open |
|
BOOT ROM |
||
|
Setting |
JP4C |
|
|
» |
Disabled |
Open |
|
|
Enabled |
Closed |
|
Note:Location of the boot ROM may vary on different revisions of this card. |
||
|
FACTORY CONFIGURED SETTINGS |
|
|
Jumper |
Setting |
|
JP2H |
Open |
