Card Type	ATM
Maximum network Rate	25.6Mbps
Topology	Linear Bus
Data Bus	16-bit ISA
Wiring Type	Unshielded twisted pair
Boot ROM	Not available

CONNECTIONS

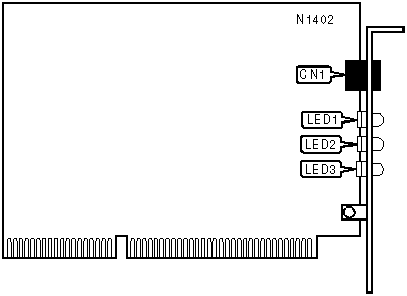

Function	Label
10Base-T port	CN1

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Red	On	Network connection is good
LED1	Red	Off	Network connection is broken
LED2	Green	Blinking	Data is being received
LED2	Green	Off	Data is not being received
LED3	Yellow	Blinking	Data is being transmitted
LED3	Yellow	Off	Data is not being transmitted
