Card Type	Ethernet Transceiver
Maximum Network Rate	10Mbps
Data Bus	AUI
Topology	Star
Wiring Type	Fiber optic

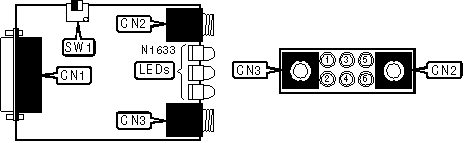

CONNECTIONS
Function	Label	Function	Label
AUI connector	CN1	SC fiber optic connector	CN3
SC fiber optic connector	CN2

USER CONFIGURABLE SETTINGS
Setting		Label	Position
»	Loopback test enabled	SW1/1	On
	Loopback test disabled	SW1/1	Off
»	Heartbeat function disabled	SW1/2	On
	Heartbeat function enabled	SW1/2	Off

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Green	On	Transceiver is receiving power
LED1	Green	Off	Transceiver is not receiving power
LED2	Green	On	Network connection is good
LED2	Green	Off	Network connection is broken
LED3	Green	On	Transceiver is receiving from network
LED3	Green	Off	Transceiver is not receiving from network
LED4	Green	On	Transceiver is transmitting to network
LED4	Green	Off	Transceiver is not transmitting to network
LED5	Yellow	On	Network jabber detected
LED5	Yellow	Off	Network jabber not detected
LED6	Yellow	On	Network collision detected
LED6	Yellow	Off	Network collision not detected
