ASANTE TECHNOLOGY, INC.
ASANTE NETEXTENDER HUB AUI, AAUI
|
Card Type |
Ethernet Transceiver |
|
Bus Type |
AUI or AAUI |
|
Maximum Network Rate |
10Mbps |
|
Topology |
Star |
|
Wiring Type |
Unshielded twisted pair (4) |
|

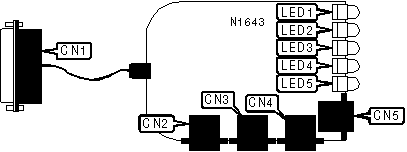

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
AUI or AAUI connector |
CN1 |
UTP port 3 |
CN4 |
|
UTP port 1 |
CN2 |
UTP port 4 |
CN5 |
|
UTP port 2 |
CN3 | ||
|
Note: Port 4 may be used to daisy-chain additional hubs. | |||
|
DIAGNOSTIC LED(S) | ||
|
LED |
Status |
Condition |
|
LED1 |
On |
Port 1 network connection is good |
|
LED1 |
Off |
Port 1 network connection is broken |
|
LED2 |
On |
Port 2 network connection is good |
|
LED2 |
Off |
Port 2 network connection is broken |
|
LED3 |
On |
Port 3 network connection is good |
|
LED3 |
Off |
Port 3 network connection is broken |
|
LED4 |
On |
Port 4 network connection is good |
|
LED4 |
Off |
Port 4 network connection is broken |
|
LED5 |
On |
Power is on |
|
LED5 |
Off |
Power is off |
