Card Type	Ethernet transceiver
Network Transfer Rate	10Mbps
Data Bus	AUI via DB-15 port
Topology	Linear Bus
Wire Type	RG-58A/U 50ohm coaxial

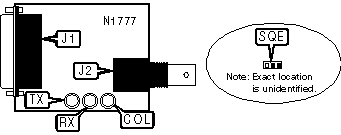

CONNECTIONS
Function	Label	Function	Label
AUI via DB-15 port	J1	RG-58A/U 50ohm coaxial connector	J2

USER CONFIGURABLE SETTINGS
Setting		Label	Position
»	SQE heartbeat disabled	SQE	Pins 2 & 3 closed
	SQE heartbeat enabled	SQE	Pins 1 & 2 closed

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
TX	Green	Blinking	Transceiver is transmitting data to the network
TX	Green	Off	Transceiver is not transmitting data to the network
RX	Green	Blinking	Transceiver is receiving data from the network
RX	Green	Off	Transceiver is not receiving data from the network
COL	Red	Blinking	Network collision detected
COL	Red	Off	Network collision not detected
