ACQUIRE COMPUTER SYSTEMS, INC.
ACS-101-25
|
Card Type |
Network Interface Card |
|
NIC Type |
FDDI |
|
Boot ROM |
Not available |
|
Chip Set |
AMD |
|
Network Transfer Rate |
100Mbps |
|
Topology |
Peer-Peer |
|
Wiring Type |
Fiber Optic cable, unshielded twisted pair |
|
Data Bus |
32-bit PCI |
|

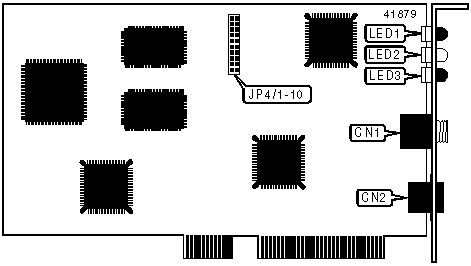

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Fiber Optic connector |
CN1 |
Unshielded twisted pair |
CN2 |
|
Unidentified |
CN3 | ||
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Green |
On |
Network connection is good |
|
LED1 |
Green |
Off |
Network connection is broken |
|
LED2 |
Yellow |
On |
Primary ring is functioning |
|
LED2 |
Yellow |
Off |
Secondary ring is functioning |
|
LED3 |
Red |
On |
Network connection is broken |
|
LED3 |
Red |
Off |
Network connection is good |
|
INTERRUPT SELECT | ||||||||
|
IRQ |
JP4 |
JP5 |
JP6 |
JP7 |
JP8 |
JP9 |
JP10 | |
|
IRQ3 |
Open |
Open |
Open |
Open |
Open |
Open |
Closed | |
|
IRQ5 |
Open |
Open |
Open |
Open |
Open |
Closed |
Open | |
| » |
IRQ7 |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
|
IRQ9 |
Open |
Open |
Open |
Closed |
Open |
Open |
Open | |
|
IRQ11 |
Open |
Open |
Closed |
Open |
Open |
Open |
Open | |
|
IRQ12 |
Open |
Closed |
Open |
Open |
Open |
Open |
Open | |
|
IRQ15 |
Closed |
Open |
Open |
Open |
Open |
Open |
Open | |
|
CABLE TYPE | |||
|
Type |
JP1 |
JP2 |
JP3 |
|
Fiber optic cable |
Open |
Closed |
Open |
|
Unshielded twisted pair |
Closed |
Open |
Closed |
