Card Type	Network Interface Card
NIC Type	Ethernet
Network Transfer Rate	10/100Mbps
Topology	Star
Wiring Type	RJ-45 Unshielded twisted pair
Data Bus	32-bit PCI

CONNECTIONS

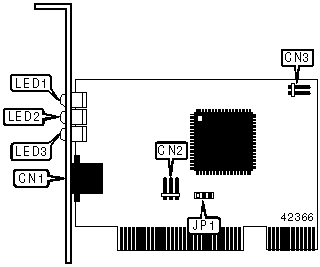

Function	Label	Function	Label
RJ45 connector	CN1	LAN activity LED connector	CN3
Wake on LAN power connector	CN2

USER CONFIGURABLE SETTINGS
Function	Label	Position
Motherboard type ASUS	JP1	Pins 1 & 2 closed
Motherboard type other	JP1	Pins 2 & 3 closed

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Green	On	UTP link is good
LED1	Green	Off	UTP link is broken
LED2	Yellow	On/Blinking	Data is being transmitted/received
LED2	Yellow	Off	Data is not being transmitted/received
LED3	Green	On	Network connection is good
LED3	Green	Off	Network connection is broken
