CABLETRON SYSTEMS, INC.
E6010/-X (Twisted pair)
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
32-bit NuBus (Apple) |
|
Topology |
Star |
|
Wiring Type |
Unshielded twisted pair AUI transceiver via DB-15 port |
|
Boot ROM |
Not Available |
|

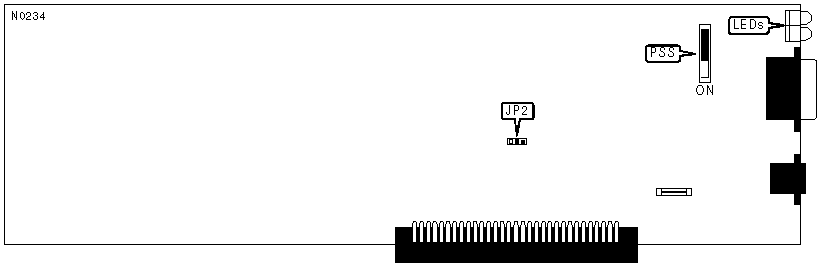

SIGNAL QUALITY ERROR (SQE) TEST | ||
|
Setting |
JP2 | |
| » |
Disabled |
Pins 2 & 3 Closed |
|
Enabled |
Pins 1 & 2 Closed | |
|
Note:Signal Quality Error (SQE) is a test of the collision circuitry and path. | ||
|
CABLE TYPE | ||
|
Type |
Switch PSS | |
| » |
Unshielded twisted pair |
On |
|
AUI transceiver via DB-15 port |
Off | |
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
1 |
Green |
On/Blinking |
Data is being transmitted |
|
1 |
Green |
Off |
Data is not being transmitted |
|
2 |
Red |
On/Blinking |
Collision detected on network |
|
2 |
Red |
Off |
Normal operation |
|
3 |
Yellow |
On/Blinking |
Data is being received |
|
3 |
Yellow |
Off |
Data is not being received |
|
4 |
Green |
On |
Twisted pair network connection is good |
|
4 |
Green |
Off |
Twisted pair network connection is broken |
