DANPEX CORPORATION
EN-2000PB/EN-2000PT/EN-2000P3
|
NIC Type: |
Ethernet |
|
Transfer Rate: |
10Mbps |
|
Data Bus: |
16-bit ISA |
|
Topology: |
Linear bus Star |
|
Wiring Type |
AUI transceiver via DB-15 port (EN-2000P3, EN-2000P) RG-58A/U 50ohm coaxial (EN-2000P3, EN-2000P) Shielded/Unshielded twisted pair (EN-2000P3, EN2000PT) |
|
Boot ROM |
Available |
|

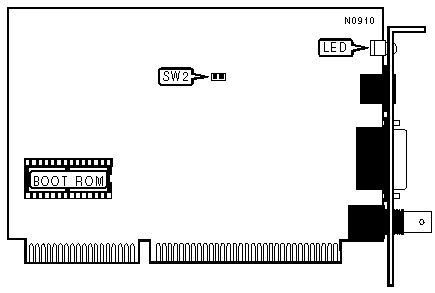

CONNECTIONS | |
|
Purpose |
Location |
|
External LED connector |
SW2 |
|
DIAGNOSTIC LEDS | ||
|
LED |
Status |
Condition |
|
LED1 |
On |
Network connection is good (UTP connection only) |
|
LED1 |
Off |
Network connection is broken |
|
LED2 |
On |
Data is being received or transmitted |
|
LED2 |
Off |
Data is not being received or transmitted |
|
LED1 exists on models EN-2000PT and EN-2000P3 only. | ||
