COMPATIBLE SYSTEMS CORPORATION
ETHER2 TWISTED PAIR
|
NIC Type |
Ethernet |
|
Transfer Rate |
10/100Mbps |
|
Data Bus |
NuBus |
|
Topology |
Linear Bus |
|
Wiring Type |
Unshielded twisted pair AUI Transceiver via DB-15 port |
|
Boot ROM |
Not available |
|

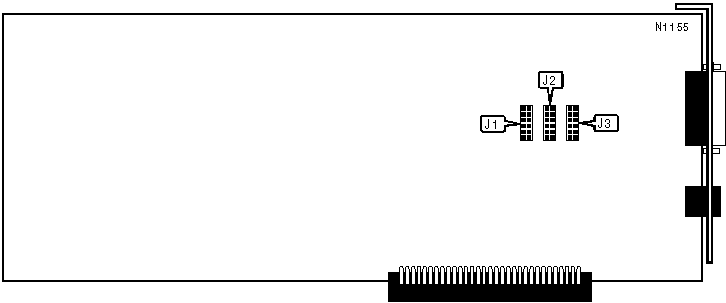

CABLE TYPE SELECTION | |||
|
Cable Type |
J1 |
J2 |
J3 |
|
Unshielded twisted pair |
Installed |
Not installed |
Not installed |
|
RG-58A/U 50ohm coaxial |
Not installed |
Installed |
Not installed |
|
AUI Transceiver via DB-15 port |
Not installed |
Not installed |
Installed |
