Card Type	Network Interface Card
NIC Type	Ethernet
Boot ROM	Available
Network Transfer Rate	10Mbps
Topology	Linear Bus, Star
Wiring Type	Unshielded twisted pair, RG-58A/U 50ohm coaxial
Data Bus	16-bit MCA

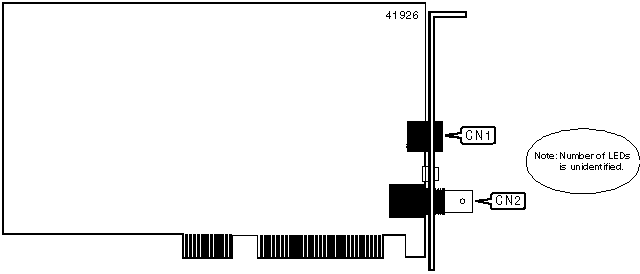

CONNECTIONS
Function	Label	Function	Label
Unshielded twisted pair	CN1	RG-58A/U 50ohm coaxial	CN2

MISCELLANEOUS TECHNICAL NOTES

Number and function of LED(s) is unidentified.
