Card Type	Network Interface Card
NIC Type	Ethernet
Network Transfer Rate	10Mbps
Topology	Linear Bus, Star
Wiring Type	Unshielded twisted pair AUI transceiver via DB-15
Data Bus	SCSI
Boot ROM	Not available

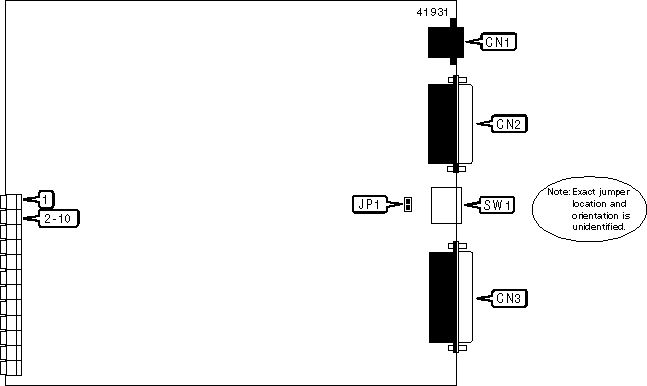

CONNECTIONS
Function	Label	Function	Label
Unshielded twisted pair	CN1	25-pin SCSI connector - external	CN3
AUI transceiver via DB-15	CN2
Note: 50-pin to 25-pin adapter cables are available.

USER CONFIGURABLE SETTINGS
SCSI ID	SW/1 Position
0	0
1	1
2	2
3	3
4	4
5	5
6	6
Invalid	7-9

CABLE TYPE SELECTION
Type	JP1
AUI transceiver via DB-15	Open
Unshielded twisted pair	Closed

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
1	Green	On	Receive data line polarity error
1	Green	Off	No receive data line polarity error
2	Green	Blinking	Data is being received
2	Green	Off	Data is not being received
3	Green	Blinking	Data is being received
3	Green	Off	Data is not being received
4	Green	Blinking	Data is being received
4	Green	Off	Data is not being received
5	Green	Blinking	Data is being received
5	Green	Off	Data is not being received
6	Green	Blinking	Data is being transmitted
6	Green	Off	Data is not being transmitted
7	Green	Blinking	Data is being transmitted
7	Green	Off	Data is not being transmitted
8	Green	Blinking	Data is being transmitted
8	Green	Off	Data is not being transmitted
9	Green	Blinking	Data is being transmitted
9	Green	Off	Data is not being transmitted
10	Green	On	10BaseT link test successful
10	Green	Off	10BaseT link test unsuccessful
Note: When data is being received, LEDs 2 through 5 will light in sequence. When data is being transmitted, LEDs 9 through 6 will light in sequence.
