Card Type	Network adapter card
NIC Type	ATM
Maximum Onboard Memory	Unidentified
Boot ROM	Not available
Network Transfer Rate	155Mbps
Topology	Star
Wiring Type	Fiber optic cable
Data Bus	32-bit PCI

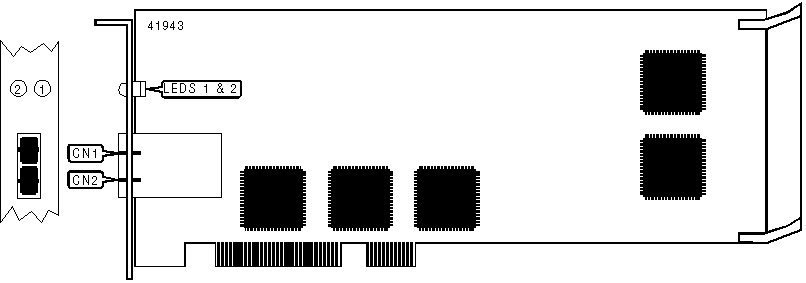

CONNECTIONS
Function	Label	Function	Label
Fiber optic connector (SC)	CN1	Fiber optic connector (SC)	CN2

DIAGNOSTIC LEDS
LED 1	LED 2	Condition
Off	Off	Power is not being received or ARM works driver is not loaded
Green	Any status	ATM works driver is loaded. Module status OK
Amber	Amber	Adapter is in reset mode
Amber	Off	Diagnostics failed
Green/Off	Green	Network connection is good
Green/Off	Amber	Network connection is broken
Note: LED 1 is the module status indicator. LED 2 is the network status indicator. LEDs are on when displaying a color.
