Card Type	Network adapter card
NIC Type	Ethernet
Maximum Onboard Memory	Unidentified
Boot ROM	Available
Network Transfer Rate	2Mbps
Topology	Star
Wiring Type	Wireless
Data Bus	16-bit ISA

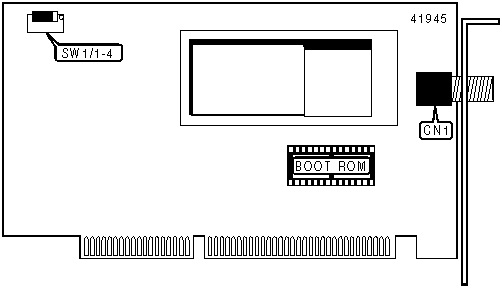

CONNECTIONS
Function	Label
Coaxial cable connector to antenna module	CN1

BOOT ROM ADDRESS SELECTION
Address		SW1/3	SW1/4
	C8000h	Off	On
	D0000h	On	Off
	D8000h	On	On
»	Disabled	Off	Off

BASE I/O ADDRESS SELECTION
Address		SW1/1	SW1/2
»	300h	Off	Off
	390h	Off	On
	3C0h	On	Off
	3E0h	On	On

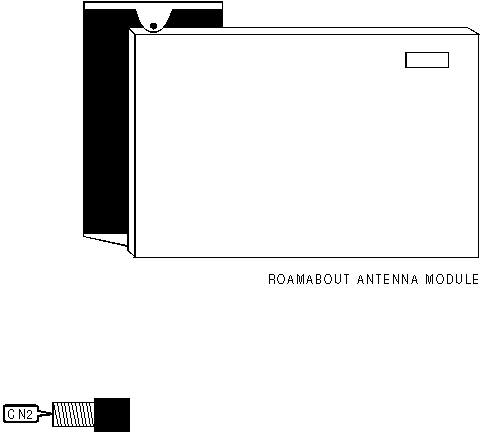

CONNECTIONS
Function	Label
Coaxial connector	CN2

MISCELLANEOUS TECHNICAL NOTES

Antenna should be placed as high as possible. Signal strength may be affected by proximity to metal surfaces and solid, high-density materials.
