COMPU-SHACK PRODUCTION, GMBH
CS-BASELINE-PCI UTP/COAX, CS-MORITZ-PCI UTP/COAX
|
Card Type |
Network Interface Card |
|
NIC Type |
Ethernet |
|
Maximum Onboard Memory |
Unidentified |
|
Boot ROM |
Available |
|
Network Transfer Rate |
10Mbps |
|
Topology |
Linear Bus, Star |
|
Wiring Type |
Unshielded twisted pair RG-58A/U 50ohm coaxial |
|
Data Bus |
32-bit PCI |
|

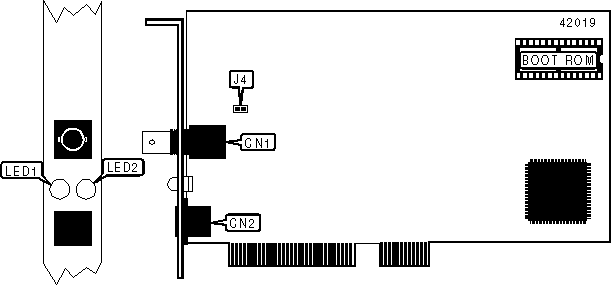

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
RG-58A/U connector |
CN1 |
UTP connector |
CN2 |
|
USER CONFIGURABLE SETTINGS | ||
|
Function |
Label |
Position |
|
50 Ohm termination activated |
J4 |
Closed |
|
50 Ohm termination not activated |
J4 |
Open |
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Green |
On |
UTP link is good |
|
LED1 |
Green |
Off |
UTP link is broken |
|
LED2 |
Yellow |
On |
Data is being transmitted/received |
|
LED2 |
Yellow |
Off |
Data is not being transmitted/received |
