Card Type	Network Interface Card
NIC Type	Ethernet
Boot ROM	Not available
Network Transfer Rate	100OMbps
Topology	Star
Wiring Type	Fiber optic cable
Data Bus	32-bit PCI/64-bit PCI

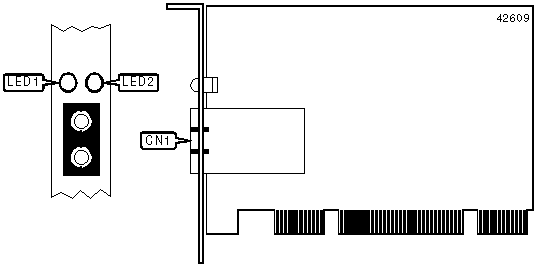

CONNECTIONS
Function	Label
Fiber optic (SC) connector	CN1

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Green	On	Network connection is good
LED1	Green	Off	Network connection is not good
LED1	Green	Blinking	Port has been disable by software
LED2	Amber	Blinking	Data is being received
LED2	Amber	Off	Data is not being received
